Запчасти Case IH 6140 (90.124.AN[01]) - VAR - 425187, 425555 - SEAT SUSPENSION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

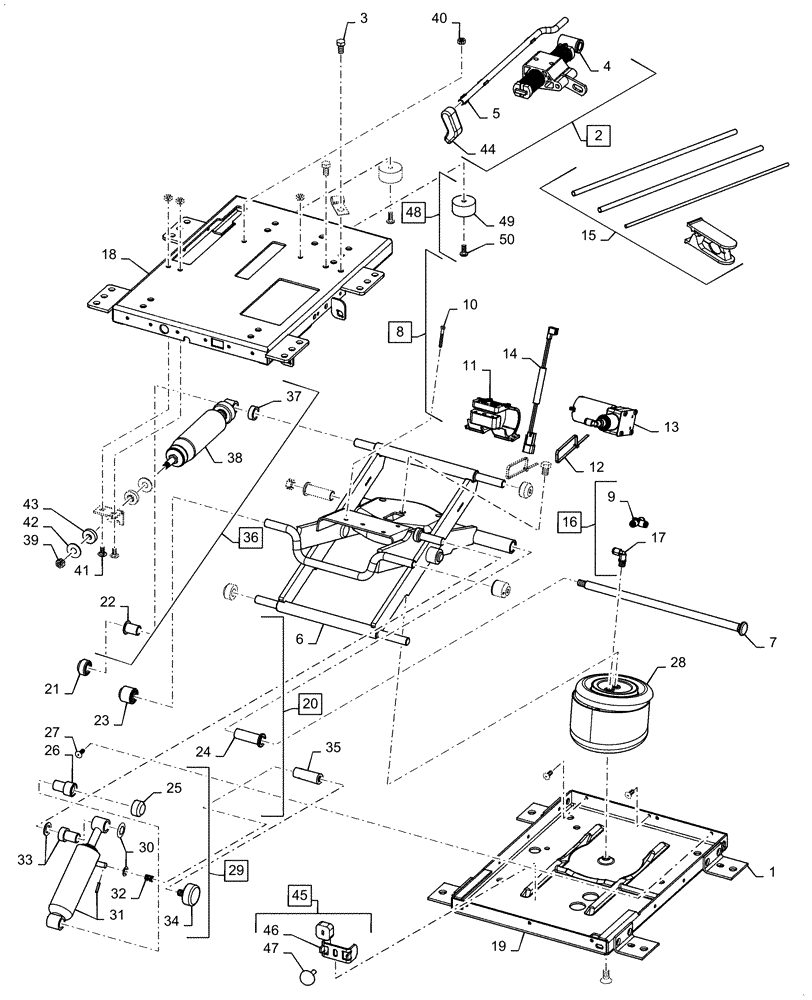

Схема запчастей Case IH 6140 - (90.124.AN[01]) - VAR - 425187, 425555 - SEAT SUSPENSION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
42
9
24
16
26
19
41
45
25
13
15
5
28
22
31
38
48
23
11
47
6
29
49
30
32
14
33
12
3
35
10
2
27
44
43
21
40
17
7
8
36
37
4
39
18
46
34
50
20

Артикул

Название

Примечание

Количество

1

47368655

SERVICE KIT

Slide Stop

1шт.

2

84244765

SERVICE KIT

Isolator Latch, Incl 3 - 5, 40, 44

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Isolator Assy, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Isolator Control Lever, Incl in 2

1шт.

6

1990643C1

FRAME ASSY

Scissor

1шт.

7

143786A1

SHAFT,308.9mm L

Bearing

1шт.

8

84427758

AIR COMPRESSOR KIT

Seat Suspension, Incl 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

Tube to Tube Fitting, Incl in 8, 16

1шт.

10

NSS

NOT SOLD SEPARAT

Bolt, Incl in 8

1шт.

11

NSS

NOT SOLD SEPARAT

Compressor Clamp, Incl in 8

1шт.

12

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 8

1шт.

13

NSS

NOT SOLD SEPARAT

Compressor, Incl in 8

1шт.

14

NSS

NOT SOLD SEPARAT

Harness, Incl in 8

1шт.

15

47368664

SERVICE KIT

Air Line Tubing

1шт.

16

47368666

SERVICE KIT

Air Line Fittings, Incl 9, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow Fitting, Incl in 16

1шт.

18

47368675

PLATE

Upper Housing

1шт.

19

47368682

SERVICE KIT

Lower Housing

1шт.

20

87347967

BEARING ASSY

Seat Kit, Incl 21 - 27

1шт.

21

NSS

NOT SOLD SEPARAT

Roller Assy, Incl in 20

1шт.

22

NSS

NOT SOLD SEPARAT

Isolator Bushing, Incl in 20

1шт.

23

NSS

NOT SOLD SEPARAT

Roller & Bearing, Incl in 20

1шт.

24

NSS

NOT SOLD SEPARAT

Bearing Tube, Incl in 20

1шт.

25

NSS

NOT SOLD SEPARAT

Roller, Incl in 20

1шт.

26

NSS

NOT SOLD SEPARAT

Bearing Sleeve, Incl in 20

1шт.

27

NSS

NOT SOLD SEPARAT

Clip, Incl in 20

1шт.

28

47368706

SERVICE KIT

Air Spring

1шт.

29

87475837

SERVICE KIT

Adjustment Shock Absorber, Incl 25, 30 - 34

1шт.

30

NSS

NOT SOLD SEPARAT

Retainer, Incl in 29

1шт.

31

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 29

1шт.

32

NSS

NOT SOLD SEPARAT

Spring, Incl in 29

1шт.

33

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 29

1шт.

34

87347974

SERVICE KIT

Seat Adjustment Damper Knob

1шт.

35

47368724

SERVICE KIT

Shock Knob

1шт.

36

227546A1

KIT

Isolator Shock, Incl 22, 37 - 43

1шт.

37

NSS

NOT SOLD SEPARAT

Spacer, Incl in 36

1шт.

38

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 36

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

1шт.

40

231-1444

NUT,1/4"-20, GB

2шт.

41

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

43

A49679

BUSHING

Shock Absorber

2шт.

44

84189454

SEAT ACCESSORY

Seat Control Knob

1шт.

45

84603019

KIT

Bumper, Incl 46, 47

1шт.

46

NSS

NOT SOLD SEPARAT

Bumper Bracket, Incl in 45

1шт.

47

NSS

NOT SOLD SEPARAT

Bumper, Incl in 45

1шт.

48

84482049

KIT

Bumper, Incl 49, 50

1шт.

49

NSS

NOT SOLD SEPARAT

Bumper, Incl in 48

1шт.

50

NSS

NOT SOLD SEPARAT

Bolt, Incl in 48

1шт.

Выбрано товаров: 50
