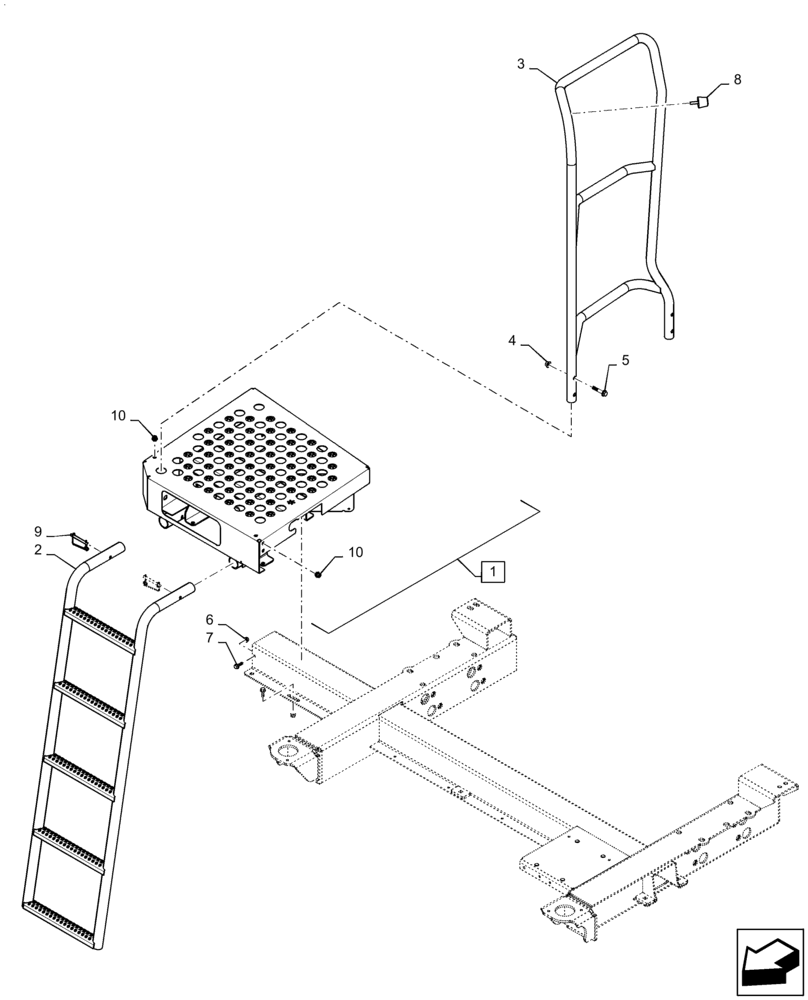

Запчасти Case IH 6140 (90.118.AC[03]) - PLATFORM, FRONT, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84579810

PLATFORM

RH Operators, Incl 10

1шт.

2

84555560

LADDER

RH Platform

1шт.

3

84566809

HANDRAIL

RH

1шт.

4

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

Flange

4шт.

5

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

7

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

8

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber, Door Stop

1шт.

9

1338021C1

PIN,7.94mm OD

Latch, Locking

2шт.

10

86610198

INSERT,M6 x 1

Nut, M6

10шт.
