Запчасти Case IH 6140 (90.105.BH[01]) - SIDE PANEL, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

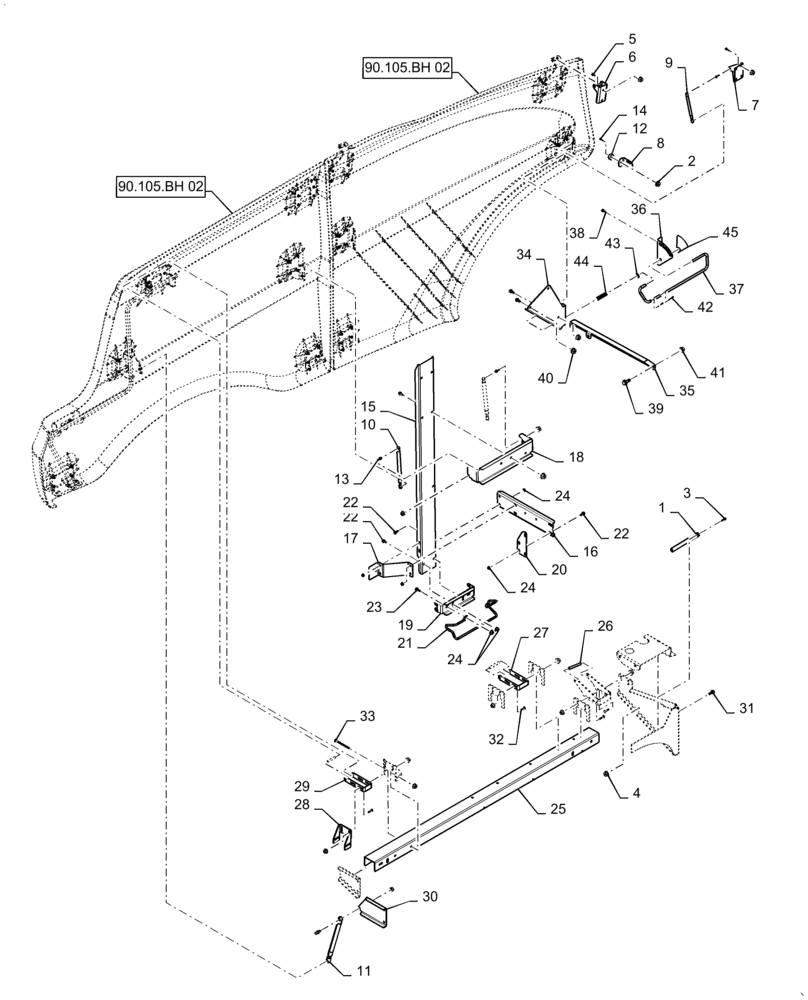

Схема запчастей Case IH 6140 - (90.105.BH[01]) - SIDE PANEL, BODY, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
17
29
90.105.bh 02
25
33
8
39
24
34
28
19
23
31
37
21
26
13
1
22
40
14
43
5
42
3
90.105.bh 02
9
44
45
4
6
32
20
27
7
12
36
22
16
2
10
35
38
30
18
11
24
15
24
41

Артикул

Название

Примечание

Количество

1

84398945

STRAP

Trim Panel Brace

1шт.

2

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

29шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

6

87663840

BRACKET

LH Front Hinge

1шт.

7

87663897

BRACKET

Gas Spring, LH Front Panel

1шт.

8

87671843

BRACKET

Bumper

1шт.

9

87688426

GAS STRUT

250N

1шт.

10

87757843

GAS STRUT

700N

2шт.

11

87690981

GAS STRUT

500N

1шт.

12

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

1шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

15

47776076

CHANNEL

Trim Panel Latch

1шт.

16

84475121

CHANNEL

Side Sheet Rear, LH

1шт.

17

87757249

SUPPORT

Channel

1шт.

18

84579046

BRACKET

Strut Mounting, LH Trim Panel

1шт.

19

84136668

BRACKET

Latch, LH Trim Panel

1шт.

20

84160869

PLATE

Vertical Support Lower Mounting

1шт.

21

84149018

LATCH

Guard Rod

1шт.

22

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

22шт.

23

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

26шт.

25

47367198

CHANNEL

Hinge Mounting, LH Panels

1шт.

26

84155744

HINGE

Front Panel

1шт.

27

84155739

HINGE

Rear Panel

1шт.

28

84156192

PANEL SUPPORT

Rear Hinge

2шт.

29

84155736

FIXED HINGE

Rear Panel

1шт.

30

84156195

BRACKET, SUPPORTING

Rear Strut

1шт.

31

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

3шт.

32

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

12шт.

33

84188427

CARRIAGE BOLT,Short Sq Nk, M10 x 1.5 x 130mm, Cl 10.9

2шт.

34

84158421

BRACKET, SUPPORTING

Front Transport Lock

1шт.

35

84158468

BRACKET, SUPPORTING

Angle, Front Transport Lock

1шт.

36

87700648

BRACKET

Latch

1шт.

37

87470712

ROD

Transport Lock Latch

1шт.

38

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

39

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

40

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

41

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

42

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

43

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

44

192216A1

SPRING

Safety Stand Rod

1шт.

45

87479419

DECAL

Trim Panel Lock, LH

1шт.

Выбрано товаров: 45
