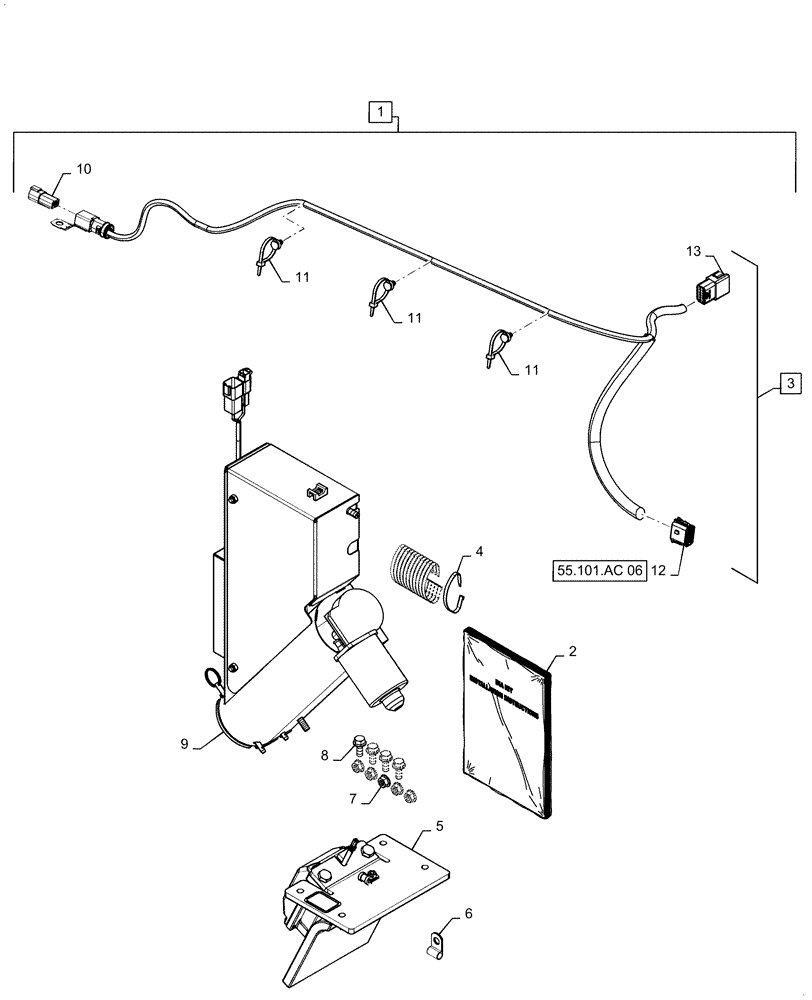

Запчасти Case IH 6140 (88.100.55[08]) - DIA KIT, MOISTURE SENSOR & YIELD MONITOR (88) - ACCESSORIES

1

47921715

KIT

Yield & Moisture Sensor, Incl 2 - 9

1шт.

2

47676864

INSTRUCTION

Sheet

1шт.

3

47628710

WIRE HARNESS

CAN Flow Sensor, Incl 10 - 13

1шт.

4

473321C1

CABLE TIE,8" OAL x 0.098" W

12шт.

5

47855247

SENSOR

Mass Flow

1шт.

5

47855247R

REMAN-SENSOR

Mass Flow

1шт.

5

47855247C

CORE-SENSOR

Return number

1шт.

6

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

9

47599786

SENSOR

Midrange Moisture Bypass

1шт.

10

87695914

CONNECTION,ELECTRIC

Flow Sensor (Yield), X-250

1шт.

10

87695623

ELEC. TERMINAL PIN

Flow Sensor (Yield), X-250

4шт.

10

84256996

WIRE CONNECTOR

Back Shell, Flow Sensor (Yield), X-250

1шт.

10

87694145

ELEC CONNECTOR

Lock, Flow Sensor (Yield), X-250

1шт.

11

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

12

87696130

ELEC CONNECTOR,Female, 12 Cavities

to RH Main Harness, X-173

1шт.

12

84068583

PLUG,12 - 16 Ga, White

to RH Main Harness, X-173

2шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

to RH Main Harness, X-173

10шт.

12

87695651

LOCKING TAB,Wedge Lock

to RH Main Harness, X-173

1шт.

13

87700152

ELEC CONNECTOR,Female, 12 Cavities

Connector, Integrated GPS Antenna/Receiver, X-173B

1шт.

13

87695623

ELEC. TERMINAL PIN

Integrated GPS Antenna/Receiver, X-173B

8шт.

13

84068583

PLUG,12 - 16 Ga, White

Integrated GPS Antenna/Receiver, X-173B

4шт.

13

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, Integrated GPS Antenna/Receiver, X-173B

1шт.
