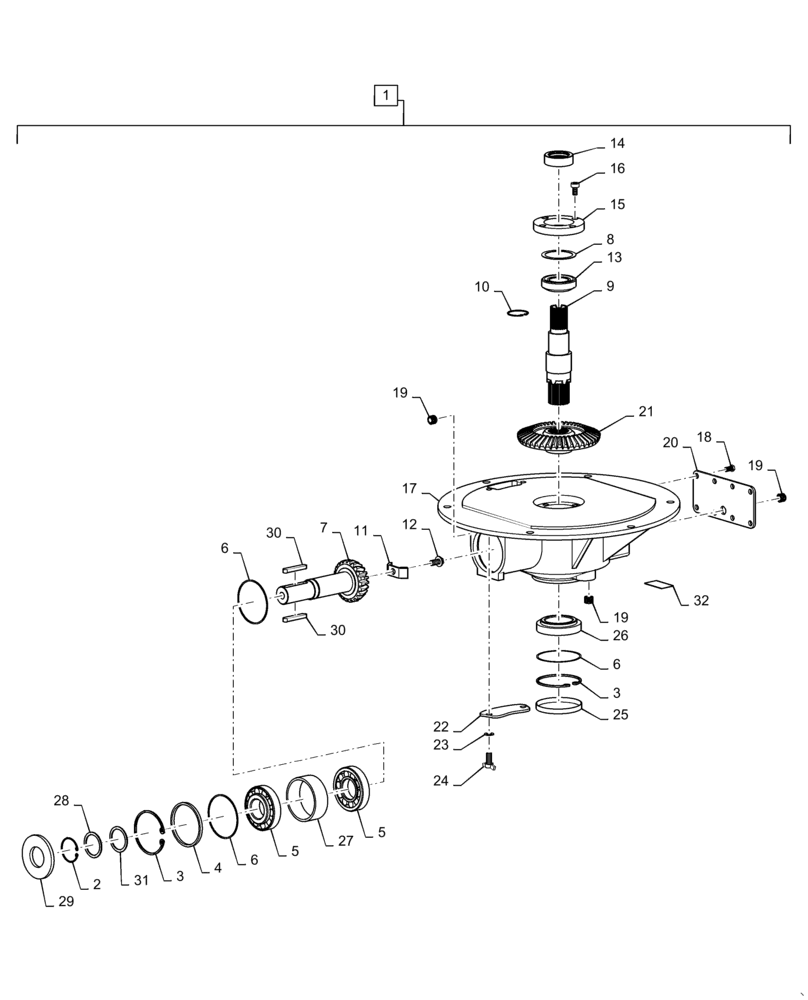

Запчасти Case IH 6140 (80.180.AR) - VAR - 425312, 425329, 722983, 425077, 425313, 425330, 425078, 425314, 722740 - UNLOADING TUBE LOWER GEARBOX (80) - CROP STORAGE/UNLOADING

1

84320052

GEARBOX

Unloader Lower, Incl 2 - 32

1шт.

2

440442

SNAP RING,M40 x 2.5mm Thk, External

1шт.

3

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

4

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

1шт.

5

86613758

BEARING ASSY,40mm ID x 90mm OD x 25.25mm W

Tapered Roller

2шт.

6

86623216

SHIM

Bearing

3шт.

7

86623217

SHAFT

Bevel Pinion

1шт.

8

86623218

SHIM KIT

55.3mm x 67.7mm

1шт.

9

86623219

SHAFT

Vertical

1шт.

10

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

11

86623220

PLATE

Blade

1шт.

12

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

13

86626475

BEARING ASSY,40mm ID x 68mm OD x 19mm W

Tapered Roller

1шт.

14

86623221

RUBBER SEAL,38.9mm ID x 60mm OD x 18.5mm Thk

Vertical Shaft

1шт.

15

86623222

FLANGE

Cover

1шт.

16

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

4шт.

17

86623223

HOUSING

Casing

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

19

9837623

PLUG

Drain

3шт.

20

86623224

COVER

Rear Inspection

1шт.

21

86623225

BEVEL PINION

Gear

1шт.

22

86623226

COVER

Top

1шт.

23

9511037

SEAL

Washer

2шт.

24

412049

SCREW,M10 x 16mm

2шт.

25

86623227

COVER

Cap

1шт.

26

853116

TAPERED BEARING

Lower

1шт.

27

86623228

SPACER,81mm ID x 89.8mm OD x 33mm OAL

1шт.

28

86623229

SHIM KIT

Rule Plate

1шт.

29

86623230

RUBBER SEAL

Front Shaft

1шт.

30

170013

KEY

Retaining

2шт.

31

86623231

SHIM,17.2mm ID x 24.9mm OD x 0.3mm Thk

Front

1шт.

32

NSS

NOT SOLD SEPARAT

Identity Plate, Incl in 1

1шт.
