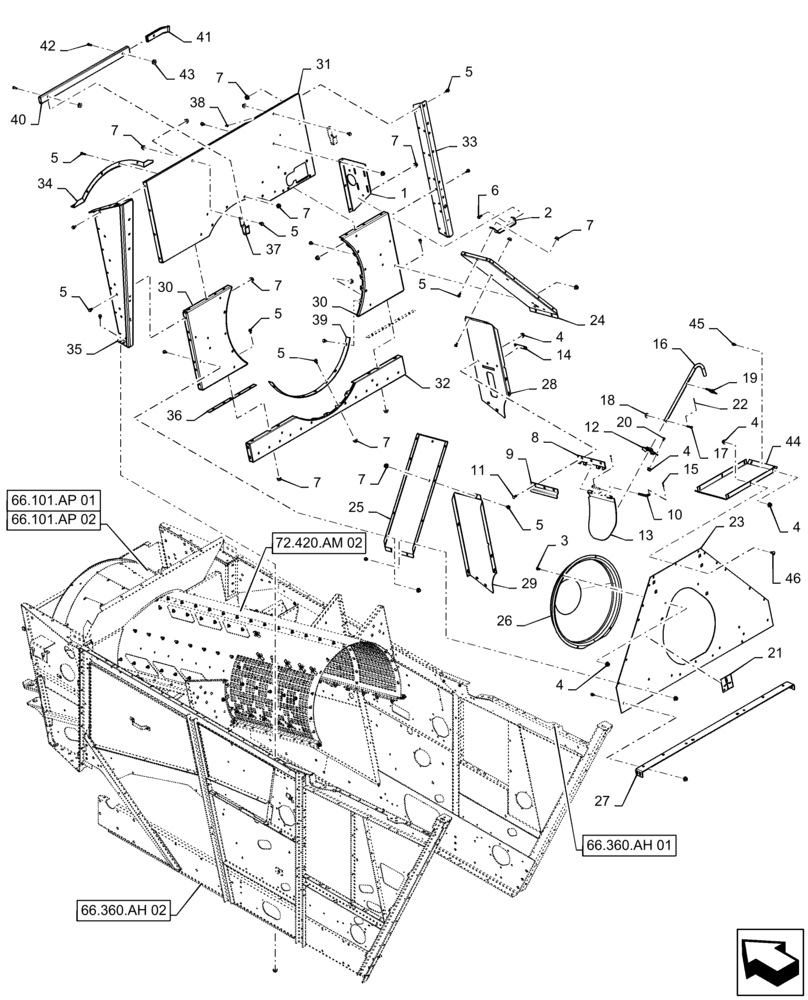

Запчасти Case IH 6140 (72.420.AM[01]) - ROTOR CAGE REAR SUPPORT (72) - SEPARATION

1

87393443

SUPPORT ASSY.

Speed Adjust Rotor Drive, LH

1шт.

2

87393444

SUPPORT ASSY.

Strap, Rotor Speed Adjust Motor, LH

1шт.

3

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

28шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

41шт.

5

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

71шт.

6

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

90шт.

8

87325654

HINGE

Plate

1шт.

9

87726083

WEAR PLATE

Hinge

1шт.

10

87325655

PIN,9.53mm OD x 91.8mm OAL

2шт.

11

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

3шт.

12

47809368

SUPPORT

Discharge Handle

1шт.

13

47600189

DOOR

Discharge Deflector

1шт.

14

87726088

STRAP

Retaining

1шт.

15

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

16

47801210

HANDLE

Discharge Deflector

1шт.

17

353216

CLEVIS PIN,8mm OD x 45mm L

1шт.

18

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

19

647695

PIN,7.94mm OD

1шт.

20

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.

21

87728707

DECAL

Deflector Assy

1шт.

22

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

23

87704303

PLATE

Rotor Discharge, Rear

1шт.

24

47806813

COVER

Discharge Side, RH

1шт.

25

193393C1

COVER

Discharge Side, LH

1шт.

26

87619898

COVER

Gearbox 8 Bolt Coupler

1шт.

27

87757151

ANGLE

Engine Deck Support, Front

1шт.

28

47806817

DEFLECTOR

Discharge, RH

1шт.

29

47806815

DEFLECTOR

Discharge, LH

1шт.

30

191269C4

SUPPORT

Rotor Cage, Rear

2шт.

31

47762195

PAN

Rotor, Rear, Upper

1шт.

32

182931C1

SUPPORT

Lower Cage, Rear

1шт.

33

47579039

SUPPORT

Rear Vertical Gate, RH

1шт.

34

1308696C1

SUPPORT

Upper Cage, Rear

1шт.

35

47578974

SUPPORT

Rear Vertical Gate, LH

1шт.

36

182895C1

FILLER

Bulkhead, Rear

2шт.

37

84138793

CLIP

Rocking Wrench

2шт.

38

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

5шт.

39

182950C1

SUPPORT

Cage Filler Strip

1шт.

40

87519770

IDLER LEVER

Handle Rocking Wrench

1шт.

41

1979751C2

BAR

Rotor Rocker

1шт.

42

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

43

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

44

193170C1

COVER

Discharge Top Cover

1шт.

45

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

46

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

1шт.
