Запчасти Case IH 6140 (55.426.AL[01]) - VAR - 425467, 425471, 425472, 425494 - WIRE HARNESS, GRAIN TANK COVER (55) - ELECTRICAL SYSTEMS

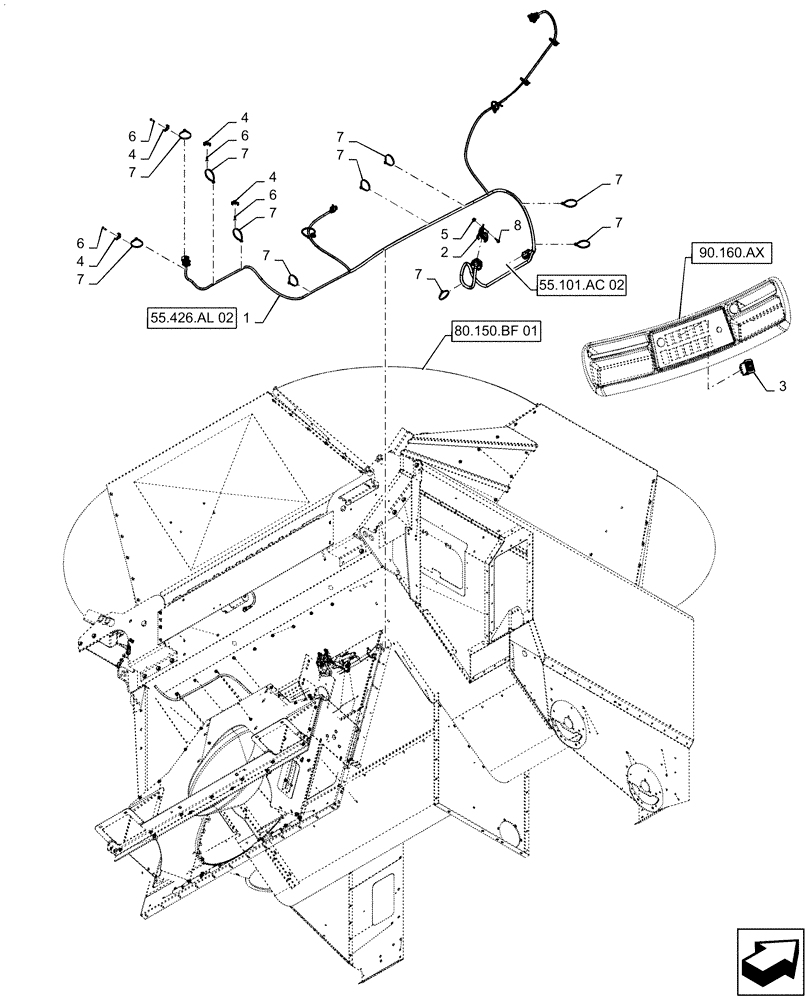

Схема запчастей Case IH 6140 - (55.426.AL[01]) - VAR - 425467, 425471, 425472, 425494 - WIRE HARNESS, GRAIN TANK COVER (55) - ELECTRICAL SYSTEMS
80.150.bf 01
7
6
4
6
7
7
7
7
4
4
4
1
7
8
6
7
3
2
6
7
5
7
7
55.426.al 02
55.101.ac 02
90.160.ax

Артикул

Название

Примечание

Количество

1

47750700

WIRE HARNESS

Grain Tank Covers

1шт.

2

86508603

RELAY,12V

Sealed Skirt

1шт.

3

84370691

SWITCH ASSY

Rocker, Grain Tank Covers

1шт.

4

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

5

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

6

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

7

86566989

CABLE TIE,208mm L

11шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1шт.

Выбрано товаров: 8
