Запчасти Case IH 6140 (55.302.AK) - BATTERY BOX SUPPORT (55) - ELECTRICAL SYSTEMS

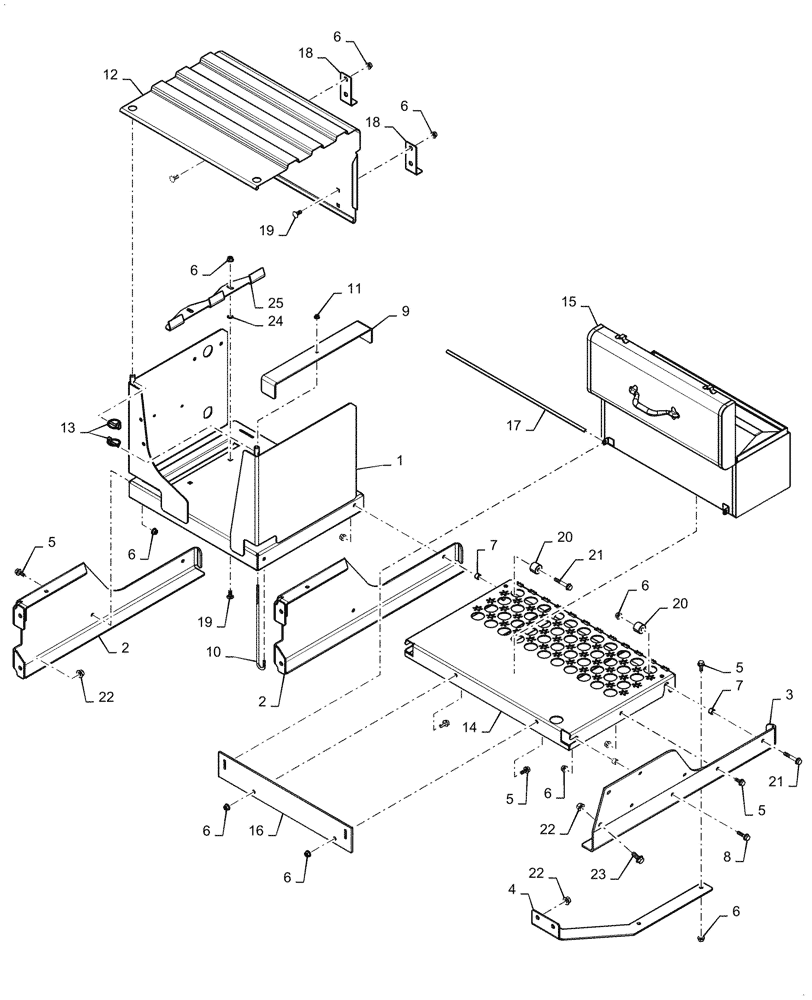

Схема запчастей Case IH 6140 - (55.302.AK) - BATTERY BOX SUPPORT (55) - ELECTRICAL SYSTEMS
6
1
22
6
14
25
22
21
6
5
2
18
4
7
5
6
5
6
6
19
5
20
19
9
24
22
12
6
8
2
7
6
13
16
15
21
23
10
3
11
18
6
17
20

Артикул

Название

Примечание

Количество

1

48015757

SUPPORT

Battery Box Platform

1шт.

2

48015762

BRACKET

Battery Platform, Rear

2шт.

3

48015765

BRACKET

Battery Platform, Front

1шт.

4

47607077

SUPPORT

Battery Platform

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

17шт.

7

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

4шт.

8

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

9

47501397

CLAMP

Battery Hold Down

1шт.

10

47501436

BOLT

Battery Strap

1шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

12

47757144

COVER

Battery Box

1шт.

13

A33497

LINCH PIN,4.76mm OD Pin

2шт.

14

48015768

PLATFORM

Removable

1шт.

15

87613832

TOOL BOX

Accessory

1шт.

16

87608675

PLATE ASSY.

Battery and Tool Box

1шт.

17

397115A2

TUBE,7.94mm OD x 520mm OAL

Tool Box Retainer

1шт.

18

87608663

SECURING STRAP

Battery Box Cover

2шт.

19

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

20

47597527

BUSHING

Step Support

2шт.

21

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

22

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

23

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

24

84359103

NUT,Push On, M8

2шт.

25

47896937

SHEET

Battery Retaining

1шт.

Выбрано товаров: 25
