(55.101.AC[05]) - WIRE HARNESS, FRAME, FRONT AXLE, BRAKE VALVE

Запчасти Case IH 6140 (55.101.AC[05]) - WIRE HARNESS, FRAME, FRONT AXLE, BRAKE VALVE (55) - ELECTRICAL SYSTEMS

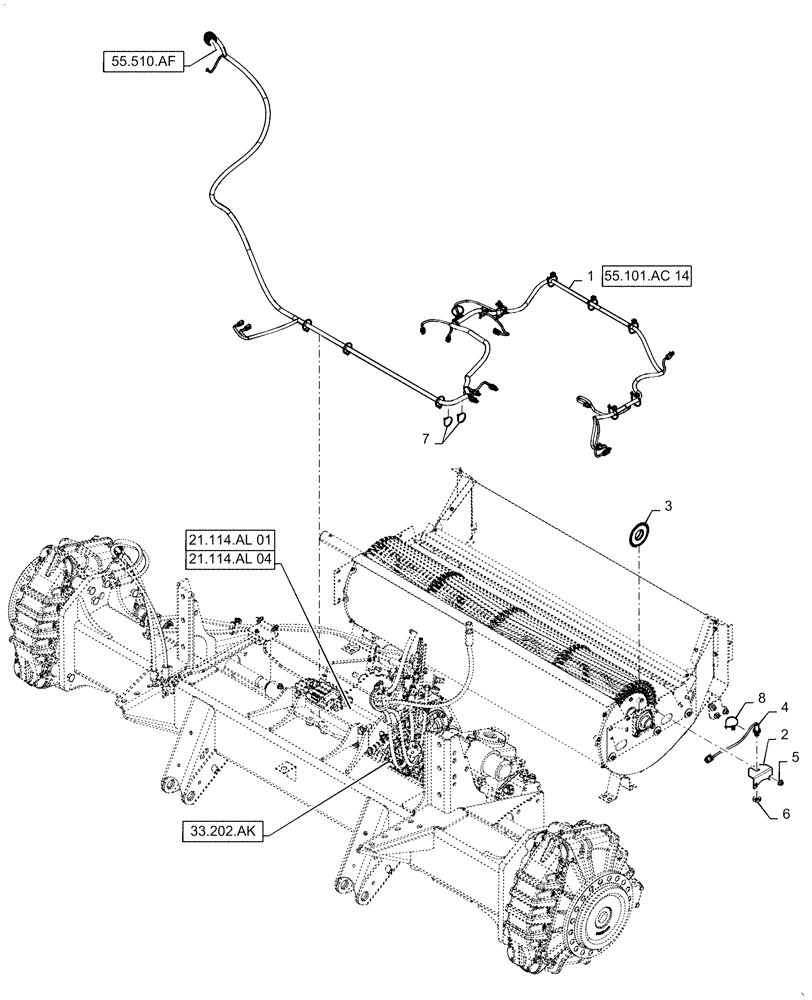

Схема запчастей Case IH 6140 - (55.101.AC[05]) - WIRE HARNESS, FRAME, FRONT AXLE, BRAKE VALVE (55) - ELECTRICAL SYSTEMS
55.510.af
3
6
5
7
8
1
2
4
55.101.ac 14
33.202.ak
21.114.al 01
21.114.al 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47881613

WIRE HARNESS

Front Lower

1шт.

2

1541554C1

SUPPORT

Speed Tach Magnetic Pickup

1шт.

3

1541555C1

SPROCKET

Speed Pickup, Cleaning Fan

1шт.

4

245193C2

SENSOR

Speed

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

7

86566989

CABLE TIE,208mm L

3шт.

8

87694057

CABLE TIE,200mm L

1шт.

Выбрано товаров: 8
