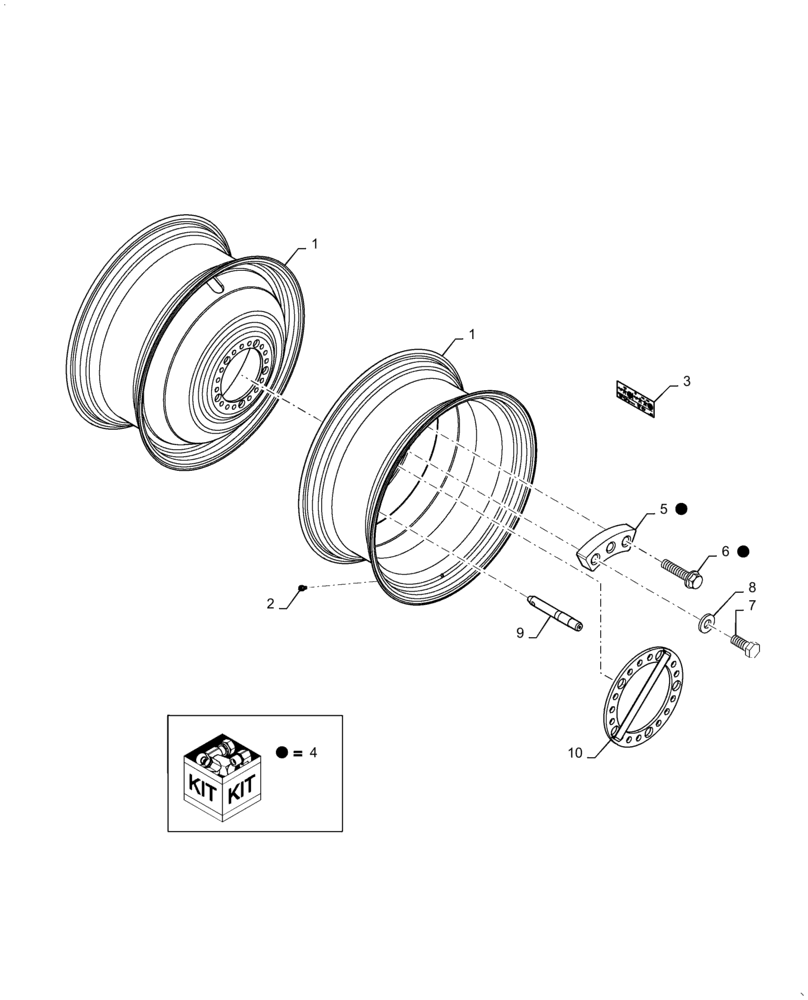

Запчасти Case IH 6140 (44.520.AB[02]) - VAR - 8372108, 8301218, 8301208, 8300528, 8300198, 8300168, 8300098, 8300088, 8300078, 8300028 - DUAL DRIVE WHEEL ASSY (44) - WHEELS

1

84229717

WHEEL ASSY

32 x DWM44, Silver, VAR - 8372108

4шт.

1

87386315

WHEEL ASSY.

42 x DD16, Silver, VAR - 8301218, 8301208

4шт.

1

47615189

WHEEL ASSY

42 x DD18, Silver, VAR - 8300528, 8300198, 8300168

4шт.

1

87386313

RIM

Wheel, 42 x DD18, Silver, VAR - 8300098, 8300088, 8300078

4шт.

1

87386310

WHEEL ASSY

38 x W18A, Silver, VAR - 8300028

4шт.

2

86997685

TIRE TUBE

Valve, VAR - 8372108

4шт.

2

395448

VALVE STEM

VAR - 8301218, 8301208, 8300528, 8300198, 8300168, 8300098, 8300088, 8300078, 8300028

4шт.

3

87570139

DECAL

Wheel Torque, VAR - 8372108

8шт.

3

47448362

WARNING DECAL

Wheel Torque, VAR - 8301218, 8301208, 8300528, 8300198, 8300098, 8300088, 8300078, 8300028

8шт.

4

87327483

SERVICE KIT

Fixation, VAR - 8372108, Incl 5, 6

1шт.

4

87342970

SERVICE KIT

Fixation, VAR - 8301218, 8301208, 8300528, 8300168, 8300098, 8300088, 8300078, 8300028, Incl 5, 6

1шт.

4

47457484

SERVICE KIT

Fixation, VAR - 8300198, Incl 5, 6, 10

1шт.

5

87598803

PLATE

Wheel Mount, VAR - 8372108

10шт.

5

87327940

PLATE

Wheel Mount, VAR - 8301218, 8301208, 8300528, 8300198, 8300168, 8300098, 8300088, 8300078, 8300028

10шт.

6

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

VAR - 8372108

30шт.

6

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

VAR - 8301218, 8301208, 8300528, 8300198, 8300168, 8300098, 8300088, 8300078, 8300028

30шт.

7

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

10шт.

8

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

Wheel Mount

10шт.

9

84349242

STUD

Wheel Starter, VAR - 8372108, 8301208, 8300528, 8300198, 8300168, 8300098, 8300088, 8300078, 8300028

2шт.

10

87280385

SPACER

Ring, VAR - 8300198

2шт.
