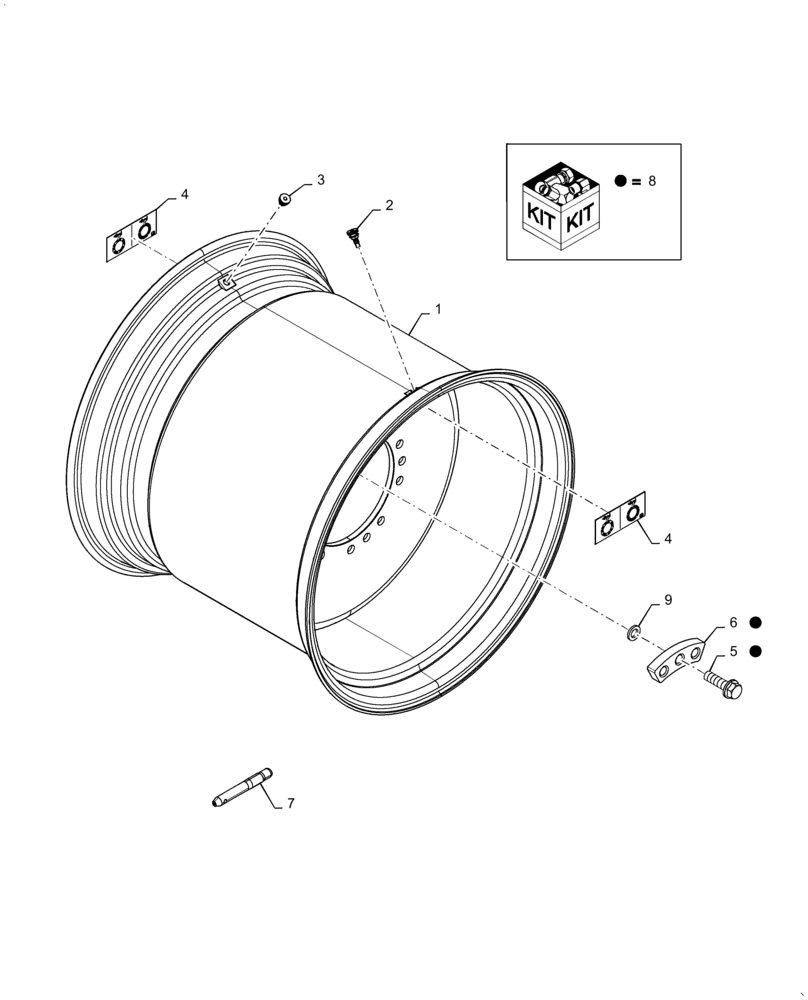

Запчасти Case IH 6140 (44.520.AB[01]) - VAR - 8398008, 8368008, 8300298, 8365008, 8358009, 8300318, 8367008, 8300048, 8306078, 8301318, 8300308, 8300798, 8300378, 8300218 - SINGLE DRIVE WHEEL ASSY (44) - WHEELS

1

84242005

WHEEL ASSY.

32 x DW21A, Silver, VAR - 8398008

2шт.

1

84216133

WHEEL ASSY

32 x DW30B, Silver, VAR - 8368008, 8300298, 8365008, 8358009, 8300318

2шт.

1

84240261

WHEEL ASSY.

32 x DW27B, Silver, VAR - 8367008, 8300048, 8306078, 8301318, 8300308

2шт.

1

84303080

WHEEL ASSY

38 x F-DW27B, Silver, VAR - 8300798, 8300378

2шт.

1

84229717

WHEEL ASSY

32 x DWM44, Silver, VAR - 8300218

2шт.

2

87106339

VALVE STEM

VAR - 8398008, 8368008, 8300298, 8365008, 8358009, 8300318, 8367008, 8300048, 8306078, 8301318, 8300308, 8300798, 8300378

2шт.

2

86997685

TIRE TUBE

Valve, VAR - 8300218

2шт.

3

87106340

PLUG

Valve Hole, VAR - 8398008, 8368008, 8300298, 8365008, 8358009, 8300318, 8367008, 8300048, 8306078, 8301318, 8300308, 8300798, 8300378

2шт.

4

87570139

DECAL

Single Wheel Torque

4шт.

5

87327478

BOLT,Flange, M22 x 75mm, Cl 12.9

30шт.

6

87598803

PLATE

Wheel Mount Spacer

5шт.

7

84349242

STUD

Wheel Starting

2шт.

7

748961

WHEEL NUT

2шт.

8

87327483

SERVICE KIT

Wheel Fixation, VAR - 8300218, Incl 5 - 6

1шт.

9

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

Wheel Mounting, VAR - 8300218

10шт.
