Запчасти Case IH 6140 (35.796.AF) - CHAFF SPREADER HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS

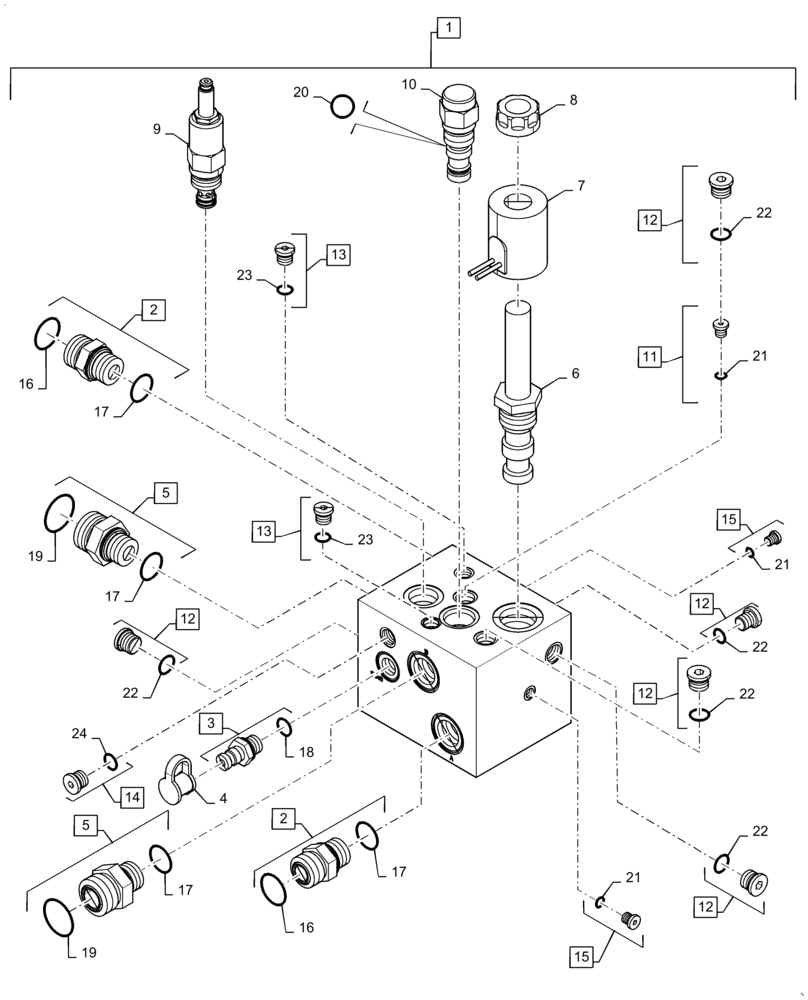

Схема запчастей Case IH 6140 - (35.796.AF) - CHAFF SPREADER HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS
17
7
2
4
13
8
22
12
16
22
12
5
15
13
22
21
21
12
6
21
15
1
22
19
12
3
18
9
22
17
17
17
19
11
20
23
14
10
23
12
16
5
24
2

Артикул

Название

Примечание

Количество

1

87482032

HYDRAULIC VALVE

Proportional Spreader, Incl 6 - 15

1шт.

2

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 16, 17

2шт.

3

84320565

COUPLING,M14 x 1.5

Incl 18

1шт.

4

86502604

DUST CAP

Diagnostic Connector

1шт.

5

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 17, 19

2шт.

6

84582096

FLOW CONTROL VALVE

Proportional

1шт.

7

87434005

COIL ASSY.

Proportional

1шт.

8

87435447

NUT

Solenoid

1шт.

9

299075A1

VALVE, PRESSURE RELI

Adjustable

1шт.

10

87031239

HYDRAULIC VALVE

Unloading

1шт.

11

87026245

ORIFICE

Incl 21

1шт.

12

9625178

PLUG,9/16" - 18 ORB

Incl 22

5шт.

13

278548

PLUG,Hex, 7/16"-20 ORB

Incl 23

2шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

Incl 24

1шт.

15

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 21

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

18

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

20

87024936

SEAL KIT

Unloading Valve

1шт.

21

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

3шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

24

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
