Запчасти Case IH 6140 (35.359.AB[01]) - HYDRAULIC SYSTEM, MAIN STACK VALVE (35) - HYDRAULIC SYSTEMS

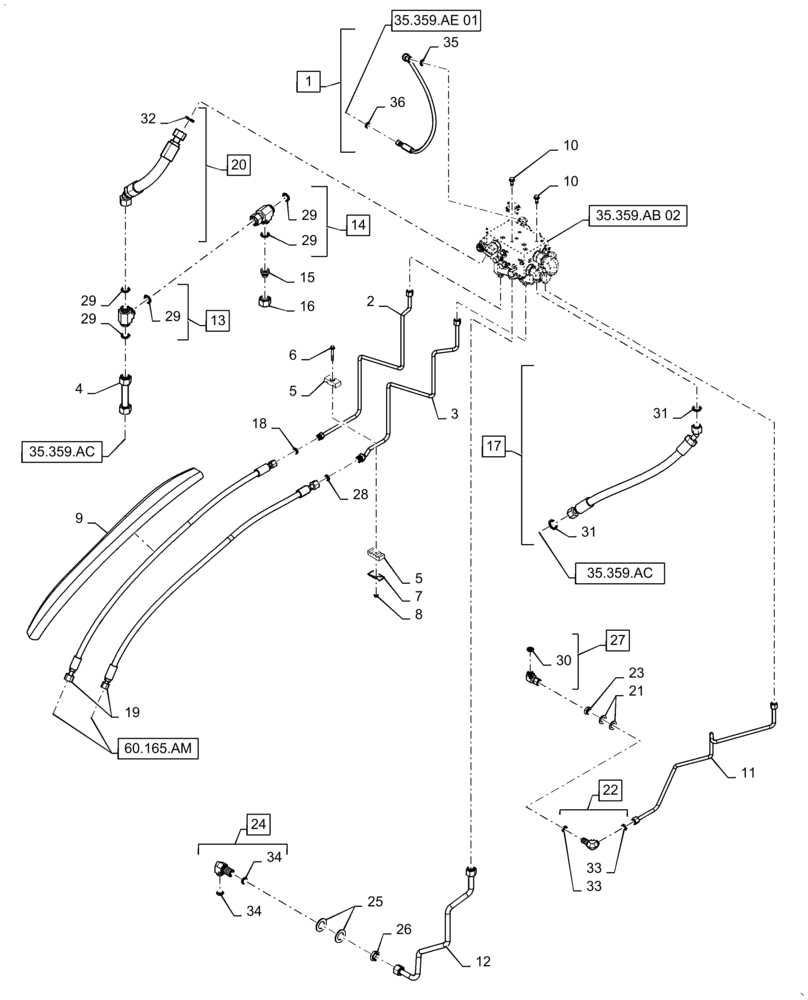

Схема запчастей Case IH 6140 - (35.359.AB[01]) - HYDRAULIC SYSTEM, MAIN STACK VALVE (35) - HYDRAULIC SYSTEMS
35
20
31
35.359.ac
9
34
36
28
15
5
35.359.ab 02
24
60.165.am
34
29
35.359.ae 01
23
2
19
6
29
30
29
14
27
1
33
32
7
13
10
35.359.ac
29
8
12
3
11
22
10
25
33
4
26
5
16
21
29
31
18
17

Артикул

Название

Примечание

Количество

1

84156309

HOSE ASSY.

Pump Signal, Incl 35, 36

1шт.

2

84518532

HYD TUBE

Reverser Return

1шт.

3

84350040

HYD TUBE

Reverser Supply

1шт.

4

84260113

HYD TUBE

Reel Return

1шт.

5

87000149

CLAMP

Hydraulic Tube

1шт.

6

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

7

87000230

PLATE

Cover

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

9

1324451C1

PROTECTIVE SLEEVE,40.4 mm ID x 914.50 mm

1шт.

10

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

11

84359760

HYD TUBE

Steer Supply

1шт.

12

84518535

HYD TUBE

Feeder Lift

1шт.

13

201-410

TEE,1 7/16"-12 ORFS

Incl 29

1шт.

14

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl 29

1шт.

15

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

1шт.

16

203-905

TUBE NUT,1 7/16"-12 ORFS

1шт.

17

84565377

HYDRAULIC HOSE,19.05mm ID x 690mm L, SAE 100R17

Reel Function Supply, Incl 31

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

84324767

HOSE ASSY.,12.7mm ID x 1560mm L, SAE 100R17

Reverser Supply/Return

2шт.

20

84536111

HYDRAULIC HOSE,25.4mm ID x 455mm L, SAE 100R1

Valve Stack Return, Incl 32

1шт.

21

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

22

87319550

90 ELBOW

Bulkhead, Incl 33

1шт.

23

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

1шт.

24

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl 34

1шт.

25

87020814

WASHER,33mm ID x 56mm OD x 4mm Thk

2шт.

26

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

27

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 30

1шт.

28

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

33

9992898

O-RING

Steering Supply Tube

2шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 36
