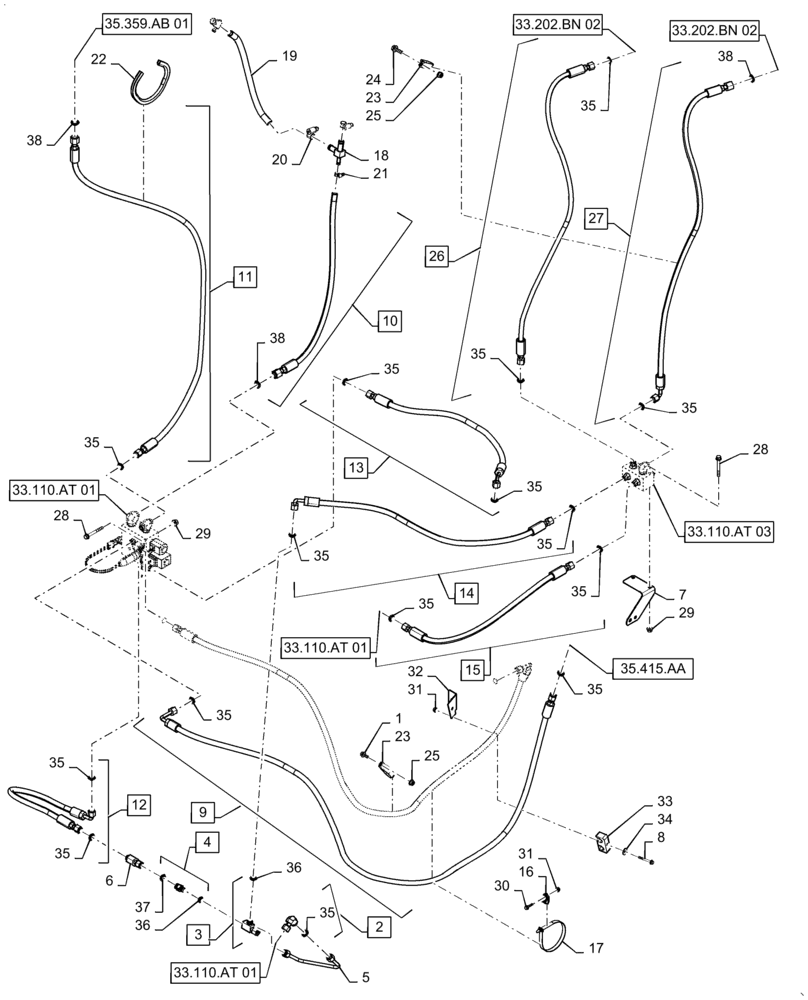

Запчасти Case IH 6140 (33.202.AP) - BRAKE LINE, SERVICE (33) - BRAKES & CONTROLS

1

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

2

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 35

1шт.

3

277963A1

FITTING

Tow Check, Incl 36

1шт.

4

277961A1

VALVE

In-Line Check, Incl 36, 37

1шт.

5

87726278

HYD TUBE,.375" OD

Tow Check

1шт.

6

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

7

47697545

BRACKET

Manifold

1шт.

8

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

9

47694098

HOSE

Feeder Clutch Cylinder Extend, Incl 35

2шт.

10

47694048

HOSE

Park Brake Drain, Incl 38

1шт.

11

47694049

HOSE

Park Brake Supply, Incl 35, 38

1шт.

12

47694055

HOSE

Brake, Run Tee To Park, Left, Incl 35

1шт.

13

47694057

HOSE

Park Brake Right, Incl 35

1шт.

14

47694062

HOSE

Brake, Service To Park, Left, Incl 35

1шт.

15

47694095

HOSE

Brake, Service To Park, Right, Incl 35

1шт.

16

84340333

BASE PLATE

Base Tie

1шт.

17

84266050

CABLE TIE,384mm L, Polyamide

1шт.

18

84575664

TEE

5/8" x 5/8" x 3/8"

1шт.

19

S118576

HOSE,0.62" ID BULK

Drain, Cut to Length, 400mm

1шт.

20

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

3шт.

21

86625041

HOSE CLAMP,11.2mm - 19.8mm

1шт.

22

87063C3

SEAL

Edge Trim

1шт.

23

470375C1

CLAMP,1", Insul, 3/8" Bolt

Medium Duty

2шт.

24

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

25

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

26

84546427

HYDRAULIC HOSE,9.53mm ID x 1615mm L, SAE 100R17

Service Brake, LH, Incl 35

1шт.

27

84546428

HYDRAULIC HOSE,9.53mm ID x 1590mm L, SAE 100R17

Service Brake, RH, Incl 35, 38

1шт.

28

87656138

BOLT,M8 x 78.1mm, Cl 10.9

4шт.

29

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

30

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

31

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

32

47493785

BRACKET

Clamp

1шт.

33

183826C1

CLAMP

Oil

1шт.

34

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

1шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

17шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.
