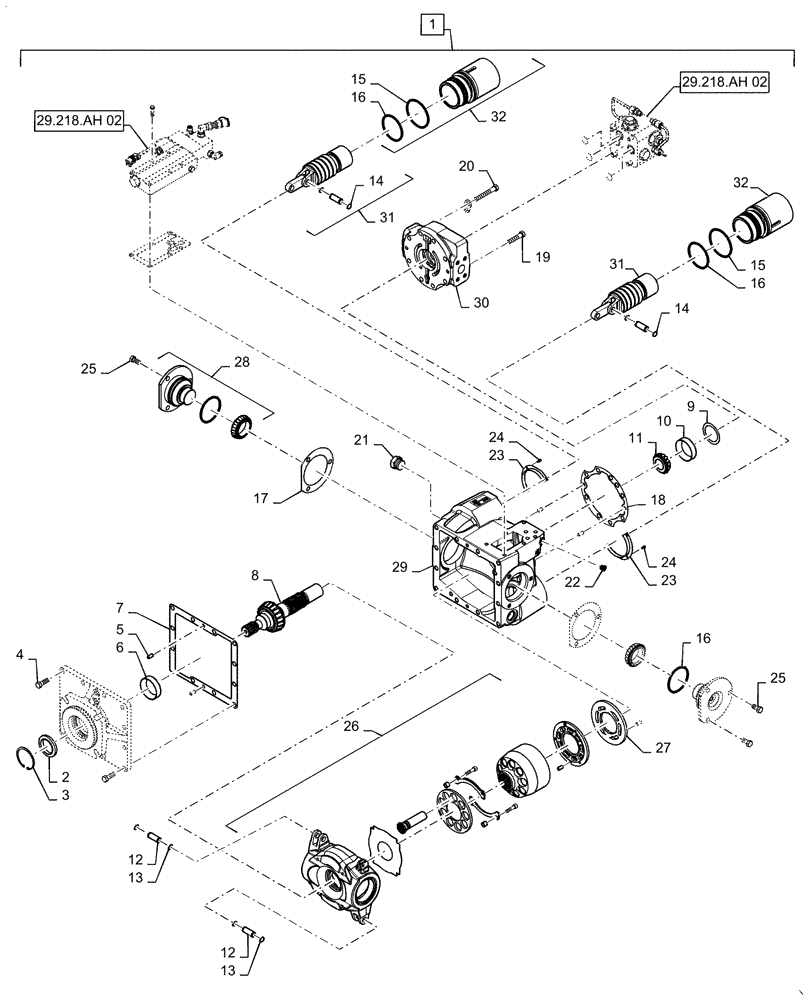

Запчасти Case IH 6140 (29.218.AH[01]) - VAR - 425440, 425441 - HYDROSTATIC MOTOR, VARIABLE SPEED, 105CC - 70CC (29) - HYDROSTATIC DRIVE

1

47433772

HYDROSTATIC MOTOR

Hydrostatic, Variable, Incl 2 - 32

1шт.

2

403145A1

SEAL

Shaft

1шт.

3

34039

SNAP RING,2.50", Int, #250

1шт.

4

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

12шт.

5

280651

PIN,7.86mm OD x 15.88mm L

Dowel

7шт.

6

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

1шт.

7

84250219

GASKET,0.43mm Thk

Mounting Flange

1шт.

8

403147A1

SHAFT

Hydro Motor

1шт.

9

142398C91

SHIM KIT

Drive Shaft

1шт.

10

530741R1

BEARING CUP

Output Shaft, RH

1шт.

11

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

Output Shaft, RH

1шт.

12

140766C1

PIN,14.22mm OD x 39.12mm L

Servo Linkage

2шт.

13

277043

SNAP RING,#56, Ext

4шт.

14

100-1375

SNAP RING,#75, Ext

4шт.

15

511526

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

16

9617975

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

17

142386C91

SHIM KIT

Trunnion

2шт.

18

92741C2

GASKET,0.38mm Thk

Rear Cover

1шт.

19

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

20

2652

BOLT

7/16" - 14 x 3"

6шт.

21

47539754

HYD CONNECTOR

Straight

1шт.

22

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

23

142408C1

RETAINER

Ring

2шт.

24

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

25

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

26

NSS

NOT SOLD SEPARAT

Pump, Incl with 1

1шт.

27

NSS

NOT SOLD SEPARAT

Plate, Incl with 1

1шт.

28

NSS

NOT SOLD SEPARAT

Trunnion, Incl with 1

1шт.

29

NSS

NOT SOLD SEPARAT

Housing, Incl with 1

1шт.

30

NSS

NOT SOLD SEPARAT

Rear Housing, Incl with 1

1шт.

31

NSS

NOT SOLD SEPARAT

Pump Servo Piston, Incl with 1

2шт.

32

NSS

NOT SOLD SEPARAT

Servo Sleeve, Incl with 1

2шт.
