Запчасти Case IH 6130 (29.212.23) - MOTOR ASSEMBLY, VAR. HYDROSTATIC,2 SPEED (105.5-85.9CC/REV) (29) - HYDROSTATIC DRIVE

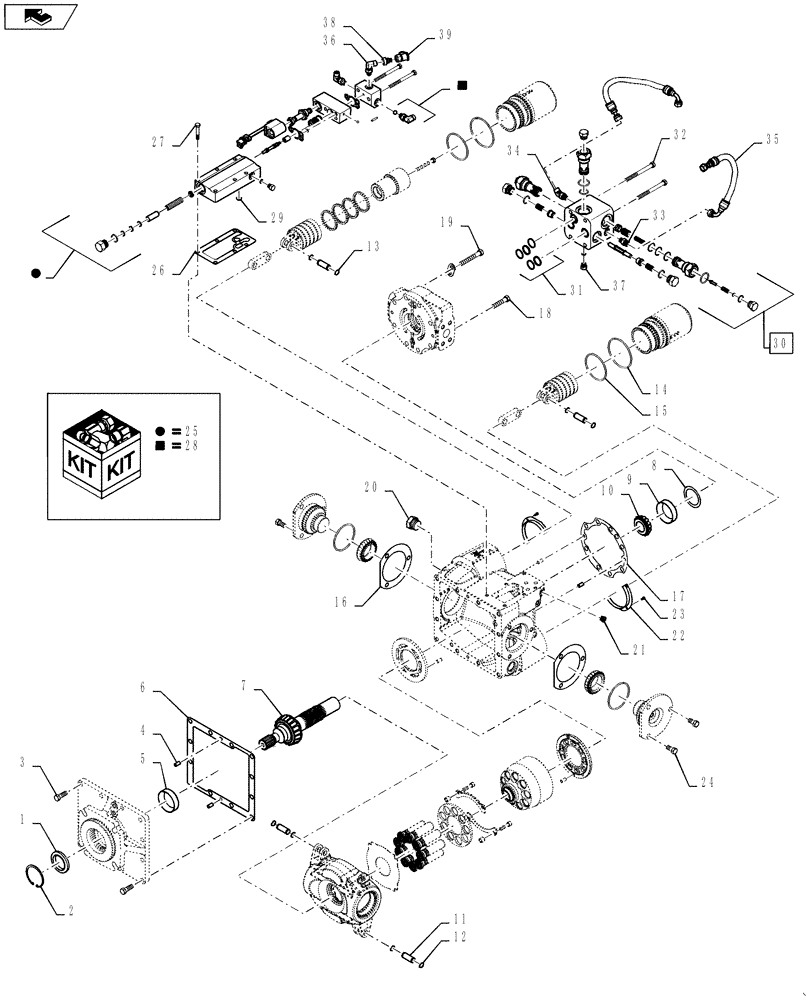

Схема запчастей Case IH 6130 - (29.212.23) - MOTOR ASSEMBLY, VAR. HYDROSTATIC,2 SPEED (105.5-85.9CC/REV) (29) - HYDROSTATIC DRIVE
22
19
10
home
home
23
7
25
26
3
5
9
25
28
25
14
36
37
28
21
11
8
27
33
15
34
38
28
18
24
32
20
4
13
30
35
1
2
39
6
12
29
31
17
16

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

All Ghosted Parts Are NSS, Order Complete If Not Called Out

1шт.

84279067

HYDROSTATIC MOTOR

Complete, Incl Ref 1- 39.

1шт.

84599273R

REMAN-HYDROSTAT MOTO

5130, 6130, 7130, All COMBINE TIER 4, Complete, 105.5-85.9CC/REV (1/12-), Reman for New PN 84279067

1шт.

84599273C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

403145A1

SEAL

Seals, Includes Shaft Seal, Spacer, Retaining Ring, And Instructions

1шт.

2

34039

SNAP RING,2.50", Int, #250

1шт.

3

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

12шт.

4

280651

PIN,7.86mm OD x 15.88mm L

5/16x5/8

7шт.

5

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

1шт.

6

84250219

GASKET,0.43mm Thk

Mounting Flange

1шт.

7

403147A1

SHAFT

Main

1шт.

8

142398C91

SHIM KIT

1шт.

9

530741R1

BEARING CUP

Output Shaft, RH

1шт.

10

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

Output Shaft, RH

1шт.

11

140766C1

PIN,14.22mm OD x 39.12mm L

Servo Linkage

2шт.

12

277043

SNAP RING,#56, Ext

4шт.

13

100-1375

SNAP RING,#75, Ext

4шт.

14

511526

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

15

9617975

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

16

142386C91

SHIM KIT

For Trunnion

2шт.

17

92741C2

GASKET,0.38mm Thk

Rear Cover

1шт.

18

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

19

2652

BOLT

6шт.

20

163410

PLUG,1-1/16" - 12 ORB

1шт.

21

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

22

142408C1

RETAINER

2шт.

23

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

24

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

25

255825A1

REPAIR KIT

Motor Control Valve

1шт.

26

145337C1

GASKET

Pressure Control Valve

1шт.

27

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

6шт.

28

413431A1

KIT

2 Speed Motor Control Fittings

1шт.

29

255843A1

PORT

Control Valve

1шт.

30

87479010

VALVE

Motor Relief Manifold

1шт.

31

140747C92

SEAL KIT

Valve Block Seal

1шт.

32

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

33

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

34

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

1шт.

35

84600412

HYD TUBE

2 Speed Response, Upper Tube

1шт.

35

84600417

HYD TUBE

2 Speed Response, Lower Tube

1шт.

36

87681199

90 ELBOW

1шт.

37

9672438

PLUG,7/16" - 20 ORB

1шт.

38

190117A1

COUPLING

Diagnostic, 1/4 F - ORFS

1шт.

39

H434163

DUST CAP

1шт.
