Запчасти Case IH 6130 (29.212.22) - MOTOR ASSEMBLY, FIXED HYDROSTATIC, SINGLE SPEED, 105 - 89 CC/REV (29) - HYDROSTATIC DRIVE

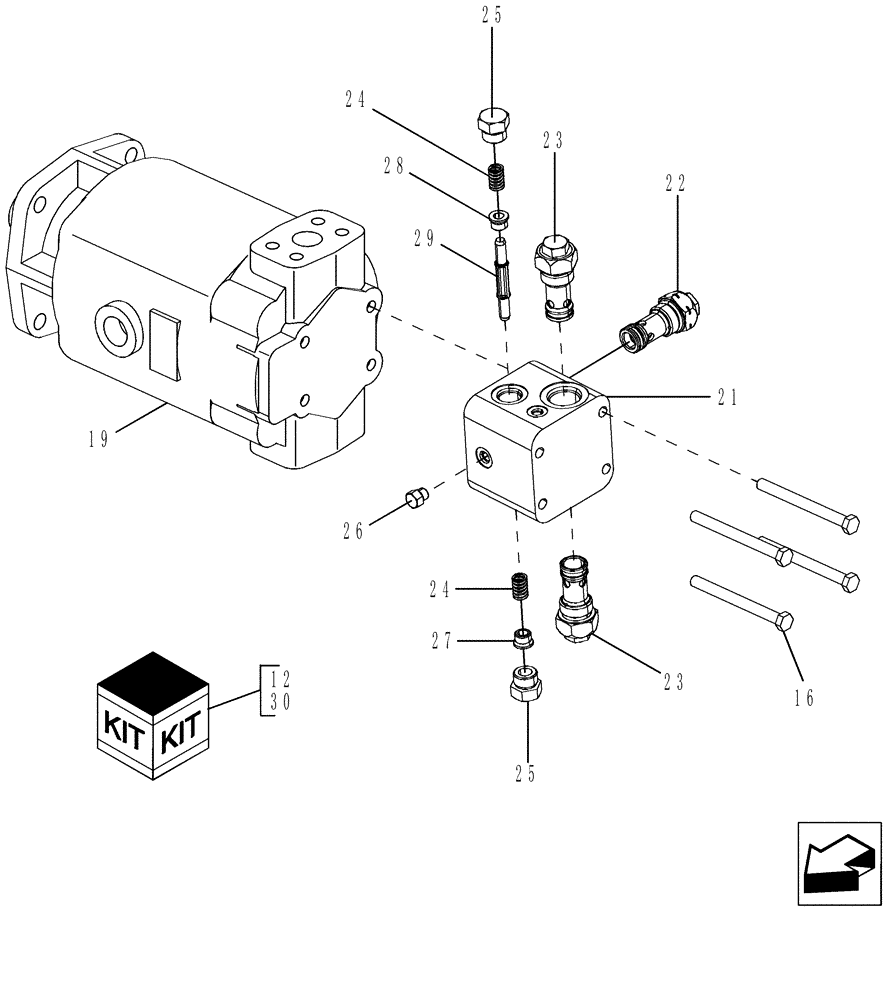

Схема запчастей Case IH 6130 - (29.212.22) - MOTOR ASSEMBLY, FIXED HYDROSTATIC, SINGLE SPEED, 105 - 89 CC/REV (29) - HYDROSTATIC DRIVE
23
19
29
24
16
12
22
30
26
23
24
25
21
27
28
25

Артикул

Название

Примечание

Количество

87374885

HYDROSTATIC MOTOR,105.39CC

Fixed, Single Speed, 105 CC/REV

1шт.

87374885R

REMAN-HYDROSTAT MOTO

Remanufactured, HYDRAULIC MOTOR, For N.A. Only

1шт.

87374885C

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

87374877

HYDROSTATIC MOTOR

Fixed, Single Speed, 89 CC/REV

1шт.

87374877R

REMAN-HYDROSTAT MOTO

Remanufactured, HYDRAULIC MOTOR, For N.A. Only

1шт.

87374877C

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

1

403145A1

SEAL

Shaft, (Not Shown) Incl Drive Shaft Seal, Spacer, Retaining Ring For Ref 19

1шт.

2

34039

SNAP RING,2.50", Int, #250

Not Shown

1шт.

3

37-1516

DOWEL,5/16" x 1"

Not Shown

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

5

280651

PIN,7.86mm OD x 15.88mm L

Not Shown

5шт.

6

163410

PLUG,1-1/16" - 12 ORB

Not Shown

1шт.

7

403147A1

SHAFT

Not Shown

1шт.

8

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

Not Shown

1шт.

9

1980140C1

GASKET,0.38mm Thk

Not Shown

1шт.

10

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

Not Shown

1шт.

11

530741R1

BEARING CUP

Not Shown

1шт.

12

142398C91

SHIM KIT

Incl 13 All Refs 13

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.003 mm, (Not Shown)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.005 mm, (Not Shown)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.010 mm, (Not Shown)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.015 mm, (Not Shown)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.020 mm, (Not Shown)

1шт.

13

NSS

NOT SOLD SEPARAT

Shim, 0.030 mm, (Not Shown)

1шт.

14

280874

BOLT,Hex, 7/16" - 14 x 3", Gr 8

Not Shown

6шт.

15

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

Not Shown

2шт.

16

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

17

R55912

NIPPLE

2шт.

18

H434163

DUST CAP

2шт.

19

NSS

NOT SOLD SEPARAT

MOTOR, Hydrostatic

1шт.

20

87479010

VALVE

Motor Relief

1шт.

21

NSS

NOT SOLD SEPARAT

BODY, Valve

1шт.

22

140761C1

VALVE PRESSURE RELIE

1шт.

23

84144765

VALVE PRESSURE RELIE

VALVE, Relief

2шт.

24

145560C1

SPRING

Shuttle Valve

2шт.

25

86512512

PLUG,7/8" - 14 ORB

1шт.

26

9672438

PLUG,7/16" - 20 ORB

1шт.

27

NSS

NOT SOLD SEPARAT

1шт.

28

NSS

NOT SOLD SEPARAT

1шт.

29

NSS

NOT SOLD SEPARAT

1шт.

30

140747C92

SEAL KIT

Valve Block

1шт.

Выбрано товаров: 41
