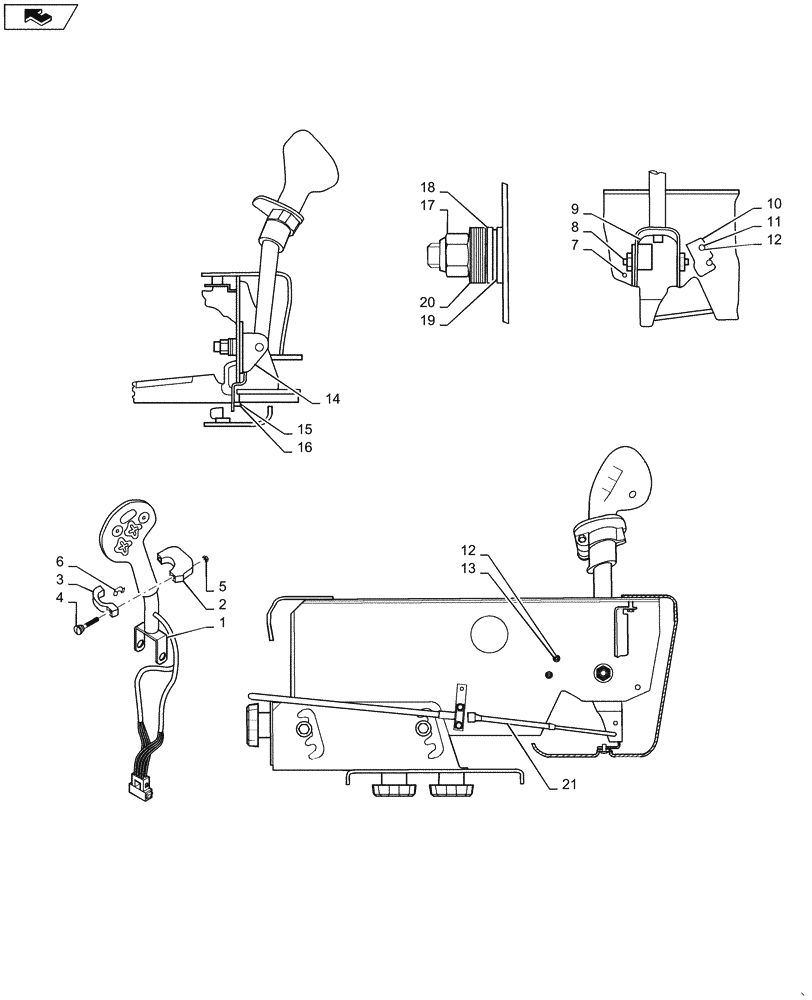

Запчасти Case IH 6130 (29.200.02[02]) - HANDLE ASSEMBLY, PROPULSION CONTROLS WITH PALM REST (29) - HYDROSTATIC DRIVE

1

87351683

JOYSTICK

Propulsion

1шт.

2

86997342

SUPPORT

SUPPORT, Right Hand

1шт.

3

86997341

SUPPORT

SUPPORT, Left Hand

1шт.

4

86618563

KNOB

KNOB

1шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

6

1343962C1

CLIP,ELECTRICAL

1шт.

7

432-816

COTTER PIN,1/8" x 1"

1шт.

8

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

9

128593A1

SPRING

1шт.

10

141655A1

SWITCH

Back-Up Alarm

1шт.

11

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

12

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

13

225-14104

NUT,#4-40

2шт.

14

113318A2

SUPPORT

Propulsion Control Lever

1шт.

15

432-48

COTTER PIN,1/16" x 1/2"

1шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

17

231-1447

NUT,7/16"-14, GB

1шт.

18

251090A1

THRUST WASHER

1шт.

19

159688R91

THRUST BEARING

Pump Control Actuating Arm

1шт.

20

1994980C1

BELLEVILLE WASHER

6шт.

21

84203945

CABLE,6957mm L

Propulsion Control

1шт.
