Запчасти Case IH 6130 (14.100.10[02]) - POWER TAKEOFF GEARBOX ASSEMBLY CONTINUED (14) - MAIN GEARBOX & DRIVE

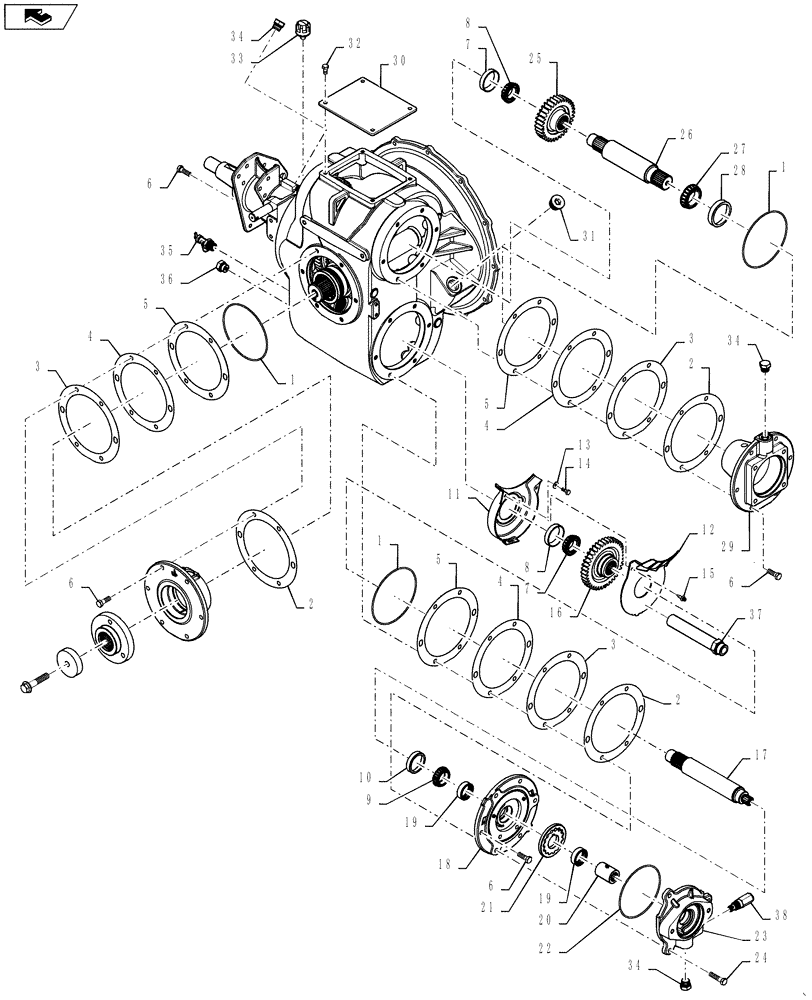

Схема запчастей Case IH 6130 - (14.100.10[02]) - POWER TAKEOFF GEARBOX ASSEMBLY CONTINUED (14) - MAIN GEARBOX & DRIVE
6
15
10
33
28
23
37
36
5
2
8
9
7
13
22
1
26
8
3
20
17
12
34
32
24
30
3
19
5
11
21
31
38
6
35
1
4
34
2
19
6
3
34
4
29
25
4
16
14
2
home
1
18
5
6
27
7

Артикул

Название

Примечание

Количество

1

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

3шт.

2

84146056

SHIM,184mm ID x 240.5mm OD x 0.13mm Thk

184x243x.127

3шт.

3

84146057

SHIM,184mm ID x 240.5mm OD x 0.18mm Thk

184x243x.178

3шт.

4

84146058

SHIM

184x243x.254

3шт.

5

84146059

SHIM

184x243x.762

3шт.

6

84146883

BOLT,Hex, M12 x 35mm, Cl 10.9

M12x35 Full Thread 10.9

23шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

9

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

1шт.

10

61801C1

BEARING CUP,63mm OD x 13.5mm W

1шт.

11

84148216

PROTECTION PLATE

PFC Gear, Front

1шт.

12

84148217

PROTECTION PLATE

PFC Gear, Rear

1шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

2шт.

15

87348536

RIVET,6.4mm OD x 22.8mm L

Rivet

2шт.

16

84141963

GEAR

Gear, PFC Pump, 39T

1шт.

17

84145261

SHAFT

PFC Pump Drive

1шт.

18

84599117

CARRIER

PFC W/ Dowel

1шт.

19

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

2шт.

20

84218385

COUPLING,14T

PFC Pump

1шт.

21

84145259

GEAR SET

1шт.

22

272712

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

23

84148219

CARRIER

PFC Pump

1шт.

24

87015540

BOLT,Hex, M12 x 50mm, Cl 10.9

3шт.

25

84141965

GEAR

Hydro Pump, 33T

1шт.

26

84142987

SHAFT

Hydro Pump Drive

1шт.

27

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

28

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

1шт.

29

84589396

BEARING CARRIER

1шт.

30

84146062

PLATE

1шт.

31

86583482

HEX SOCKET PLUG,M33 x 2

1шт.

32

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

4шт.

33

1971726C1

BREATHER,1/4" - 18

1шт.

34

87773529

PLUG

3шт.

35

87485712

DRAINCOCK/TAP SUPPLY

1шт.

36

87108781

PLUG

1шт.

37

84253774

FILTER STRAINER,1-5/16" - 12, 194mm L, 149 Micron

Suction

1шт.

38

84266245

VALVE PRESSURE RELIE

Cartridge

1шт.

Выбрано товаров: 38
