Запчасти Case IH 6130 (14.100.08) - ARM ASSEMBLY, SEPARATOR IDLER WITH PULLEY, POWER TAKEOFF (14) - MAIN GEARBOX & DRIVE

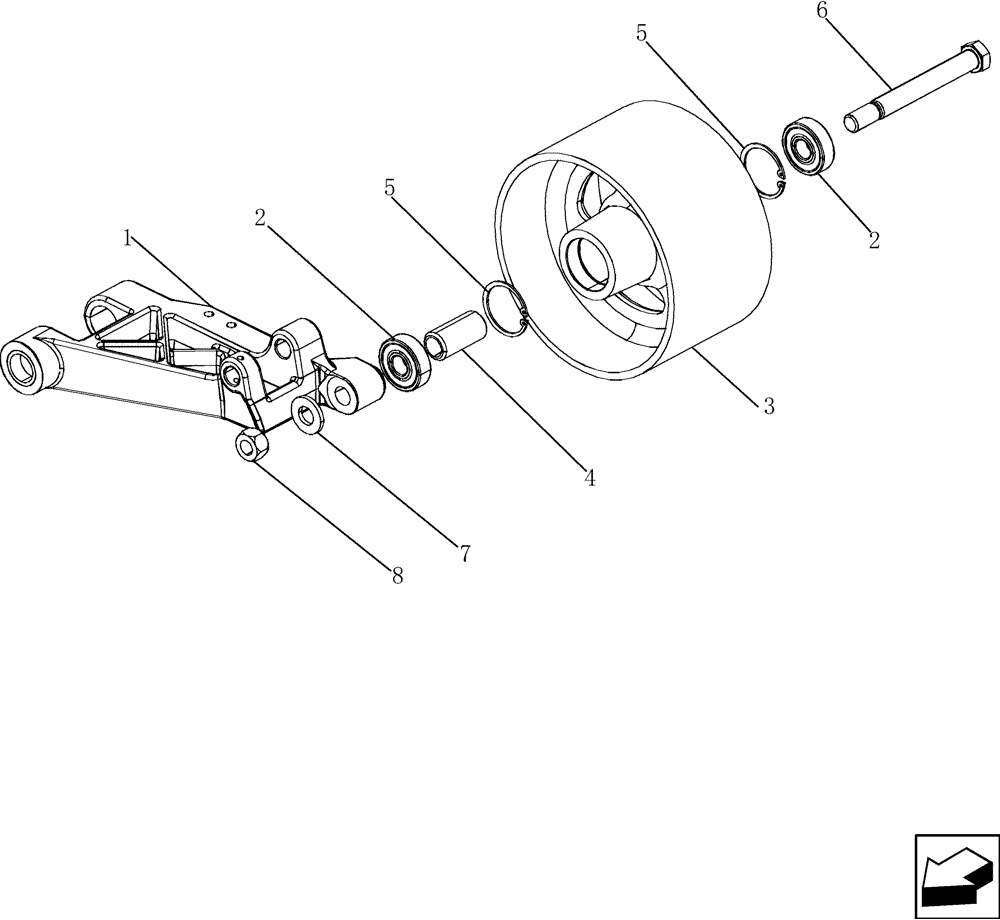

Схема запчастей Case IH 6130 - (14.100.08) - ARM ASSEMBLY, SEPARATOR IDLER WITH PULLEY, POWER TAKEOFF (14) - MAIN GEARBOX & DRIVE
3
4
2
6
1
8
7
5
5
2

Артикул

Название

Примечание

Количество

1

84421043

ARM

Separator Drive Idler

1шт.

2

87306803

BALL BEARING,17mm ID x 47mm OD x 14mm W

Separator Idler

2шт.

3

84342816

PULLEY,203.2mm OD

Separator Idler

1шт.

4

87310758

BUSHING,17.48mm ID x 25.4mm OD x 53.33mm L

Idler Bearing Separator Drive

1шт.

5

800-2147

SNAP RING,M47, Int

2шт.

6

87708446

BOLT

Idler Pulley Separator Drive

1шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

8

125-10012

SPECIAL NUT,5/8"-11, G5, LH

1шт.

Выбрано товаров: 8
