Запчасти Case IH 6130 (14.100.02) - PTO/ENGINE INSTALLATION 61/7130 (14) - MAIN GEARBOX & DRIVE

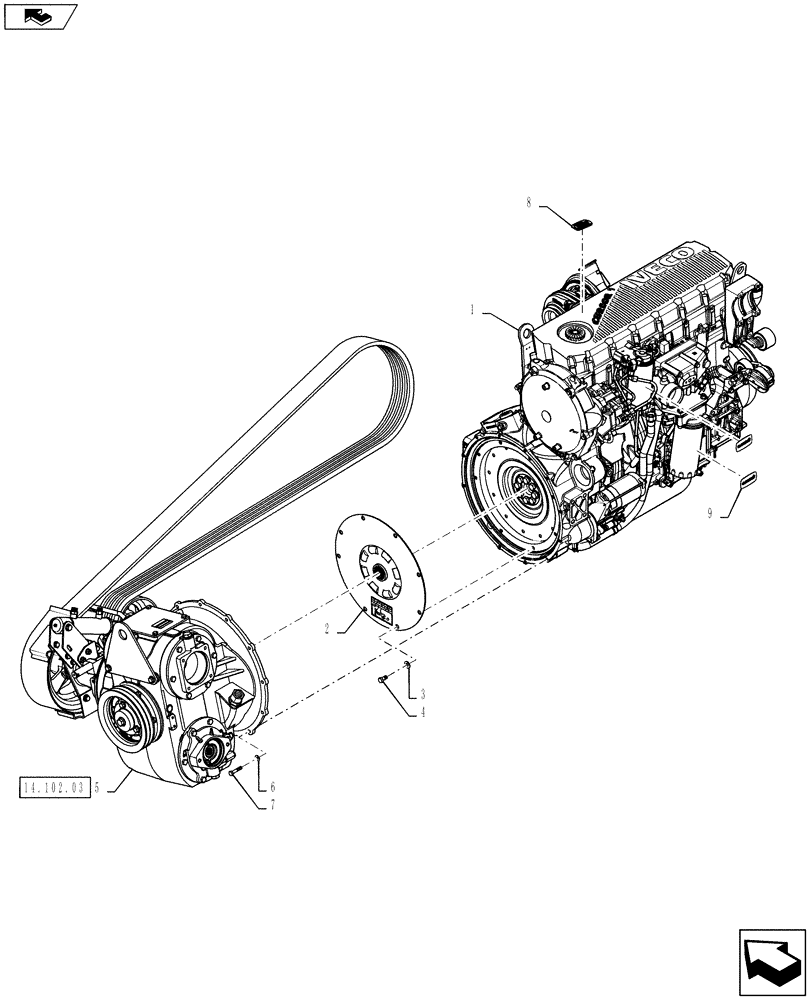

Схема запчастей Case IH 6130 - (14.100.02) - PTO/ENGINE INSTALLATION 61/7130 (14) - MAIN GEARBOX & DRIVE
1
6
home
7
9
2
5
8
3
14.102.03
4

Артикул

Название

Примечание

Количество

1

84392295

ENGINE

Cursor 9 T2 6130

1шт.

1

84498911

ENGINE,285kW, 6 Cylinders, W/ Turbocharger

Cursor 9 T2 7130

1шт.

1

84498911ER

REMAN-REPLACEMENT EN

7130 COMBINE TIER 4, Cursor 9 T2 (1/12-)

1шт.

1

84498911EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

84392295

ENGINE

Cursor 9 T4 6130

1шт.

1

84392295ER

REMAN-REPLACEMENT EN

6130 w/Cursor 9 Tier 4

1шт.

1

84392295EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

47825915R

REMAN-BASIC ENGINE

REMAN-BASIC ENGINE 6130 w/Cursor 9 Tier 4

1шт.

47825915C

CORE-BASIC ENGINE

Return Number

1шт.

1

84498911

ENGINE,285kW, 6 Cylinders, W/ Turbocharger

Cursor 9 T4 7130

1шт.

1

47825915R

REMAN-BASIC ENGINE

Reman - Basic Engine -- Cursor 9 T4 7130

1шт.

47825915C

CORE-BASIC ENGINE

Return Number

1шт.

2

87536815

SPLINED COUPLING,466.67mm OD

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

4

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

5

84359789

GEARBOX

See Page 14.102.03, Does Not Include Pulleys Or Lift Bracket

1шт.

5

84359789R

REMAN-PTO GEARBOX A.

1шт.

5

84359789C

CORE-PTO GEARBOX A.

Return Number

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

7

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.

8

84373430

EMBLEM

Case IH

1шт.

9

87679098

DECAL,37mm x 70mm

Case IH, For Filter

2шт.
