Запчасти Case IH 6130 (90.118.12) - PLATFORM - LADDER, RIGHT HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

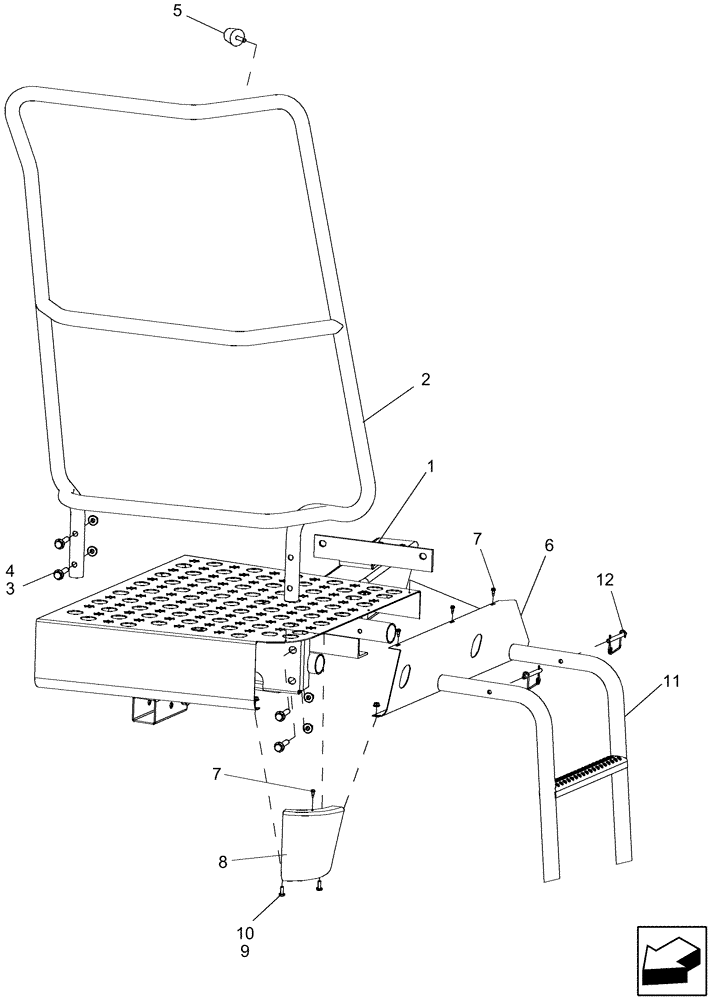

Схема запчастей Case IH 6130 - (90.118.12) - PLATFORM - LADDER, RIGHT HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
1
5
11
10
2
7
6
4
12
3
9
7
9

Артикул

Название

Примечание

Количество

1

87588623

PLATFORM

Right Hand

1шт.

2

84210773

HANDRAIL

Right Hand

1шт.

3

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

4

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

5

87109195

BUMPER,5/16" - 18, 38mm OD

Handrail

1шт.

6

118937A2

SUPPORT

Platform Trim, RH Front

1шт.

7

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

8

118938A1

SUPPORT

Platform Trim, RH Corner

1шт.

9

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

Flange, M10 x 16 CL10.9 ZND

2шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

Right Hand, Corner

2шт.

11

87389578

LADDER

1шт.

12

1338021C1

PIN,7.94mm OD

Latch Locking

2шт.

Выбрано товаров: 12
