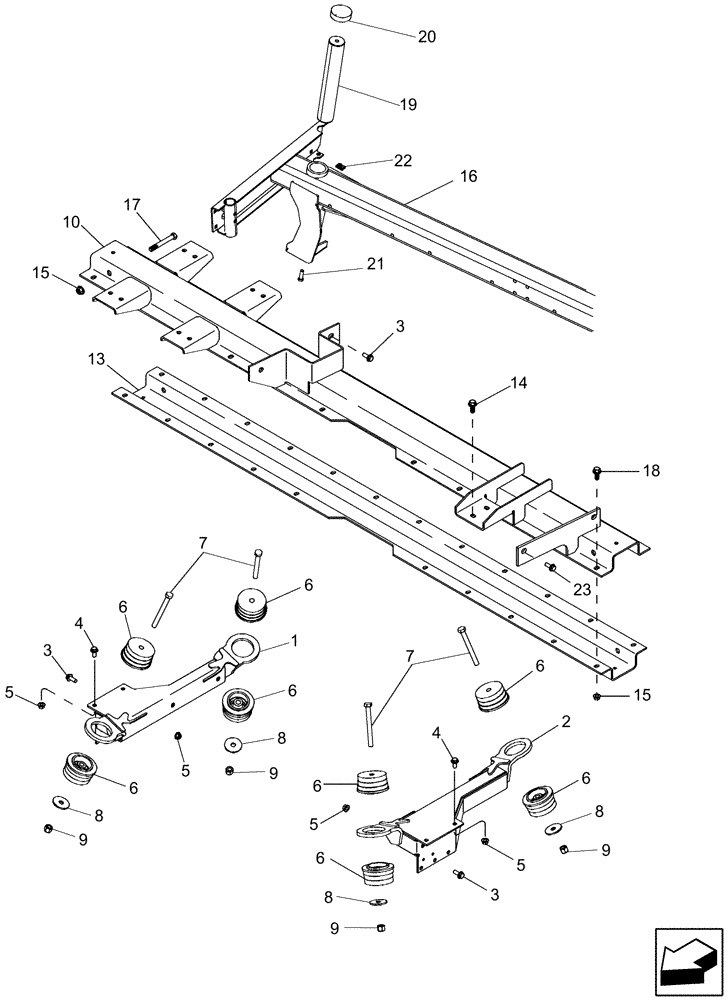

Запчасти Case IH 6130 (90.118.05) - PLATFORM SUPPORT - LADDER PIVOT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87386691

MOUNTING PARTS

Cab, Left Hand

1шт.

2

87386692

MOUNTING PARTS

Cab, Right Hand

1шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

14шт.

4

87343550

FLANGE BOLT,Hex, M12 x 25mm

4шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

, Serial Range: -YCG007519

4шт.

7

84439252

BOLT,Hex, M16 x 150mm, Cl 10.9

, Start Serial: YCG007519

4шт.

8

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

4шт.

9

232-41110

NUT,5/8"-11, GC

, Serial Range: -YCG007519

4шт.

9

86512555

NUT,M16 x 2, Cl 10

, Start Serial: YCG007519

4шт.

10

84158411

CHANNEL

Operator Deck, Left Hand

1шт.

13

87665480

CHANNEL

Operator Deck, Left Hand

1шт.

14

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

2шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

27шт.

16

84311885

BEAM ASSY.

Operator Deck, Left Hand

1шт.

17

87681205

BOLT,Hex, M10 X 120, Class 10.9

1шт.

18

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

24шт.

19

320946A1

PIN,50.81mm OD x 311.2mm L

Ladder Retention

1шт.

20

324464A1

PLUG

Pivot Pin

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

1шт.

23

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.
