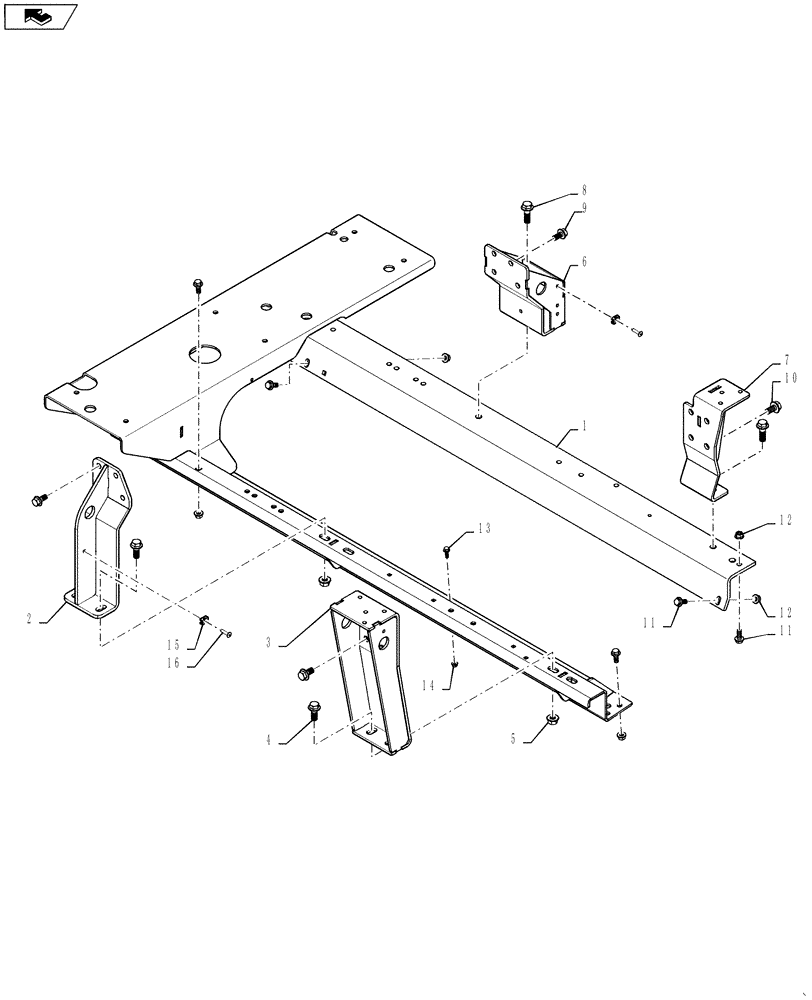

Запчасти Case IH 6130 (10.012.04) - MOUNTING, ENGINE 6130/7130 T2/T4 (10) - ENGINE

1

84413034

FRAME

1шт.

2

84192871

SUPPORT

1шт.

3

84259199

SUPPORT

1шт.

4

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

4шт.

6

84304599

SUPPORT

1шт.

7

84259195

ENGINE MOUNT

1шт.

8

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

8шт.

9

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

10

84188437

BOLT,Hex, M14 x 30mm, Cl 10.9

8шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

15

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

16

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

2шт.
