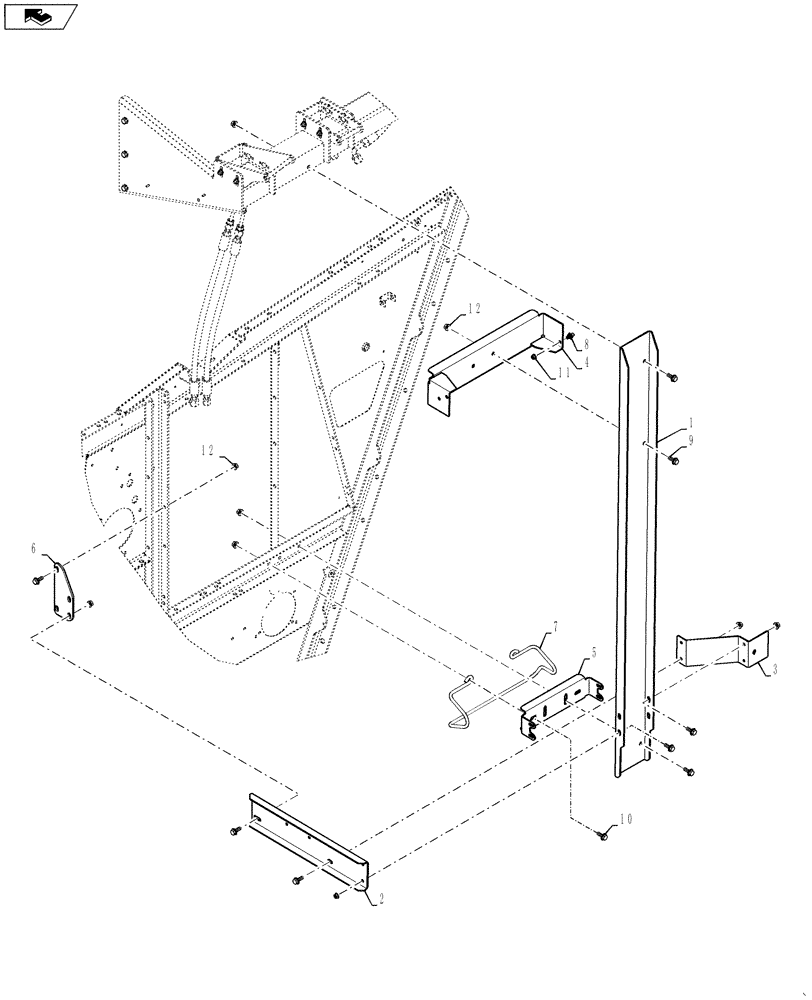

Запчасти Case IH 6130 (90.105.08[03]) - SUPPORT AND MOUNTING, LEFT HAND LATCH AND STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84180129

BRACKET, SUPPORTING

1шт.

2

84475121

CHANNEL

1шт.

3

87757249

SUPPORT

1шт.

4

84159228

BRACKET, SUPPORTING

1шт.

5

84136668

BRACKET

1шт.

6

84160869

PLATE

1шт.

7

84149018

LATCH

1шт.

8

86634307

STUD

2шт.

9

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

16шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.
