Запчасти Case IH 6130 (05.100.03[01]) - FILTERS, AXIAL-FLOW 6130 (05) - SERVICE & MAINTENANCE

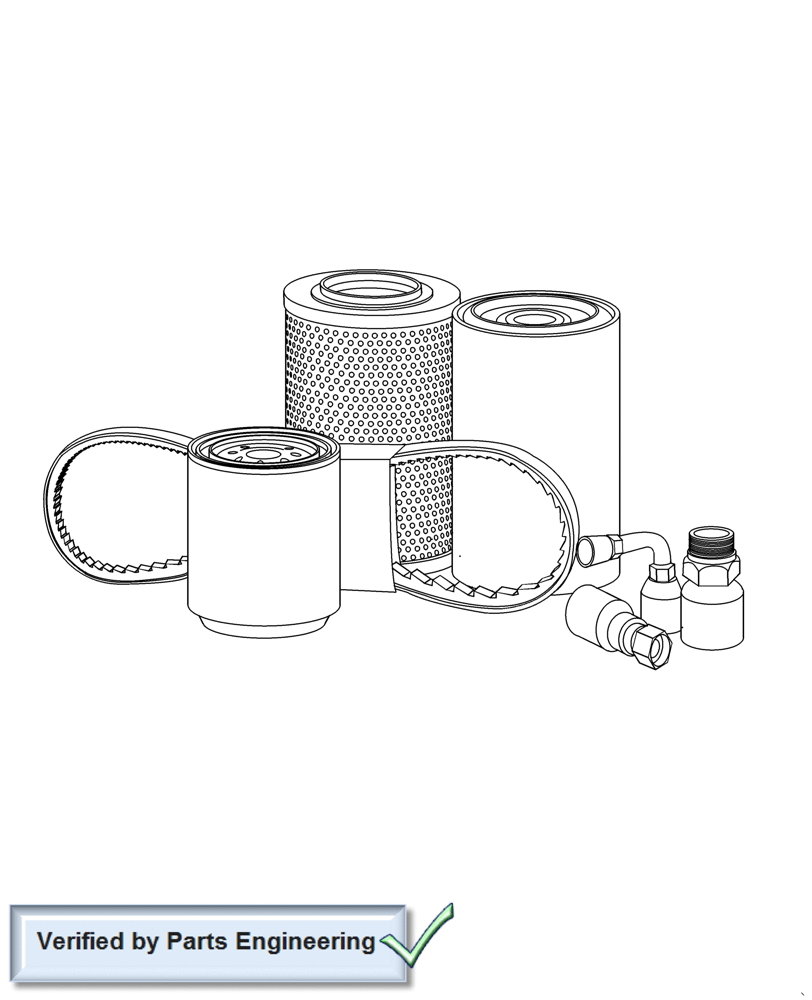

Схема запчастей Case IH 6130 - (05.100.03[01]) - FILTERS, AXIAL-FLOW 6130 (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

1шт.

2

504127720

AIR FILTER

Engine Crankcase Breather

1шт.

3

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Engine, Primary, Outer

1шт.

4

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Engine, Secondary, Inner

1шт.

5

84597064

FUEL FILTER,93mm OD x 212.5mm L, M16 x 1.5

Engine, Main, Spin- On, If Used

1шт.

5

2996569

FILTER

Engine Fuel, Main, Cartridge, If Used

1шт.

6

84477370

FUEL FILTER,Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron

Water Separator, Engine Mounted, 30 Micron

1шт.

7

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Water Seperator

2шт.

8

84254852

FILTER

Def/ AdBlue Module, Primary

1шт.

9

84247272

FILTER,In-Line

Def/ AdBlue, Insert, 30mm OAL

1шт.

10

47437399

FUEL FILTER

Def/ AdBlue Tank Vent

1шт.

10

1329214C1

HYDRAULIC OIL FILTER

Service Kit, Contains 2 Filters And 2 O-Rings, Chaff Spreader/ Main Separator/ Hydraulic Bypass

2шт.

11

84181465

HYDRAULIC OIL FILTER,1-7/16" - 12 x 1-7/16" - 12, 159.5mm L, 90 Micron

Unload System

1шт.

12

87684758

HYDRAULIC OIL FILTER,27.4mm Hose Barb, 27.4mm Hose Barb, 203.71mm L

Engine, Inline

1шт.

13

120486A2

FILTER

Cab, Recirculation

1шт.

14

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Cab External, Fresh Air

1шт.

15

84253774

FILTER STRAINER,1-5/16" - 12, 194mm L, 149 Micron

PTO, Suction

1шт.

Выбрано товаров: 17
