Запчасти Case IH 6130 (88.490.01) - DIA,HEAVY DUTY SHAKER BEARINGS (88) - ACCESSORIES

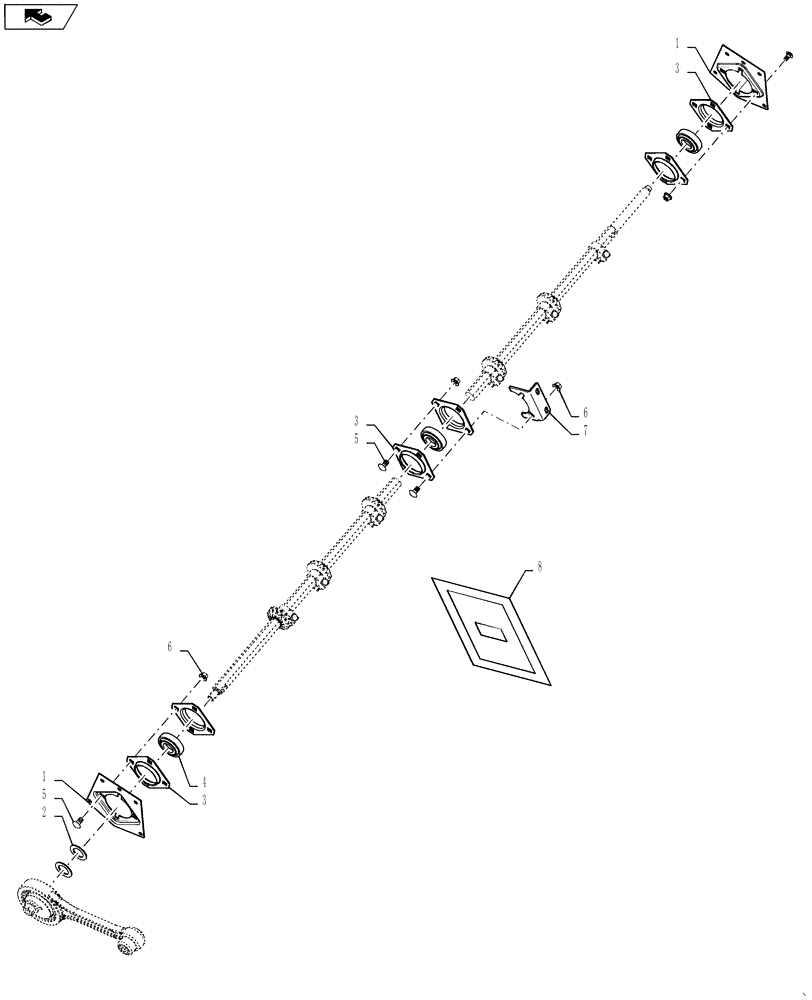

Схема запчастей Case IH 6130 - (88.490.01) - DIA,HEAVY DUTY SHAKER BEARINGS (88) - ACCESSORIES
7
8
6
4
home
6
5
3
3
5
3
1
2
1

Артикул

Название

Примечание

Количество

84368113

SERVICE KIT

DIA, Heavy Duty Shaker Bearing

1шт.

1

87491853

PLATE

Shaker Shaft Bearing

1шт.

2

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

Unloader Wear

2шт.

3

1307583C1

FLANGED BEARING

4 Bolt

6шт.

4

87491115

BALL BEARING,28.6mm Hex x 80mm OD x 28mm W

1.125" Hex

3шт.

5

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

12шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

7

84171883

SUPPORT

Auger Drive Center Bearing

1шт.

8

84368114

INSTRUCTION

Included In Kit

1шт.

Выбрано товаров: 9
