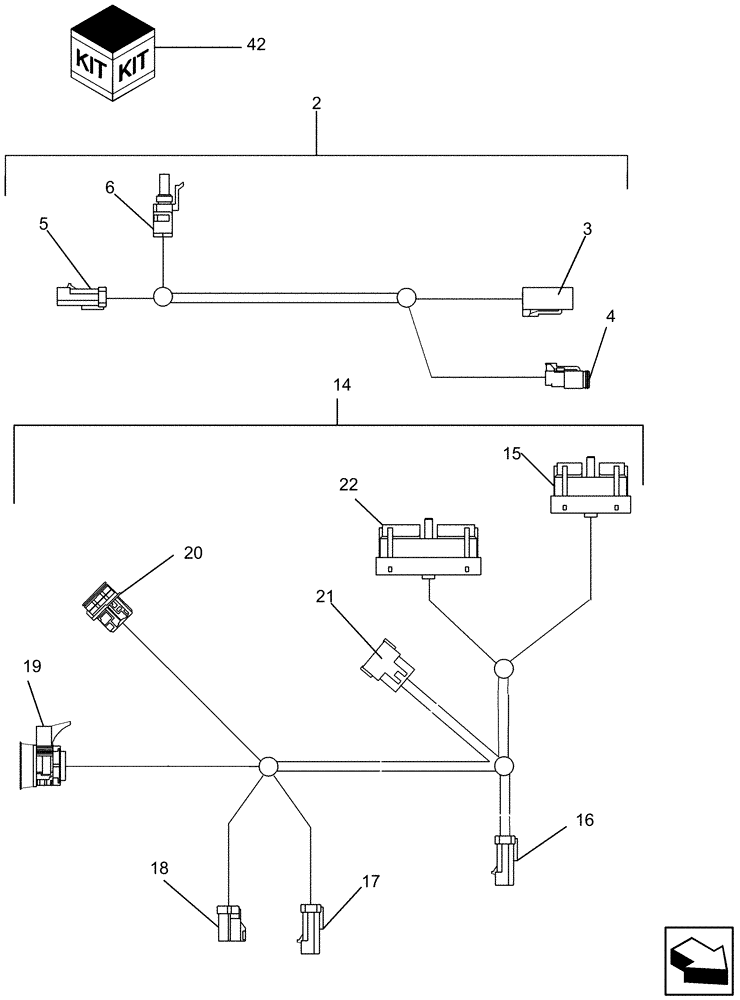

Запчасти Case IH 6130 (88.100.08[04]) - DIA, HARVEST KIT, AFS ACCUGUIDE READY (88) - ACCESSORIES

1

86624137

WASHER,0.27" ID x 0.5" OD x 0.06" Thk

(Not Shown)

4шт.

2

87676255

WIRE HARNESS

Auto Guidance Steering Valve, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR, Steering Coil, X167, 4-Pin

1шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR, Enable Solenoid, X168, 2-Pin

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR, X257, 10-Pin

1шт.

6

NSS

NOT SOLD SEPARAT

CONNECTOR, Steering Override, X165, 4-Pin

1шт.

7

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

(Not Shown)

1шт.

8

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP (Not Shown)

10шт.

9

87610598

SWITCH

Auto Guidance, (Not Shown)

1шт.

10

87614353

BRACKET

Sensor, (Not Shown)

1шт.

11

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

(Not Shown)

1шт.

12

15861321

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

(Not Shown)

2шт.

13

86509590

RELAY

(Not Shown)

2шт.

14

84131650

HARNESS

Auto Guidance Chassis, Incl 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR, X163, 24-Pin

1шт.

16

NSS

NOT SOLD SEPARAT

CONNECTOR, X192, 10-Pin

1шт.

17

NSS

NOT SOLD SEPARAT

CONNECTOR, X171, 4-Pin

1шт.

18

NSS

NOT SOLD SEPARAT

CONNECTOR, X172, 4-Pin

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR, X004, 34-Pin

1шт.

20

NSS

NOT SOLD SEPARAT

CONNECTOR, X004A, 34-Pin

1шт.

21

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

X148, 12-Pin

1шт.

22

NSS

NOT SOLD SEPARAT

CONNECTOR, X162, 40-Pin

1шт.

23

9706690

NUT,M8 x 1.25, Cl 8

(Not Shown)

1шт.

24

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

(Not Shown)

6шт.

25

86050251

SCREW,Phillips Drive, Pan HD, M4 x 25mm, Cl 4.8

(Not Shown)

6шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

(Not Shown)

2шт.

27

100012

NUT,M4 x 0.7, Cl 8

(Not Shown)

6шт.

28

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

(Not Shown)

4шт.

29

425-104

NUT,1/4"-20, Cl 5

(Not Shown)

4шт.

30

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

(Not Shown)

1шт.

31

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

(Not Shown)

3шт.

32

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

(Not Shown)

1шт.

33

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

(Not Shown)

2шт.

34

87492891

CHANNEL

Harness, (Not Shown)

1шт.

35

87723298

BRACKET

Steering Sensor Cover, (Not Shown)

1шт.

36

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(Not Shown)

1шт.

37

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

(Not Shown)

2шт.

38

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

(Not Shown)

4шт.

39

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

(Not Shown)

1шт.

40

84139340

CONDUIT

(Not Shown)

1шт.

41

84180745

SENSOR

Sensor Assembly, Auto Guidance Manual Override (Not Shown)

1шт.

42

84548664

SERVICE KIT

DIA, AFS Accuguide Ready, Incl 1 - 41 (84548688- auto guide & 87730769-Trimble dia Autosense)

1шт.

43

87743199

MODULE

Auto Sense, (Not Shown)

1шт.

44

87620805

HARNESS

Trimble Auto Sense To Combine, (Not Shown)

1шт.

45

87701803

HOSE ASSY.

(Not Shown) Load Sense Hose

1шт.

46

84131659

SENSOR

Steering Sensor (Not Shown)

1шт.

47

87723298

BRACKET

Bracket For Steering Sensor (Not Shown)

1шт.
