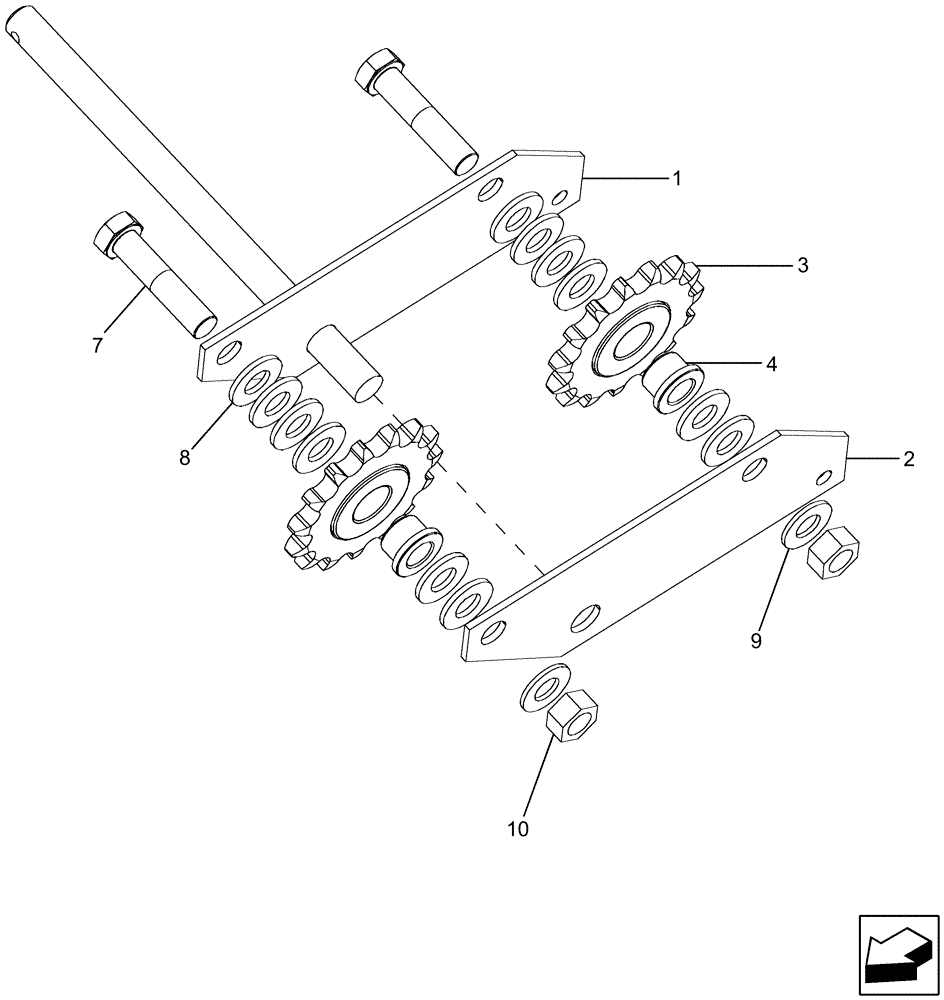

Запчасти Case IH 6130 (80.101.43) - ELEVATOR DRIVE TIGHTENER (80) - CROP STORAGE/UNLOADING

1

84398011

SUPPORT

Double Idler

1шт.

2

84398019

PLATE

Elevator Drive Tightener

1шт.

3

87283101

SPROCKET,15T

Main

2шт.

4

84334697

BUSHING,17mm ID x 32mm OD x 18.8mm L

2шт.

7

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

8

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

12шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

2шт.

10

100020

NUT,M16 x 2.0, Cl 8

2шт.
