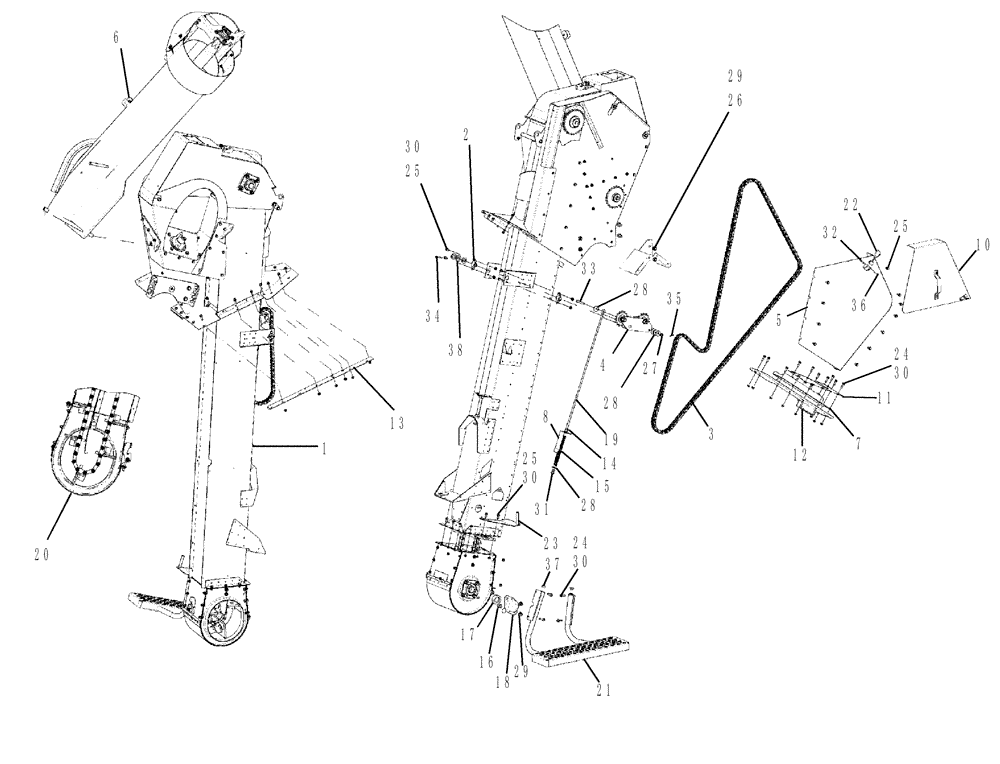

Запчасти Case IH 6130 (80.101.39[03]) - ELEVATOR, CLEAN GRAIN, STANDARD & EXTENDED WEAR (80) - CROP STORAGE/UNLOADING

1

NSS

NOT SOLD SEPARAT

Frame Assembly, Clean Grain Elevator With HD

1шт.

2

682452

FLANGED BEARING,25.46mm ID

2шт.

3

84163936

CHAIN (AG),60H, 224 Links x 19.05mm = 4267.2mm

Total Links 224, Link PN 84173631

1шт.

4

NSS

NOT SOLD SEPARAT

Tensioner Assembly, Elevator Drive

1шт.

5

84121900

SHIELD

1шт.

6

NSS

NOT SOLD SEPARAT

Bubbler Auger Assembly

1шт.

7

84410232

ANGLE

1шт.

8

84209641

BRACKET

1шт.

10

84130534

COVER ASSY

1шт.

11

84410229

PLATE

1шт.

12

84402983

GUIDE

1шт.

13

1317475C1

BRACKET

1шт.

14

87697440

FLANGED BEARING,10.5 mm ID x 19 mm OD x 15.8 mm

1шт.

15

523677R1

SPRING

1шт.

16

168368

SPACER,13.4mm ID x 25.4mm OD x 11.1mm OAL

2шт.

17

87313329

COLLAR

1шт.

18

86996082

COVER

1шт.

19

87365605

EYEBOLT

BOLT, EYE

1шт.

20

NSS

NOT SOLD SEPARAT

Boot Assembly, Grain Elevator

1шт.

21

84172835

STEP

1шт.

22

494307C1

LATCH

1шт.

23

87706141

SUPPORT

1шт.

24

87030775

BOLT,M8 x 38.1mm, Cl 10.9

24шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

24шт.

26

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

27

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

28

12644301

WASHER,M10 x 35 x 3

5шт.

29

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

30

86507066

FLANGE NUT,M8 x 1.25, Cl 10

37шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

32

728-640

RETAINER

1шт.

33

87668381

PIN

1шт.

34

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

35

733-3220

COTTER PIN,M3.2 x 20

1шт.

36

733-1610

COTTER PIN,M1.6 x 10

1шт.

37

86627131

PLUG,Dome, .875" hole, Nylon

2шт.

38

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

3шт.
