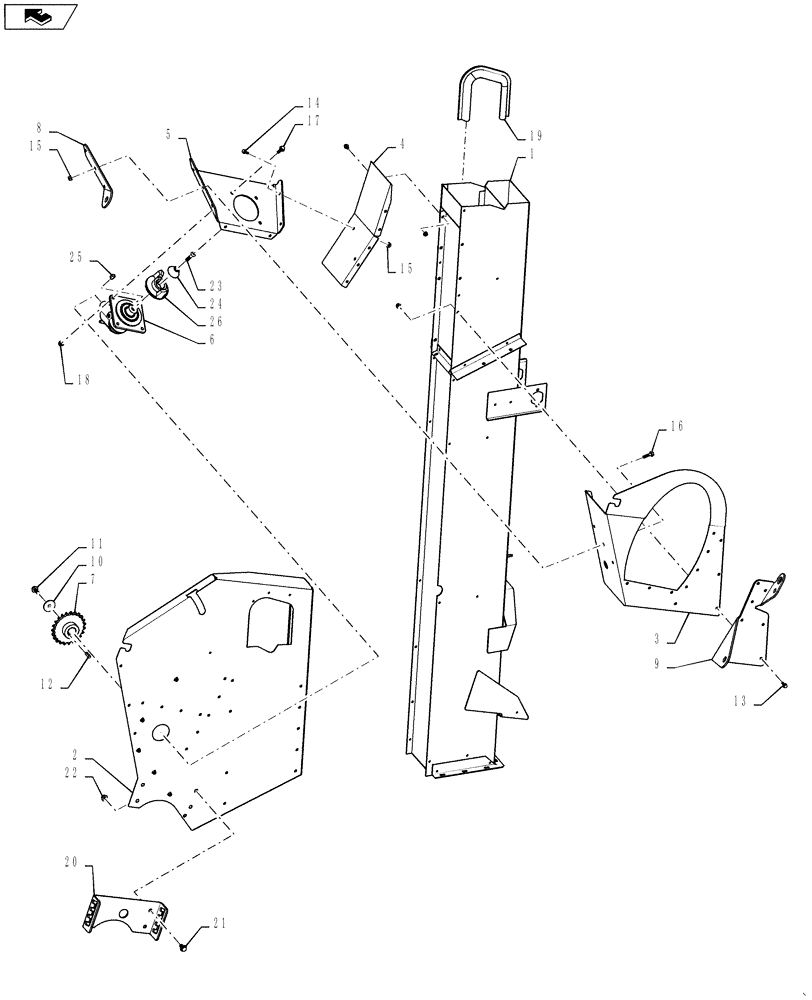

Запчасти Case IH 6130 (80.101.39[02]) - ELEVATOR, CLEAN GRAIN, STANDARD WITHOUT BUBBLER (80) - CROP STORAGE/UNLOADING

1

84398020

FRAME

Elevator Tube STD Wear

1шт.

84398072

FRAME

Elevator Tube Extended Wear

1шт.

2

84122309

PANEL ASSY.

1шт.

3

84135527

FRAME ASSY

STD Wear

1шт.

84135526

FRAME ASSY

Extended Wear

1шт.

4

84122801

WALL

STD Wear

1шт.

84122805

WALL

Extended Wear

1шт.

5

84122793

BRACKET

1шт.

6

87491124

GEARBOX ASSY

1шт.

87491124R

REMAN-GEARBOX

5130, 6130, 7130 All COMBINE TIER 4 (1/12-)

1шт.

87491124C

CORE-GEARBOX

Return Number

1шт.

7

84167767

SPROCKET ASSY.

1шт.

8

87656574

PLATE

1шт.

9

87653731

BRACKET

1шт.

10

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

1шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

12

354775

KEY,10mm x 8mm x 40mm

1шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

31шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

34шт.

16

87030775

BOLT,M8 x 38.1mm, Cl 10.9

3шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

19

87703603

SEAL,610mm L

1шт.

20

84126497

BRACKET, SUPPORTING

1шт.

21

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

23

84129702

HEX SOC SCREW,Btn Hd, M12 x 1.75 x 50mm, Cl 10.9

1шт.

24

87695821

CONE

1шт.

25

87588870

KEY,12mm x 8mm x 25mm

1шт.

26

87470291

COUPLING

1шт.
