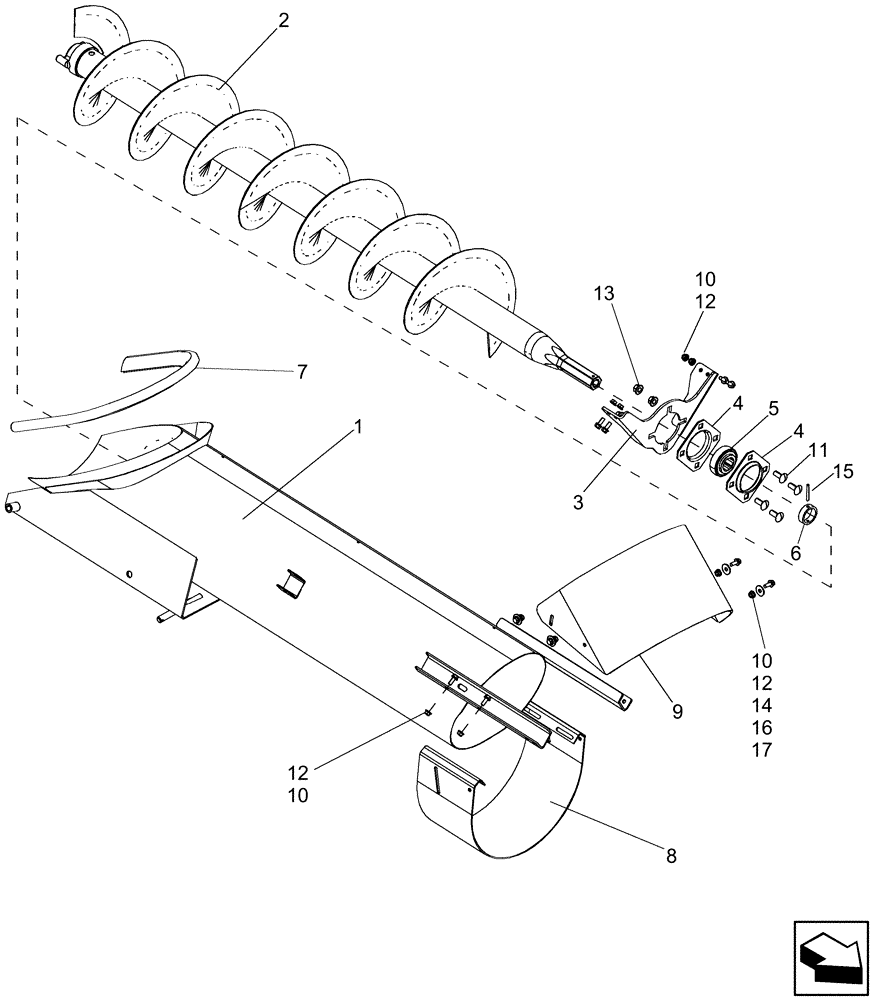

Запчасти Case IH 6130 (80.101.09) - INCLINED DELIVERY - AUGER (80) - CROP STORAGE/UNLOADING

1

84408236

BUBBLE-UP

Bubbler Auger, STD Wear

1шт.

1

84408230

BUBBLE-UP

Bubbler Auger, Extended Wear

1шт.

2

87563930

AUGER

Bubbler

1шт.

3

84408234

SUPPORT

Bubbler Auger Bearing

1шт.

4

1307583C1

FLANGED BEARING

80 mm, 4 Bolt

2шт.

5

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

Bubbler Auger

1шт.

6

87571176

COLLAR,41.28mm ID x 50.8mm OD x 15mm L

Bubbler Auger Shaft

1шт.

7

NS

NOT SERVICED

BULB SEAL, Bubbler Auger, Cut 995 mm From 87350510

1шт.

8

84138953

DEFLECTOR

Bubbler Auger

1шт.

9

84138950

DEFLECTOR

Bubbler Auger

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

14

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

4шт.

15

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

17

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.
