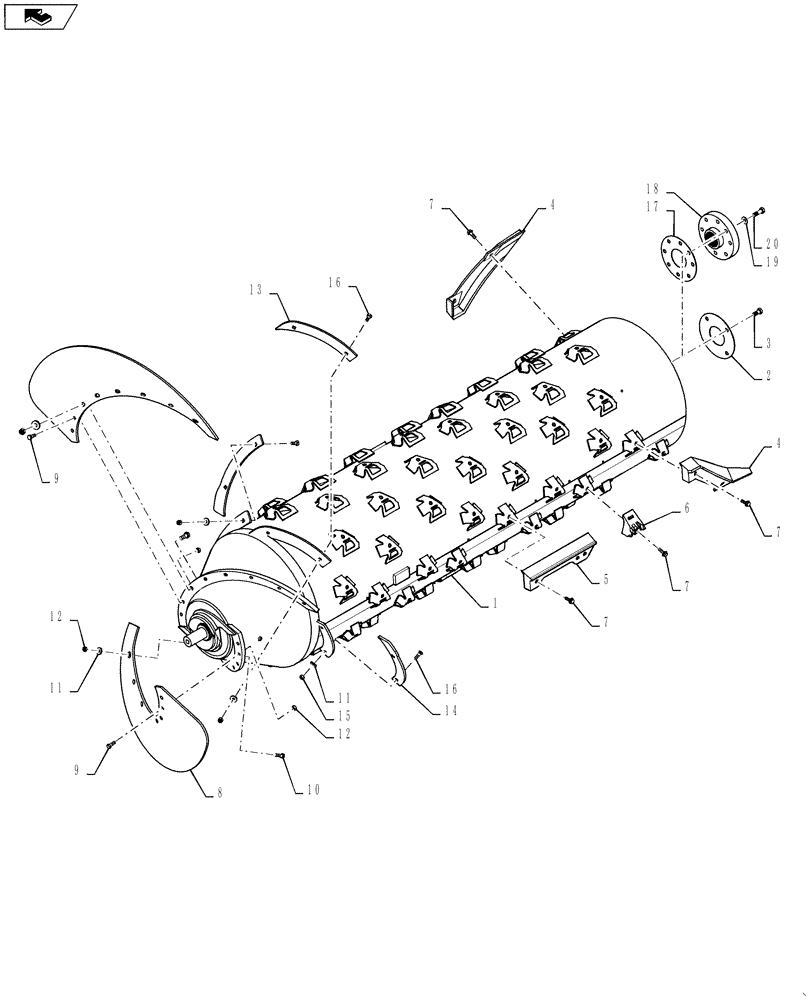

Запчасти Case IH 6130 (66.330.04) - ROTOR-CORN-SOYBEAN W/8 STRAIGHT SEPERATOR BARS (66) - THRESHING

87636594

ROTOR ASSY.

Complete Assembly

1шт.

1

NSS

NOT SOLD SEPARAT

Order Complete Above

1шт.

2

NSS

NOT SOLD SEPARAT

Not Serviced

1шт.

3

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

4

1327676C1

BAR

Helical Kicker

2шт.

5

1318976C2

BAR,Straight Seperator

Straight bar Separator

8шт.

6

84164540

RASP BAR

W/O Spike, Nodular Iron

58шт.

7

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

8

410668A3

IMPELLER

Inlet Flighting

2шт.

9

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

10

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

11

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

20шт.

12

199528A1

NUT

16шт.

13

84162516

EXTENSION

Intermediate

2шт.

14

84162517

EXTENSION

Inlet Flighting

2шт.

15

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.

16

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

8шт.

17

87619363

PLATE

Rotor Load Ring- 8 Bolt

1шт.

18

87619364

COUPLING

HD Rotor Drive 23 Tooth

1шт.

19

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

20

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

8шт.
