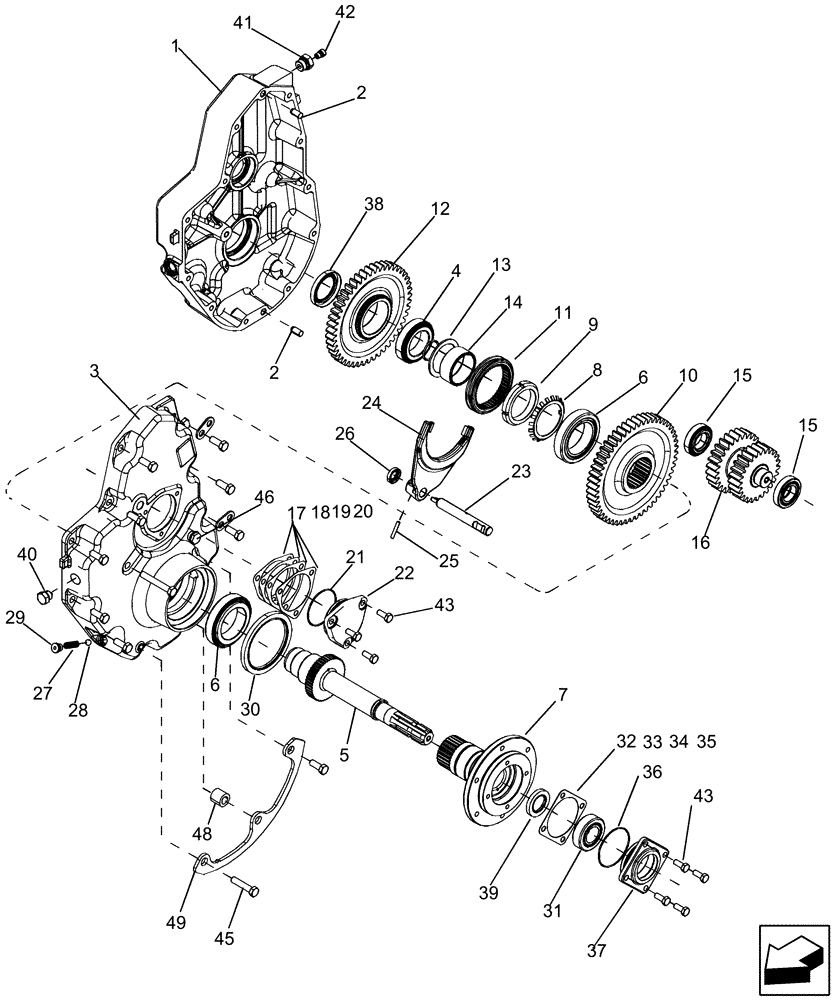

Запчасти Case IH 6130 (60.120.17) - GEARBOX ASSY, TWO SPEED HEADER DRIVE (60) - PRODUCT FEEDING

87751887

GEARBOX ASSY

Two Speed Header Drive, Incl 1 - 48

1шт.

87751887R

REMAN-GEARBOX

5130, 6130, 7130, All Tier 4,

1шт.

87751887C

CORE-GEARBOX

Return Number

1шт.

1

87569766

COVER

Two Speed Header Drive, Incl 2

1шт.

2

837-12025

DOWEL,M12 x 25

2шт.

3

87569765

COVER

Two Speed Header Drive

1шт.

4

87555831

BEARING ASSY,55mm ID x 90mm OD x 23mm W

1шт.

5

87719076

SHAFT ASSY.

Output, Two Speed Header Drive

1шт.

6

87525945

BEARING ASSY,70mm ID x 110mm OD x 26mm W

2шт.

7

87629126

SHAFT

Input, Two Speed Header Drive

1шт.

8

55-2014

LOCK WASHER

1шт.

9

54-2014

BEARING LOCK NUT

1шт.

10

87568819

GEAR

52T, Two Speed Header Drive

1шт.

11

87319310

COLLAR

Hi-Low Shift

1шт.

12

87568821

GEAR

47T, Two Speed Header Driven

1шт.

13

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

1шт.

14

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

15

87354344

BEARING ASSY,34.925 mm ID x 65.088 mm OD x 18.034 mm

2шт.

16

87319330

SHAFT

Counter, Two Speed Header Drive, 25T/26T

1шт.

17

87319333

SHIM

Bearing Case, 0.0765

1шт.

18

87319334

SHIM

Bearing Case, 0.127

1шт.

19

87319335

SHIM

Bearing Case, 0.178

1шт.

20

87319338

SHIM

Bearing Case, 0.762

1шт.

21

18438

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

22

84230061

COVER,51.8 mm ID x 80.67 mm OD x 17, 12 mm

Countershaft Bearing

1шт.

23

87319340

SHIFT RAIL

Hi-Low

1шт.

24

87319341

SHIFT RAIL

Fork, Hi-Low

1шт.

25

38-21622

PIN,6.35mm OD x 34.92mm L, Coiled

1шт.

26

87319344

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

Oil

1шт.

27

295537A1

SPRING

Detent Ball

1шт.

28

211-1014

BALL,7/16" Dia

1шт.

29

86598044

PLUG,Hex, M14 x 1.5 ORB

1шт.

30

87319308

OIL SEAL

Oil

1шт.

31

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

32

87319317

SHIM

Bearing Cage, 0.0765

1шт.

33

87319318

SHIM

Bearing Cage, 0.127

1шт.

34

87319319

SHIM

Bearing Cage, 0.178

1шт.

35

87319322

SHIM

Bearing Cage, 0.762

1шт.

36

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

37

87319316

CAGE

Output Shaft Bearing

1шт.

38

87319314

OIL SEAL

Oil

1шт.

39

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

Cross Shaft

1шт.

40

87108781

PLUG

1шт.

41

87520834

PLUG

1шт.

42

219-433

BREATHER,1/8"-27, Short

1шт.

43

87015733

BOLT,M10 x 1.5 x 31.58mm, Cl 10.9

7шт.

44

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

, Start Serial: Y9G002601

8шт.

44

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

, Serial Range: -Y9G002517

10шт.

45

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

, Start Serial: Y9G002601

3шт.

45

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

, Serial Range: -Y9G002517

1шт.

46

87524452

SIGHTGLASS

1шт.

47

86634393

BOLT,Hex, M12 x 80mm, Cl 10.9

1шт.

48

84183365

SPACER

, Start Serial: Y9G002601

2шт.

49

84195725

PLATE

, Start Serial: Y9G002601

1шт.
