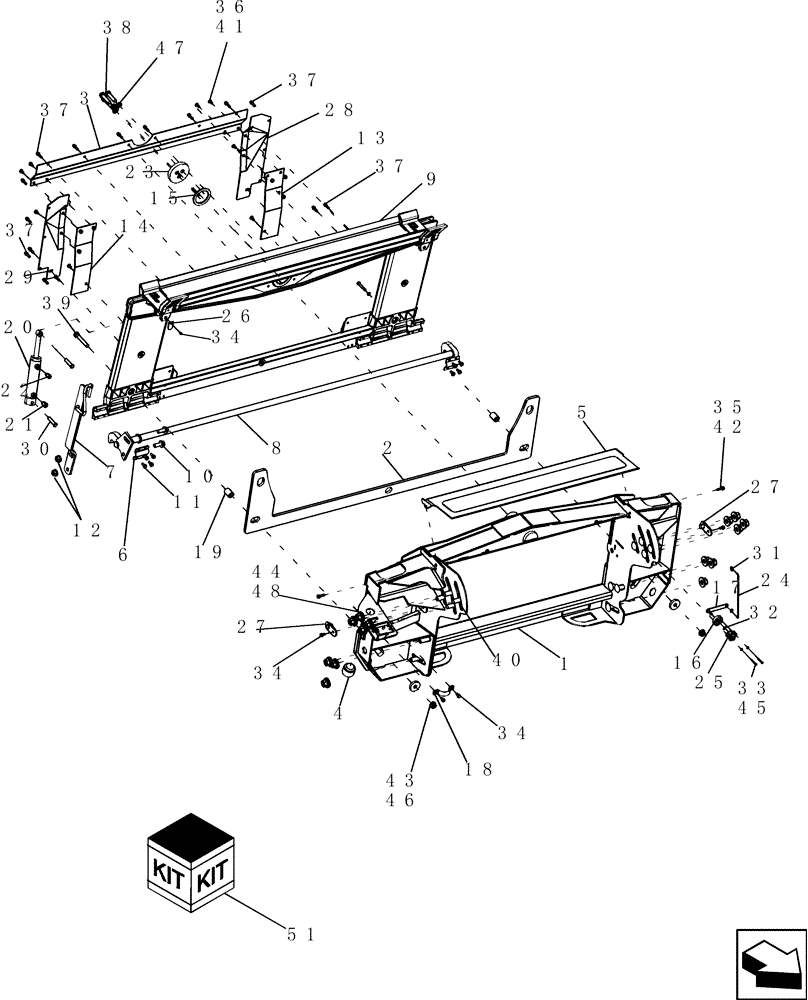

Запчасти Case IH 6130 (60.110.28) - FEEDER, LATERAL TILT ADAPTER, SINGLE SPEED (60) - PRODUCT FEEDING

1

84312879

ADAPTER

Feeder Half, Lateral Tilt *Contains Ref 1 Only*

1шт.

2

84392517

WEAR STRIP

FRONT SHEET

1шт.

3

87658628

DEFLECTOR

Crop Front

1шт.

4

87105683

CAP

Protection

1шт.

5

87312135

SHEET ASSY.

Top

1шт.

6

87107674

CLAMP

CLAMP

2шт.

7

84314118

LEVER

Front Frame

1шт.

8

84394232

LATCH

Front Frame

1шт.

9

84376765

FRAME

Front

1шт.

87693080

PLATE

Stripper Plates, EU Only, Not Shown

2шт.

10

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

12

87016581

FLANGE NUT,M16 x 2, CI 10

3шт.

13

84158878

DEFLECTOR

Crop Front, Right Hand

1шт.

14

84158872

DEFLECTOR

Crop Front, Left Hand

1шт.

15

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

WASHER, Thrust

1шт.

16

87362420

MOUNT

1шт.

17

87643243

SHAFT

1шт.

18

87107105

U-BRACKET

U-BRACKET

1шт.

19

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

2шт.

20

87282645

CYLINDER,Double Acting, 28mm Rod, 140mm Stroke

Hydraulic

1шт.

20

87282646

CYLINDER,Double Acting, 25mm Rod, 84mm Stroke

Hydraulic, EU Only

1шт.

21

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

1шт.

22

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

23

87283209

RETAINING PLATE

PLATE, Retaining

1шт.

24

87643245

LINK

1шт.

25

87330286

SENSOR

1шт.

26

87312141

PLATE

1шт.

27

87106719

BRACKET

BRACKET

2шт.

28

87658627

DEFLECTOR

Crop Front, Right Hand

1шт.

29

87658626

DEFLECTOR

Crop Front, Left Hand

1шт.

30

87312143

PIN,14mm OD x 68.5mm L

2шт.

31

9821714

CLIP

Rod End

2шт.

32

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

33

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

34

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.

35

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

36

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

37

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

18шт.

38

11119231

BOLT,M16 x 75mm, Cl 10.9

3шт.

39

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

40

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

41

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

42

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

43

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

44

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

45

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

46

913347

WASHER,M17 x 56mm OD x 11mm Thk

2шт.

47

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

48

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

50

87742285

WIRE HARNESS

Feeder Tilt Adapter (Not Shown)

1шт.
