(35.410.09) - HYDRAULICS - 1000 SERIES HEADER ADAPTER - (51/6130) (NA & ANZ)

Запчасти Case IH 6130 (35.410.09) - HYDRAULICS - 1000 SERIES HEADER ADAPTER - (51/6130) (NA & ANZ) (35) - HYDRAULIC SYSTEMS

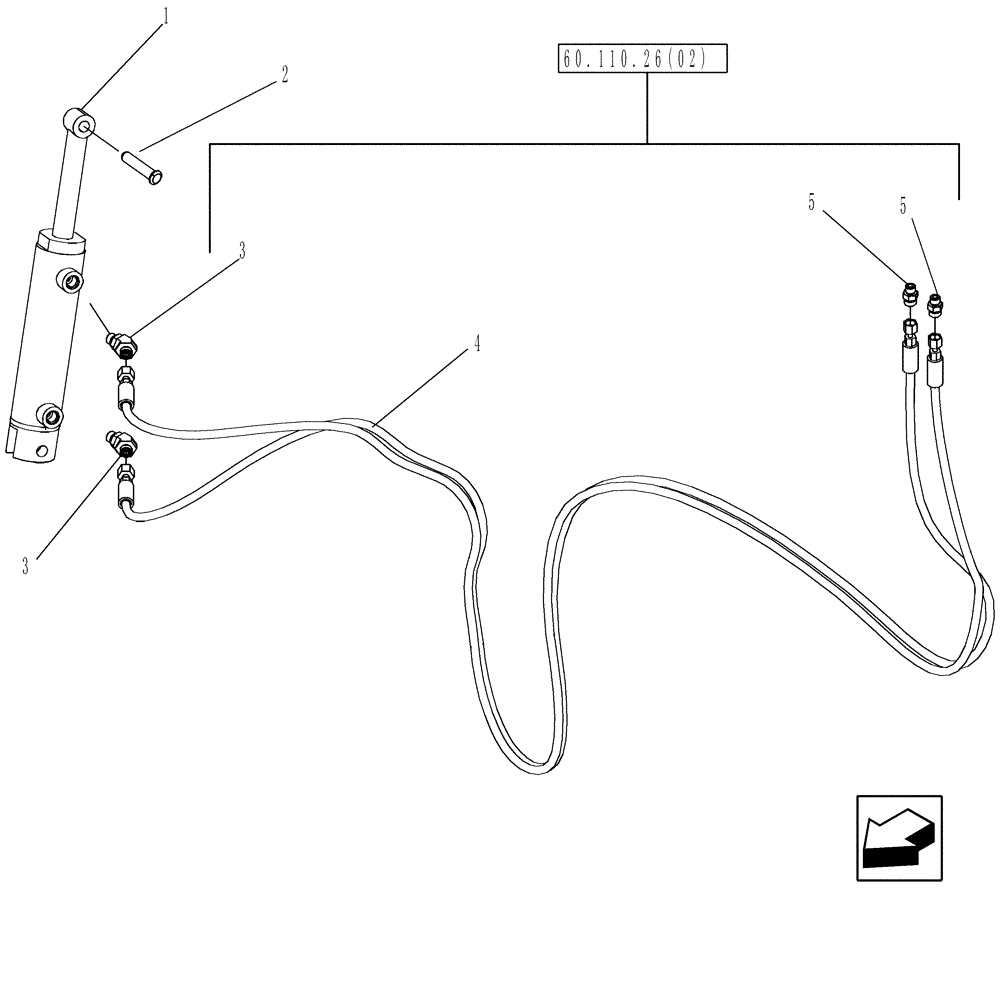

Схема запчастей Case IH 6130 - (35.410.09) - HYDRAULICS - 1000 SERIES HEADER ADAPTER - (51/6130) (NA & ANZ) (35) - HYDRAULIC SYSTEMS
3
2
60.110.26(02)
5
1
4
60.110.26 02
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87282646

CYLINDER,Double Acting, 25mm Rod, 84mm Stroke

1шт.

2

87312143

PIN,14mm OD x 68.5mm L

2шт.

3

700-374

45 ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

2шт.

4

87686652

HOSE ASSY.

Terrain Tracker

2шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

Выбрано товаров: 5
