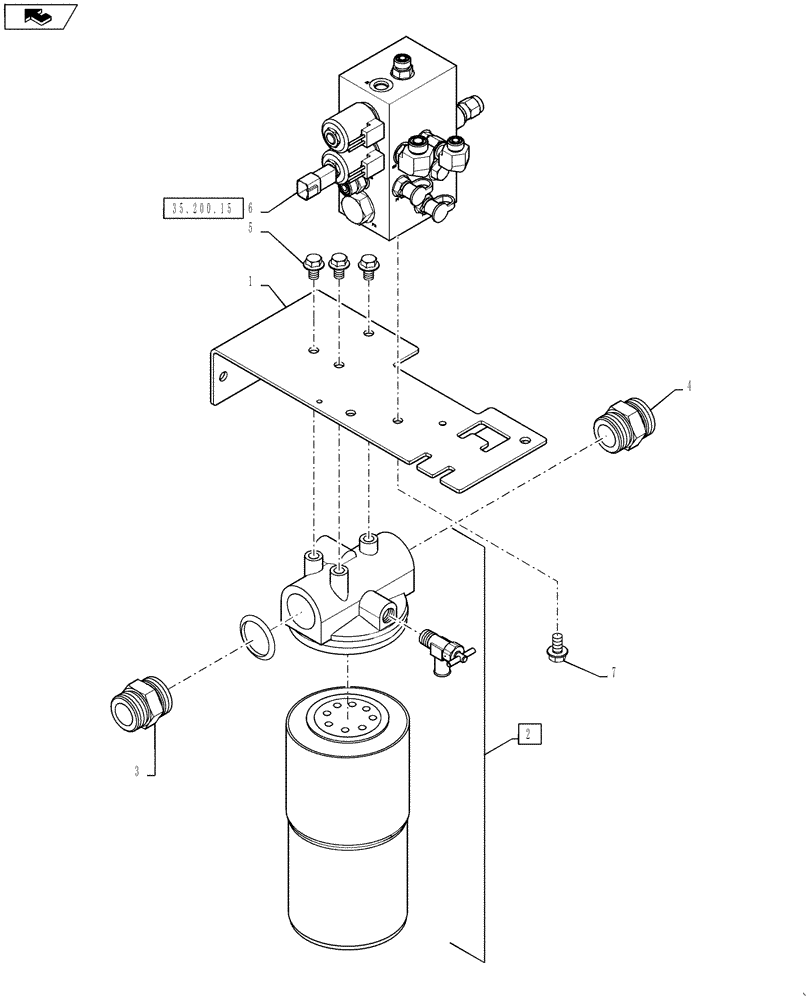

Запчасти Case IH 6130 (35.200.10) - FILTER ASSEMBLY, OIL, RETURN MOUNTING (35) - HYDRAULIC SYSTEMS

1

84160487

BRACKET

1шт.

2

87689482

FILTER ASSY

1шт.

2

A177605

HYDRAULIC OIL FILTER

Component of ref. 2

1шт.

2

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Component of ref. 2

1шт.

2

301803R1

SHUT-OFF VALVE

Component of ref. 2

1шт.

3

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

4

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

5

87021006

BOLT,M10 x 26.4mm, Cl 10.9

3шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.
