Запчасти Case IH 6130 (14.100.AR[02]) - GEAR SET, PTO (14) - MAIN GEARBOX & DRIVE

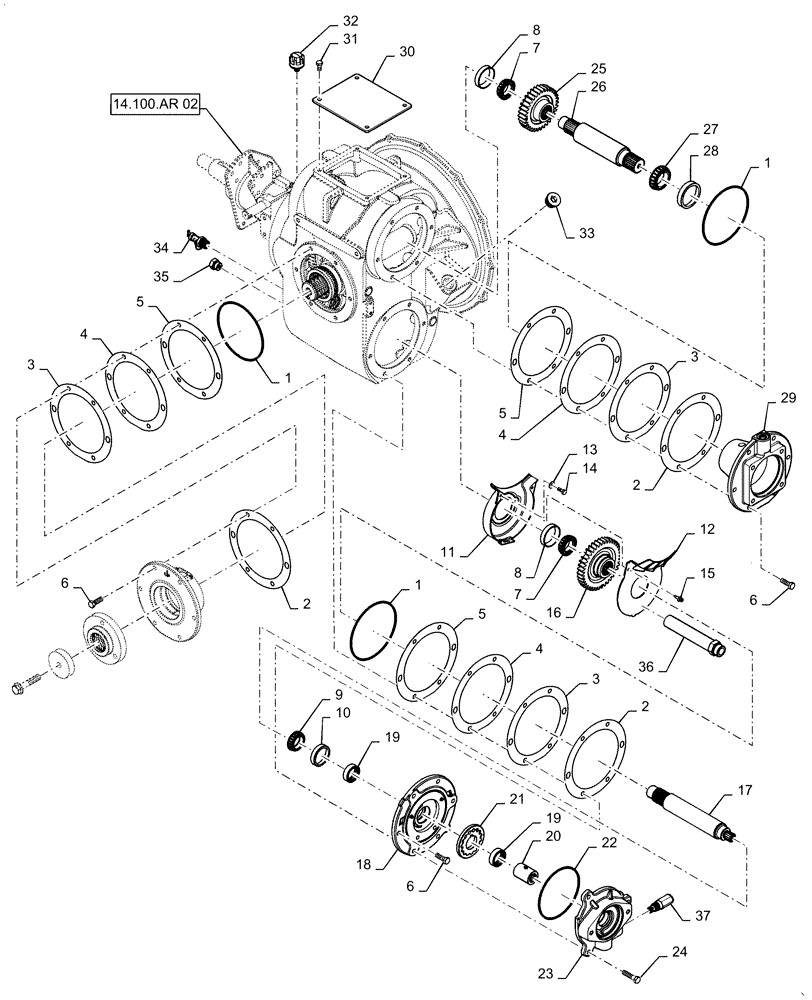

Схема запчастей Case IH 6130 - (14.100.AR[02]) - GEAR SET, PTO (14) - MAIN GEARBOX & DRIVE
11
18
5
28
6
4
7
14
9
20
24
25
8
10
27
37
26
4
22
13
1
5
32
19
33
8
3
36
2
17
21
6
15
3
34
4
3
16
2
5
35
14.100.ar 02
1
1
29
6
30
19
31
2
7
12
23

Артикул

Название

Примечание

Количество

1

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

3шт.

2

84589384

SHIM,184mm ID x 240.5mm OD x 0.13mm Thk

243mm OD x 184mm ID x .127mm

3шт.

3

84589385

SHIM,184mm ID x 240.5mm OD x 0.18mm Thk

243mm OD x 184mm ID x .178mm

3шт.

4

84589386

SHIM,184mm ID x 240.5mm OD x 0.25mm Thk

243mm OD x 184mm ID x .254mm

3шт.

5

84589387

SHIM,184mm ID x 240.5mm OD x 0.76mm Thk

243mm OD x 184mm ID x .762mm

3шт.

6

84146883

BOLT,Hex, M12 x 35mm, Cl 10.9

M12 x 35mm, Full Thread, 10.9

23шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

65.113mm OD x 13.97mm

2шт.

9

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

1шт.

10

61801C1

BEARING CUP,63mm OD x 13.5mm W

63mm OD x 13.5

1шт.

11

84148216

PROTECTION PLATE

PFC Gear, Front

1шт.

12

84148217

PROTECTION PLATE

PFC Gear, Rear

1шт.

13

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

86639144

BOLT,Hex, Lock, M8 x 20, Cl 10.9

2шт.

15

87348536

RIVET,6.4mm OD x 22.8mm L

Plastic Screw, 6.4mm OD

2шт.

16

84141963

GEAR

PFC Pump, 39 Tooth

1шт.

17

84145261

SHAFT

PFC Pump Drive

1шт.

18

84599117

CARRIER

Bearing, PFC

1шт.

19

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

2шт.

20

84218385

COUPLING,14T

PFC Pump

1шт.

21

84145259

GEAR SET

Gerotor

1шт.

22

272712

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

23

84148219

CARRIER

PFC Pump

1шт.

24

87015540

BOLT,Hex, M12 x 50mm, Cl 10.9

3шт.

25

84141965

GEAR

Hydro Pump, 33 Tooth

1шт.

26

84142987

SHAFT

Hydro Pump Drive

1шт.

27

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

28

67526

BEARING CUP,77.7mm OD x 15.08mm Thk

77.788mm OD x 15.08mm

1шт.

29

84589396

BEARING CARRIER

Hydro Pump

1шт.

30

84146062

PLATE

Top Cover

1шт.

31

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

4шт.

32

1971726C1

BREATHER,1/4" - 18

1шт.

33

86583482

HEX SOCKET PLUG,M33 x 2

1шт.

34

87485712

DRAINCOCK/TAP SUPPLY

1шт.

35

87108781

PLUG

M22

1шт.

36

84253774

FILTER STRAINER,1-5/16" - 12, 194mm L, 149 Micron

Suction

1шт.

37

84266245

VALVE PRESSURE RELIE

7/8"-14

1шт.

Выбрано товаров: 37
