Запчасти Case IH 6130 (10.500.AG[02]) - DEF/ ADBLUE, DEF LINES, SUPPLY, CONNECTING, EXHAUST SYSTEM (10) - ENGINE

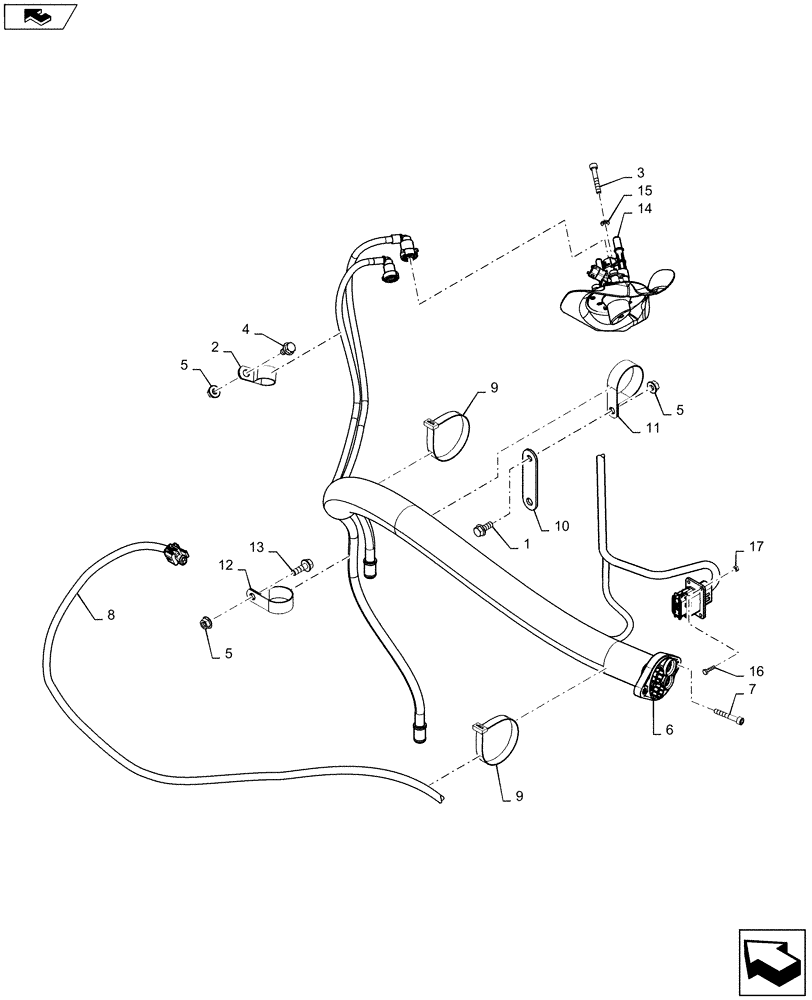

Схема запчастей Case IH 6130 - (10.500.AG[02]) - DEF/ ADBLUE, DEF LINES, SUPPLY, CONNECTING, EXHAUST SYSTEM (10) - ENGINE
5
6
4
1
15
11
home
7
17
9
5
16
2
5
10
14
3
8
13
9
12

Артикул

Название

Примечание

Количество

1

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

2

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

3

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

5шт.

4

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

6

84293029

TUBE

DEF/ADBLUE Bundle

1шт.

7

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

8

84499591

WIRE HARNESS

Dosing Unit

1шт.

9

84266050

CABLE TIE,384mm L, Polyamide

1шт.

10

84519694

SUPPORT

DEF/ADBLUE Bundle

1шт.

11

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

14

47511724

MODULE

Exhaust DEF/ADBLUE Dosing Injector

1шт.

14

47511724R

REMAN-INJEC EMISSION

Exhaust DEF/ADBLUE Dosing

1шт.

14

47511724C

CORE-INJEC EMISSION

Return Number

1шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

16

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

17

100012

NUT,M4 x 0.7, Cl 8

2шт.

Выбрано товаров: 19
