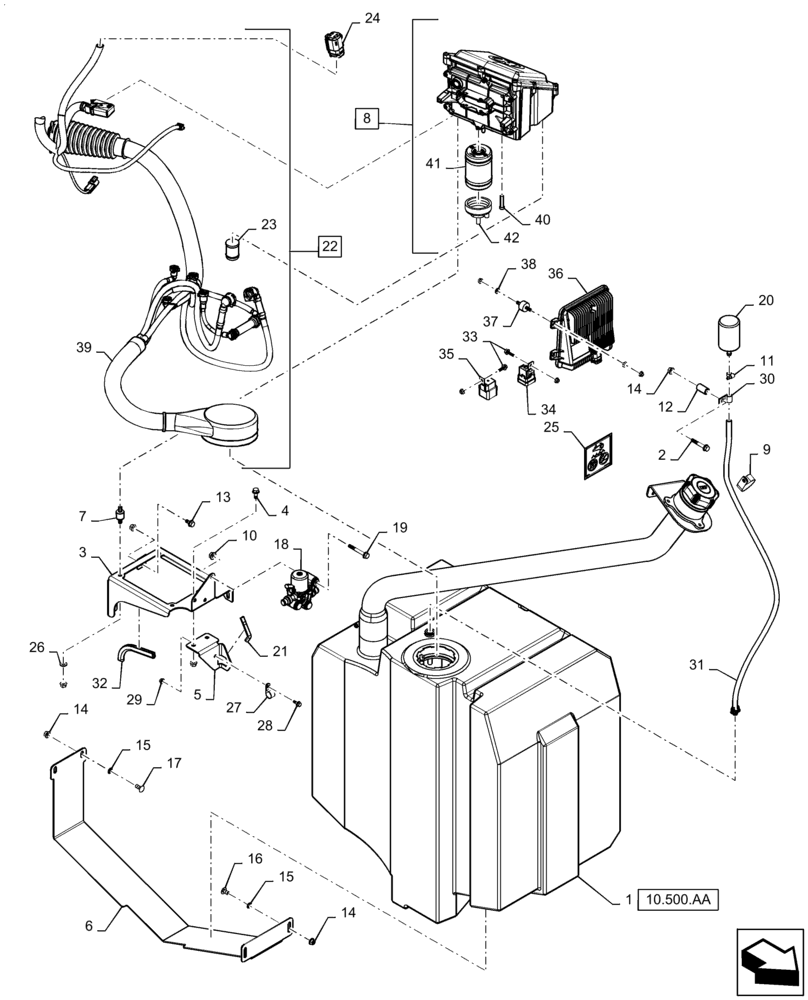

Запчасти Case IH 6130 (10.500.AD[02]) - DEF/ ADBLUE, DEF LINES, DEF TANK, MODULE (10) - ENGINE

1

84151000

TANK

DEF/ADBLUE

1шт.

2

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

3

84469953

BRACKET

DEF/ADBLUE Module Mount

1шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

5

84422163

BRACKET

Filter Mount

1шт.

6

84230069

SUPPORT

Support, DEF/ADBLUE Tank Bottom

1шт.

7

84558714

SHOCK ABSORBER

Module Mount

4шт.

8

84246892

MODULE

DEF/ADBLUE Supply, Incl 40 - 42

1шт.

84246892R

REMAN-MODULE

Reman

1шт.

84246892C

CORE-MODULE

Return Core

1шт.

9

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

11

86625041

HOSE CLAMP,11.2mm - 19.8mm

1шт.

12

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

Support

1шт.

13

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

15

131-440

PUSH-ON NUT

4шт.

16

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

17

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

18

84151635

HEATER VALVE

DEF/ADBLUE

1шт.

19

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

20

47437399

FUEL FILTER

DEF/ADBLUE Tank Vent

1шт.

21

86516805

SOFT TRIM,31-3/4" L

Cut From Bulk, .2 Ft

1шт.

22

84293027

TUBE

DEF/ADBLUE Fuel Line W/ Heat, Incl 23, 39

1шт.

23

84587401

FILTER

Inline Screen Repair Kit, Services 23

1шт.

24

84499598

WIRE HARNESS

DEF/ADBLUE DENOX

1шт.

25

84284896

DECAL,DEF TANK identification label

DEF/ADBLUE Identification Label

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

27

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

19mm Insulated

1шт.

28

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

29

86050300

FLANGE NUT,M6 x 1.0, Cl 10

12шт.

30

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

47567176

HOSE

Vent

1шт.

32

1327979C1

MOLDING

Edge Trim

1шт.

33

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

34

86508603

RELAY,12V

12 V Sealed W/ Bracket, 5 Spade

2шт.

35

84261547

RELAY

24 V, Sealed W/ Bracket, 5 Spade

1шт.

36

84383005

CONVERTER,12V To 24V

12V To 24V

1шт.

37

84341086

DAMPER,M6 x 51mm, 25mm OD

Converter Mount

4шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

39

84368623

WIRE HARNESS

Harness, DEF/ADBLUE Level

1шт.

40

84247272

FILTER,In-Line

DEF/ ADBLUE, Insert, 30mm OAL

1шт.

41

84254852

FILTER

DEF/ ADBLUE, Module, Primary

1шт.

42

47401714

FILTER HEAD

Filter Cap

1шт.
