Запчасти Case IH 6130 (10.450.AE [01]) - AIR COMPRESSOR, ASSEMBLY- 5130 W/NEF ENGINE (10) - ENGINE

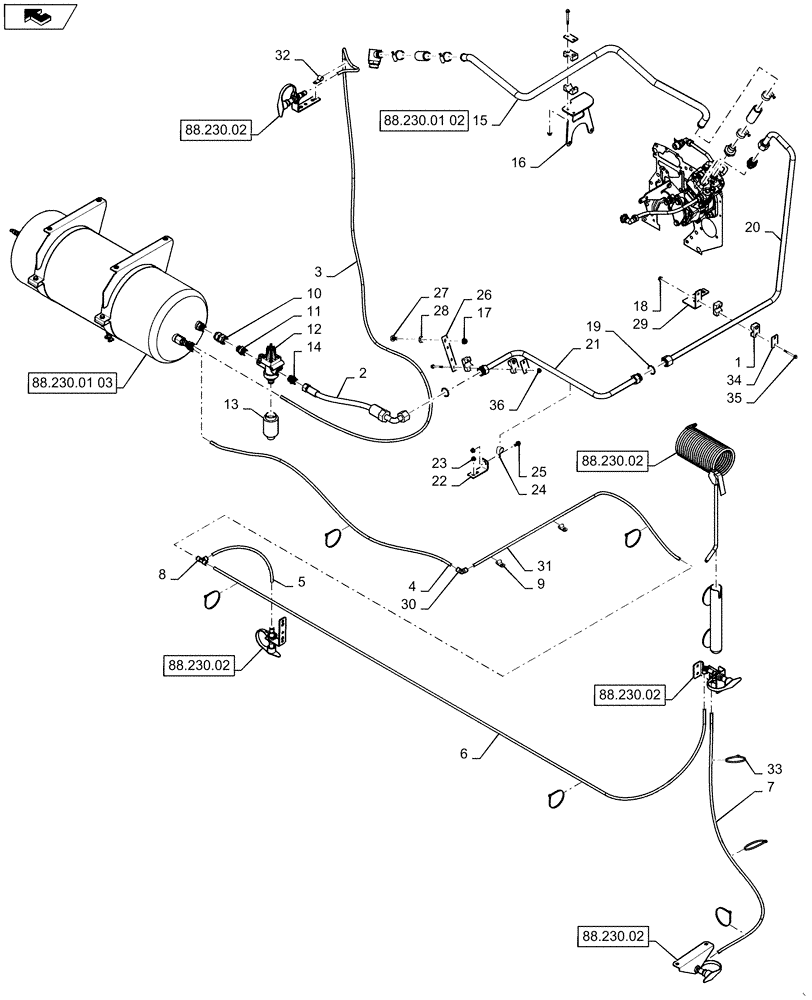

Схема запчастей Case IH 6130 - (10.450.AE [01]) - AIR COMPRESSOR, ASSEMBLY- 5130 W/NEF ENGINE (10) - ENGINE
30
34
22
3
19
10.450.ae 04
10.450.ae 04
17
12
18
35
10.450.ae 02
25
23
33
15
29
16
36
2
32
21
31
5
10.450.af
10.450.ae 04
4
8
27
11
26
6
1
home
20
88.230.02
13
10
24
14
10.450.ae 04
7
28
9

Артикул

Название

Примечание

Количество

1

86900723

CLAMP

2шт.

2

84342714

AIR HOSE

Tube To Reservoir

1шт.

3

84372640

AIR HOSE

Reservoir To Quick Disconnect

1шт.

4

84372643

AIR HOSE

Reservoir To Midship Tee

1шт.

5

84176521

HOSE

Midship Tee To Midship Quick Disconnect

1шт.

6

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee To Operators Plate Quick Disconnect

1шт.

7

84216054

HOSE

Operators Platform To Undercab Quick Disconnect

1шт.

8

84175931

HYD CONNECTOR

Tee, Push Connect

1шт.

9

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

10

87751400

TUBE

1шт.

11

9516263

FITTING

1шт.

12

466053

VALVE PRESSURE RELIE

Control

1шт.

13

87590733

MUFFLER

Air Unloader Valve

1шт.

14

87538605

HYD CONNECTOR

Straight

1шт.

15

84527102

TUBE

Intake To Compressor

1шт.

16

84527242

SUPPORT

Air Tube

1шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

19

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

84342704

RIGID TUBE

Compressor To Union

1шт.

21

84342705

RIGID TUBE

Union To Hose

1шт.

22

87549264

SUPPORT TUBE,112.4 mm L

Tube Bundle Center

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

24

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

26

84527246

BRACKET

1шт.

27

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

28

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

29

84527251

BRACKET

1шт.

30

84372662

FITTING

Elbow Union 3/8 Tube

1шт.

31

84372644

AIR HOSE

Reservoir To Midship

1шт.

32

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

33

86566990

CABLE TIE,292mm OAL x 4.8mm W

7шт.

34

86900727

COVER

2шт.

35

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

4шт.

Выбрано товаров: 35
