Запчасти Case IH 6130 (10.419.AE) - MOTOR, FAN, SCREEN (10) - ENGINE

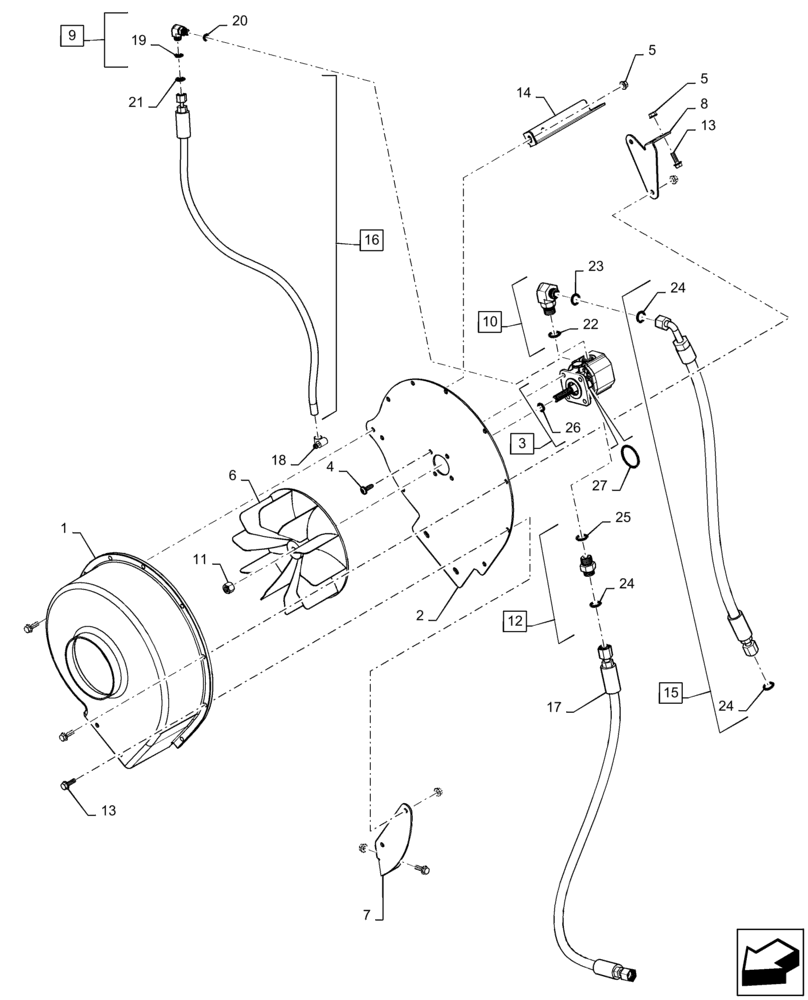

Схема запчастей Case IH 6130 - (10.419.AE) - MOTOR, FAN, SCREEN (10) - ENGINE
15
3
22
26
8
11
27
4
7
14
17
13
24
16
23
25
9
20
2
24
10
1
21
13
24
5
6
18
12
19
5

Артикул

Название

Примечание

Количество

1

87479341

HOUSING

Fan, Vacuum

1шт.

2

87596053

BRACKET

Plate, Suction Fan

1шт.

3

87359661

MOTOR, HYDRAULIC,GEAR, 5.29 CC

Suction Fan, Incl 26

1шт.

4

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

6

47371876

FAN

Suction Fan

1шт.

7

87596066

BRACKET

Motor Plate, Lower

1шт.

8

87596068

BRACKET

Motor Plate, Upper

1шт.

9

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl 19 - 20

1шт.

10

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 22 - 23

1шт.

11

87366201

NUT

1/2"

1шт.

12

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 24 - 25

1шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

14шт.

14

84270855

BRACKET

Suction Fan

1шт.

15

84312933

HOSE ASSY.,12.7mm ID x 865mm L, SAE 100R17

Fan Motor To Signal, Incl 24

1шт.

16

84472143

HYDRAULIC HOSE,9.53mm ID x 820mm L, SAE 30R2

Fan Motor Drain, Incl 21

1шт.

17

87609428

HOSE ASSY.

Fan Motor Supply

1шт.

18

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

122067

KEY

Motor Shaft

1шт.

27

87341607

SEAL KIT

Hydraulic Motor

1шт.

Выбрано товаров: 27
