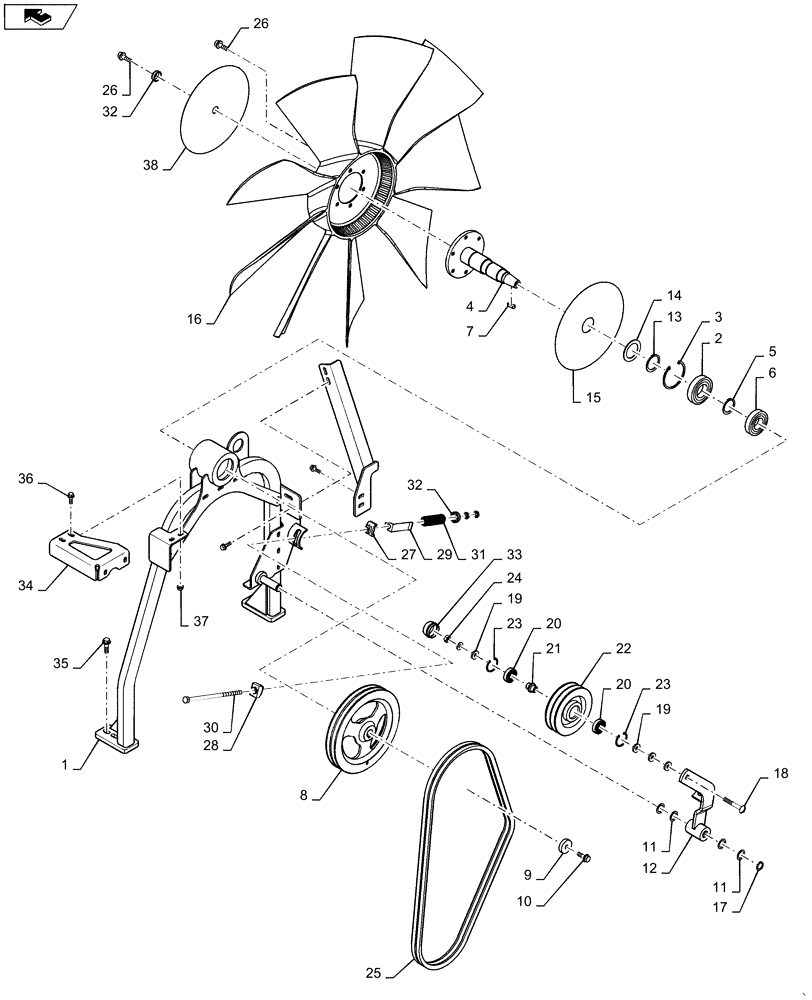

Запчасти Case IH 6130 (10.414.AC[02]) - ENGINE FAN DRIVE 6130/7130 (10) - ENGINE

1

84148166

SUPPORT

1шт.

2

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

300633

SNAP RING,M80, Internal

1шт.

4

84120995

SHAFT

1шт.

5

370006

SNAP RING,M40, Ext

1шт.

6

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

84557659

PULLEY,253.9mm OD

Engine Fan

1шт.

9

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

12

87540958

ARM ASSY.

1шт.

13

370007

SNAP RING,M45, Ext

1шт.

14

84120742

THRUST WASHER,45.3mm ID x 65mm OD x 2mm Thk

1шт.

15

84120743

DISC

1шт.

16

84444510

FAN,9 Blades, 914.4mm OD

6130 Only

1шт.

16

84424005

FAN

7130 Only

1шт.

17

370024

CIRCLIP,M20, Ext

1шт.

18

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

1шт.

19

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

20

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

21

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

22

87533880

PULLEY,144mm OD

1шт.

23

300644

SNAP RING,M40, Internal

2шт.

24

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

25

84150266

BELT

2 Belts Included

1шт.

26

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

27

442398

GUIDE

1шт.

28

754131

GUIDE

1шт.

29

84188560

BRACKET

1шт.

30

9514334

ROD,M10 x 225mm

1шт.

31

84069932

COMPRESSION SPRING,25mm OD x 100mm L

1шт.

32

356728

CUP

2шт.

33

87540959

CAP

1шт.

34

84295458

BRACKET

1шт.

35

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

36

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

37

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

38

84120744

DISC

1шт.

39

84339616

BRACKET

1шт.

40

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

41

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

42

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
