Запчасти Case IH 6130 (10.400.BI[02]) - COOLING CIRCUIT, 6130/7130 (10) - ENGINE

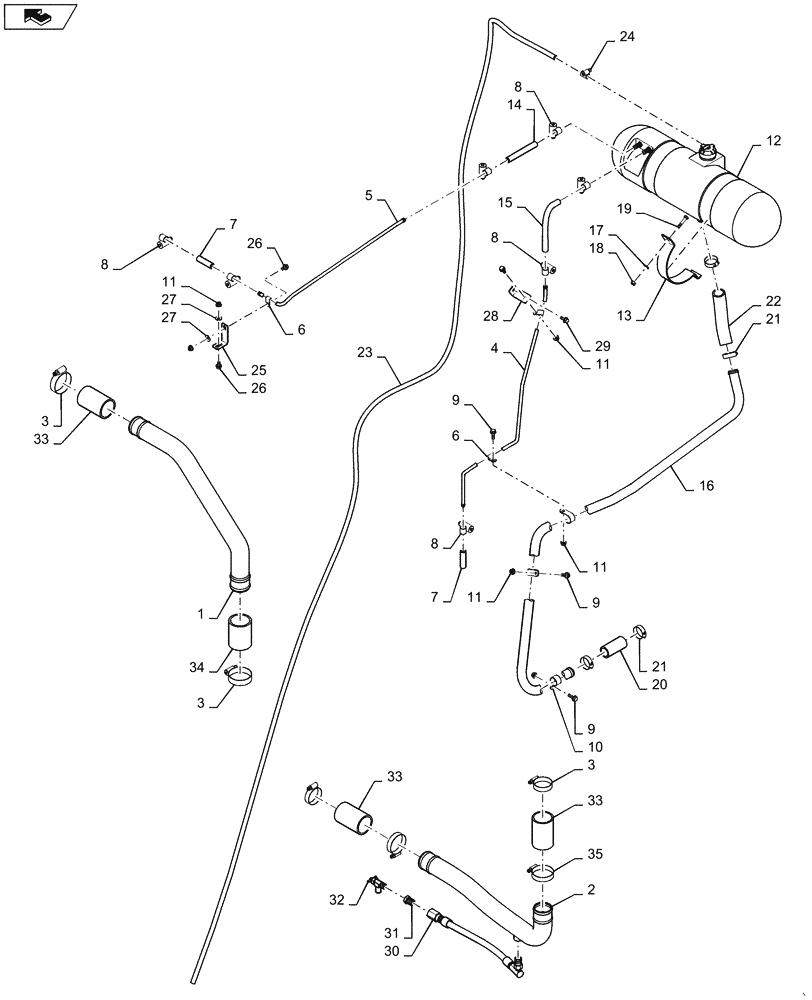

Схема запчастей Case IH 6130 - (10.400.BI[02]) - COOLING CIRCUIT, 6130/7130 (10) - ENGINE
11
24
33
6
8
12
33
6
14
25
10
9
7
8
27
8
28
9
7
11
26
18
9
30
20
21
11
3
29
4
16
33
15
13
34
19
21
1
3
5
22
31
27
32
11
2
23
home
35
26
3
8
17

Артикул

Название

Примечание

Количество

1

84151494

TUBE

Upper Radiator

1шт.

2

84151493

TUBE

Lower Radiator

1шт.

3

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

4шт.

4

84271695

RIGID TUBE

Engine Vent

1шт.

5

84271696

RIGID TUBE

Radiator Vent

1шт.

6

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

7

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

Deaeration Connection

2шт.

8

244358

HOSE CLIP,0.44" - 0.78"

8шт.

9

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

10

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

12

87670349

RESERVOIR, COOLANT E

1шт.

13

84442536

CLAMP

2шт.

14

87421440

HOSE

Deaeration Connection

1шт.

15

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

Deaeration Connection

1шт.

16

84364060

RIGID TUBE

Deaeration

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

19

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

20

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

To Airbox

1шт.

21

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

22

84271697

HOSE,28.6mm ID x 200mm L, SAE20R1

1шт.

23

84364059

HOSE ASSY.,12.7mm ID x 3850mm L

1шт.

24

86625022

HOSE CLAMP,6.3mm - 15.7mm

1шт.

25

84469934

MOUNTING PLATE

1шт.

26

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

27

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

28

84279830

BRACKET

1шт.

29

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

30

84311373

HOSE ASSY.,12.7mm ID x 400mm L, SAE 100R1

Radiator Drain

1шт.

31

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

32

301803R1

SHUT-OFF VALVE

90 Degree

1шт.

33

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

3шт.

34

9833673

HOSE,60.00 mm ID x 90.00 mm

1шт.

35

214-3248

HOSE CLAMP,57mm - 79mm

Optional Replacement For Original Crimp Style Bands

4шт.

Выбрано товаров: 35
