Запчасти Case IH 6130 (10.400.BI[01]) - COOLING CIRCUIT, 5130 (10) - ENGINE

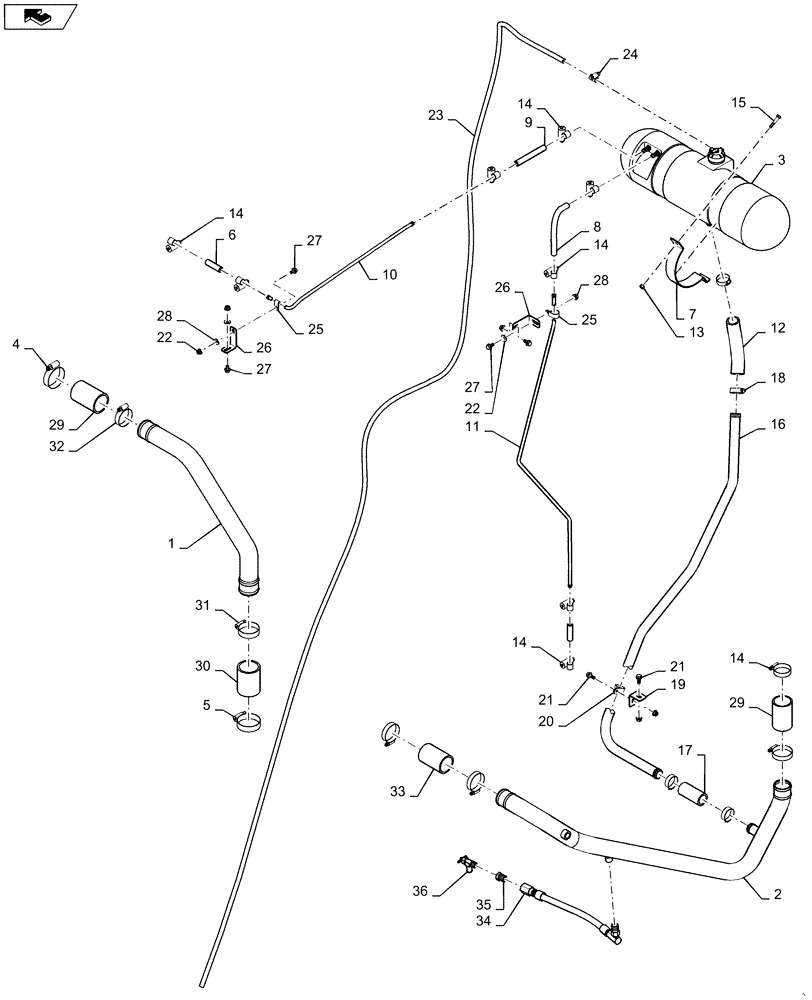

Схема запчастей Case IH 6130 - (10.400.BI[01]) - COOLING CIRCUIT, 5130 (10) - ENGINE
17
2
14
8
20
15
11
27
32
26
14
23
14
18
34
14
22
home
27
29
21
30
25
21
9
3
4
5
10
1
19
22
24
16
7
25
12
31
28
33
26
14
27
6
28
35
13
36
29

Артикул

Название

Примечание

Количество

1

84255125

TUBE

Upper Radiator Tube

1шт.

2

84255129

TUBE

Lower Radiator Tube

1шт.

3

87670349

RESERVOIR, COOLANT E

1шт.

4

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

3шт.

5

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

6

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

2шт.

7

84442536

CLAMP

2шт.

8

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

To Deaeration Tank

1шт.

9

87421440

HOSE

To Deaeration Tank

1шт.

10

84271696

RIGID TUBE

Radiator Vent

1шт.

11

84279827

TUBE

Engine Vent

1шт.

12

84271697

HOSE,28.6mm ID x 200mm L, SAE20R1

Deaeration Connection

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

14

244358

HOSE CLIP,0.44" - 0.78"

8шт.

15

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

16

84279826

TUBE

1шт.

17

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

1шт.

18

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

19

84279830

BRACKET

1шт.

20

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

23

84364059

HOSE ASSY.,12.7mm ID x 3850mm L

Deaeration Connection

1шт.

24

86625022

HOSE CLAMP,6.3mm - 15.7mm

1шт.

25

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

26

84469934

MOUNTING PLATE

Deaeration Support

2шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

28

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

29

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

2.25 ID

1шт.

30

87577140

RADIATOR HOSE,44.50mm ID x 100mm

1шт.

31

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

32

214-3248

HOSE CLAMP,57mm - 79mm

1шт.

33

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

1шт.

34

84311373

HOSE ASSY.,12.7mm ID x 400mm L, SAE 100R1

Radiator Drain

1шт.

35

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

36

301803R1

SHUT-OFF VALVE

90 Degree

1шт.

Выбрано товаров: 36
