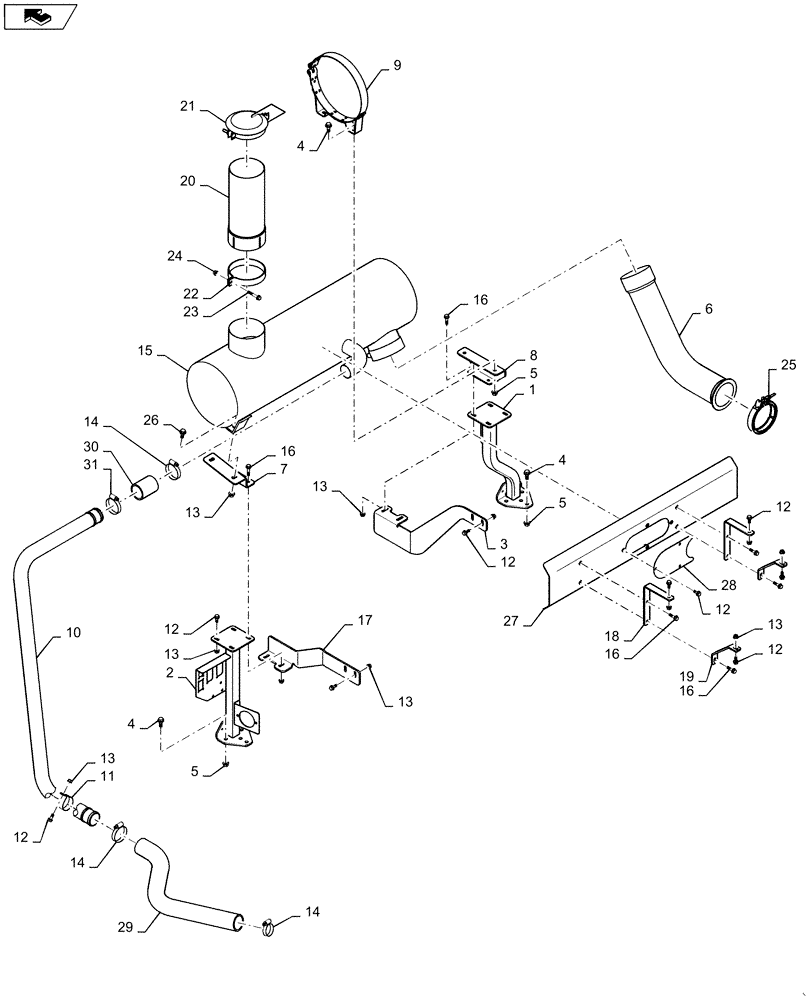

Запчасти Case IH 6130 (10.254.AI[03]) - EXHAUST ASSEMBLY, 61/7130 T2 (10) - ENGINE

1

84354600

SUPPORT

Front, Muffler

1шт.

2

84528292

SUPPORT

Rear, Muffler

1шт.

3

84353663

SUPPORT

Front, Muffler

1шт.

4

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

10шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

10шт.

6

84324778

EXHAUST SYSTEM PIPE

6130 T2 Only, Exhaust Inlet

1шт.

6

84401662

EXHAUST SYSTEM PIPE

7130 T2 Only, Exhaust Inlet

1шт.

7

84564398

SUPPORT

6130 T2 Only

1шт.

7

84321405

SUPPORT

7130 T2 Only

1шт.

8

84321403

SUPPORT

1шт.

9

84324432

BRACKET,228.6mm

1шт.

10

84403327

AIR INTAKE TUBE

1шт.

11

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

14шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

15шт.

14

86625019

HOSE CLAMP,44mm - 67mm

3шт.

15

87711333

MUFFLER

1шт.

16

87030775

BOLT,M8 x 38.1mm, Cl 10.9

6шт.

17

84355505

SUPPORT

1шт.

18

84383393

BRACKET

2шт.

19

84383389

BRACKET

2шт.

20

84361539

TUBE

1шт.

21

84594139

COVER,5" ID, High Temperature

1шт.

22

84154398

CLAMP,127mm ID

1шт.

23

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

24

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

25

87487061

CLAMP,116.9mm - 118.2mm

6130 T2 Only

1шт.

25

87639007

CLAMP

7130 T2 Only

1шт.

26

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

27

84383401

SHIELD

1шт.

28

84383411

COVER

1шт.

29

84396101

HOSE

1шт.

30

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

1шт.

31

86625019

HOSE CLAMP,44mm - 67mm

1шт.
