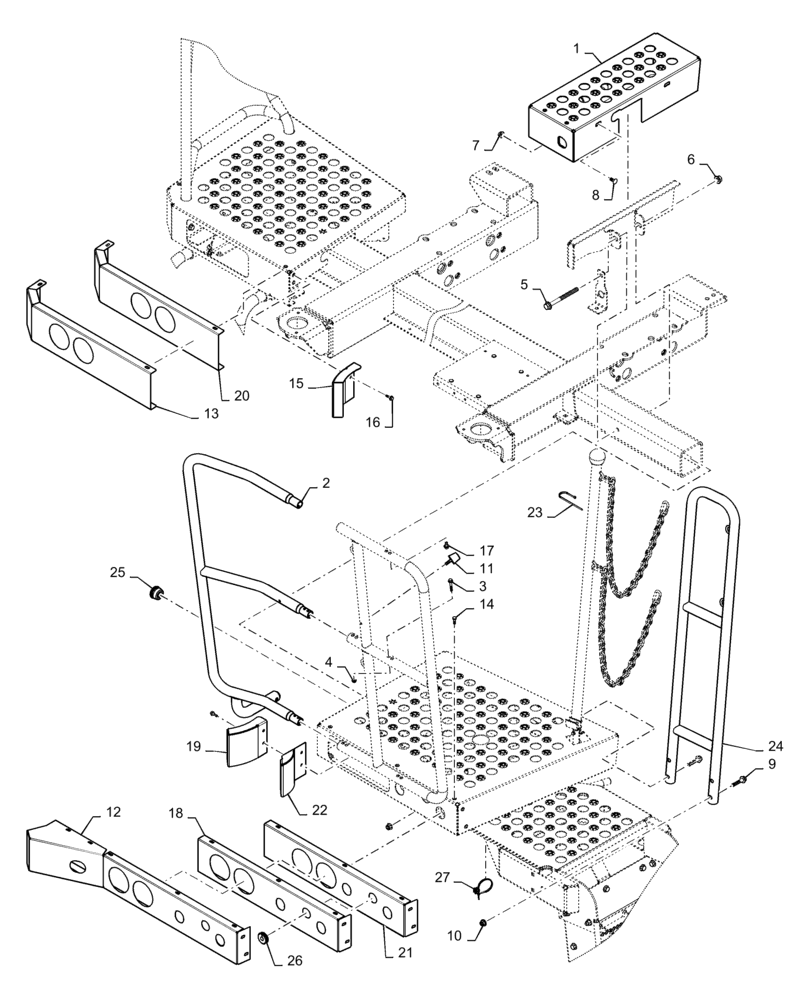

Запчасти Case IH 6130 (90.118.AX[04]) - EXTENSION, OPERATORS LADDER, FRONT, LH, WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84579812

PLATFORM

Deck Extension, Wide

1шт.

2

84562879

HANDRAIL

Extension, LH

1шт.

3

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

4шт.

4

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

4шт.

5

87742362

BOLT,M12 x 130mm, Cl 10.9

1шт.

6

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

8

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

9

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

6шт.

10

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

6шт.

11

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

1шт.

12

84577838

COVER

Operators Deck, LH

1шт.

13

84577847

COVER

Operators Deck, RH

1шт.

14

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

13шт.

15

84580238

BRACKET

Deck, RH

1шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

17

87752074

SCREW,HWH, M8 x 1.25 x 16mm

1шт.

18

84577842

COVER

Front Extension

1шт.

19

84578930

BRACKET

Mid, LH

1шт.

20

84577845

COVER

Mid, RH

1шт.

21

84577840

COVER

Mid, LH

1шт.

22

84578928

BRACKET

Deck Support

1шт.

23

86566989

CABLE TIE,208mm L

4шт.

24

47403833

HANDRAIL

Deck, Rear

1шт.

25

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

41.1mm OD x 19.05mm ID

1шт.

26

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

1шт.

27

47395250

CABLE TIE,200mm L

Tie W/ Edge Clip

1шт.
