(90.118.AX[03]) - RAIL ASSY, PLATFORM, REAR

Запчасти Case IH 6130 (90.118.AX[03]) - RAIL ASSY, PLATFORM, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

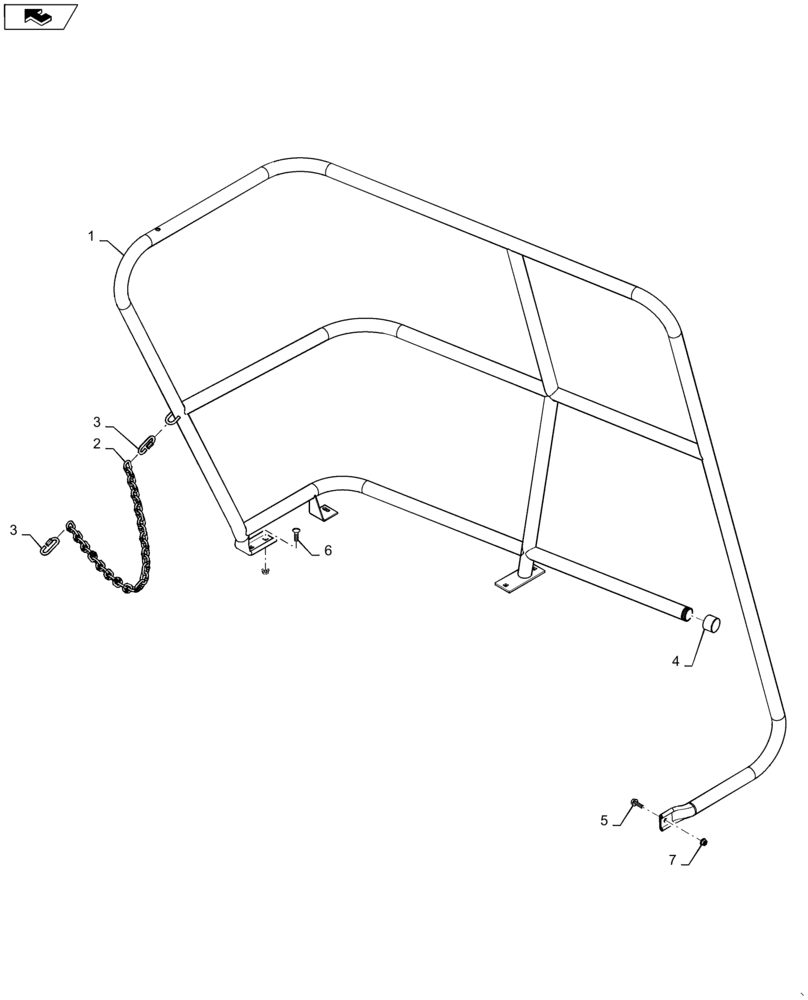

Схема запчастей Case IH 6130 - (90.118.AX[03]) - RAIL ASSY, PLATFORM, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
3
1
3
5
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87689356

RAIL ASSY.

Service Deck, RH

1шт.

2

87109887

CHAIN,807.32mm L

Ladder Gate

1шт.

3

87107072

CHAIN LINK,44.299mm Pitch

Chain Quick Connect

2шт.

4

87638219

CAP

Vinyl, End Plug

1шт.

5

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

6

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

5шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

Выбрано товаров: 7
