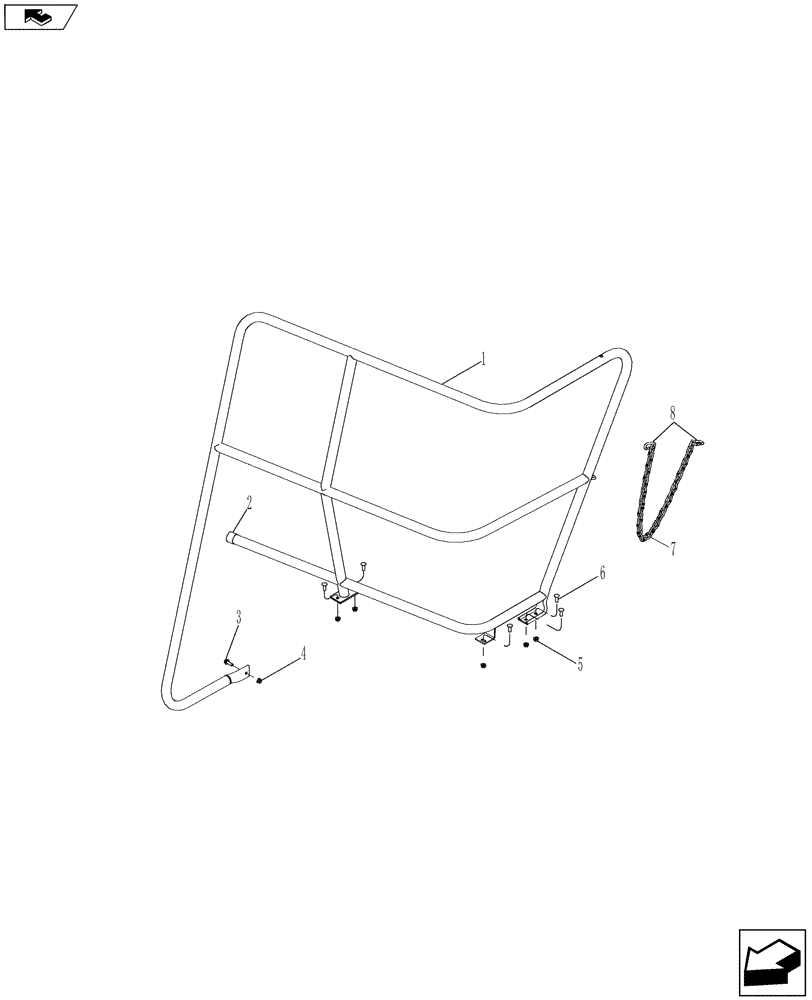

Запчасти Case IH 6130 (90.118.AX[03]) - HAND RAILS - DECK, SERVICE, RIGHT HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87689356

RAIL ASSY.

1шт.

2

87638219

CAP

1шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

6

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

5шт.

7

87109887

CHAIN,807.32mm L

1шт.

8

87107072

CHAIN LINK,44.299mm Pitch

2шт.
