Запчасти Case IH 6130 (90.118.AC[04]) - OPERATORS LADDER, PLATFORM, FRONT, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

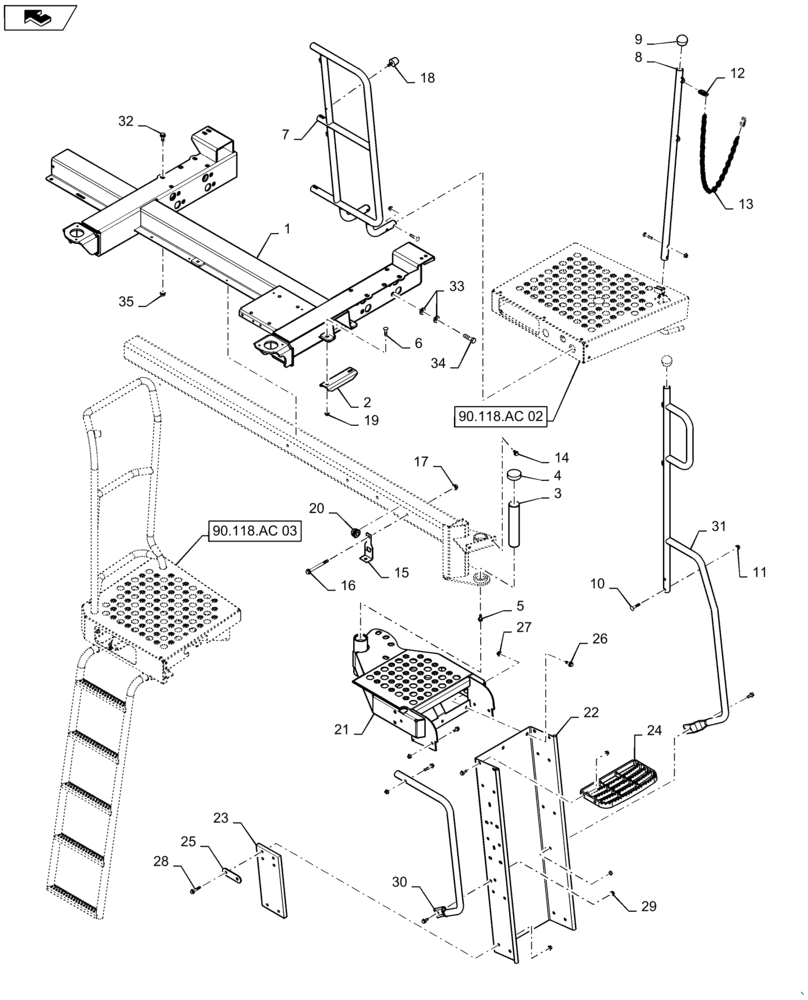

Схема запчастей Case IH 6130 - (90.118.AC[04]) - OPERATORS LADDER, PLATFORM, FRONT, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
24
27
17
31
5
90.118.ac 03
29
23
22
9
6
33
21
32
2
1
25
10
16
19
20
30
4
35
3
8
12
26
18
13
11
34
90.118.ac 02
7
14
28
15

Артикул

Название

Примечание

Количество

1

47400779

SUPPORT

Operators Ladder

1шт.

2

84512981

BRACKET

Platform Locking

3шт.

3

84275943

PIN,50.8mm OD x 244mm L

Ladder Retention

1шт.

4

324464A1

PLUG

Pivot Pin

1шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

6

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

6шт.

7

84562864

HANDRAIL

Base, LH

1шт.

8

84417818

HANDRAIL

Vertical Post/Release

1шт.

9

87109879

KNOB

Ladder Latch

2шт.

10

87682396

CARRIAGE BOLT,M10 x 1.5 x 50mm, Cl 10.9

Carriage, M10 x 50mm, 10.9

8шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

6шт.

12

87107072

CHAIN LINK,44.299mm Pitch

Chain Link

4шт.

13

87677048

CHAIN (AG)

Ladder Gate

2шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

15

84584837

BRACKET

LH Aftercut Light

1шт.

16

87742362

BOLT,M12 x 130mm, Cl 10.9

1шт.

17

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

18

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber, Door Stop

1шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

20

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

Harness Pass Thru

1шт.

21

84542962

PIVOT

Ladder

1шт.

22

84547503

CHANNEL

Ladder Steps

1шт.

23

47367655

HANGER

Bottom Step

2шт.

24

87301185

STEP

Aluminum

5шт.

25

87281588

PLATE

Hanger Support

4шт.

26

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

Flange, M10 x 25mm, Full Thread, 10.9

23шт.

27

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

28

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

9шт.

29

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

11шт.

30

84579582

HANDRAIL

LH Front

1шт.

31

47416650

HANDRAIL

LH Rear

1шт.

32

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

33

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

34

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.

35

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

Выбрано товаров: 35
